B. DISPOSING OF THE PRODUCT
In the EU this symbol indicates that this product should be disposed accordingly to the EU-WEEE legislation. Do not
dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain,
damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposal at least for free of charge. Pleasedispose any batteries according to the local
collection facilities.
C. INSTALLATION INSTRUCTIONS
The power supply cable is intended to be connected to the mains supply via a connection box which should be placed behind the appli-
ance, without a socket plug in between.
In a kitchen or bathroom, the connection box should be placed at least 25 cm from the floor.
In addition to the rules set out in this manual, the installation must comply with all current European, national and local standards.
Area 2
Area 1
60 cm
CAUTION
A means of disconnection should be installed in the fixed pipes in accordance with the standard rules of the country.
To ensure the safety of your installation, you must:
•
Place any objects (furniture, armchairs) at least 50 cm from the front of the appliance to allow air to circulate;
•
Position the bottom of the appliance at the recommended height (see diagram below);
•
Position a shelf at least 50 cm from the top of your radiator;
Mount the appliance to the wall using the screws provided. Most walls will also require to use drywall anchors (these are not provided in
the package) - make sure to select the correct dry wall anchors for your wall. Search for expertise/advise if in doubt.
500 mm
100 mm
250 mm
533 mm
250 mm
Once the appliance is attached, use a screwdriver to turn the safety pin until it is inserted into the tab and tighten the screw
4
44
CAUTION
When fitting a EPIH radiator in a bathroom these instructions have to be followed:
•
NEVER install the appliance in area 1.
•
NEVER install the appliance in area 2 if the user can have access to it from the shower or
bathtub.
•
NEVER install the appliance under a wall socket. The wall socket must be placed behind,
beside or below the radiator

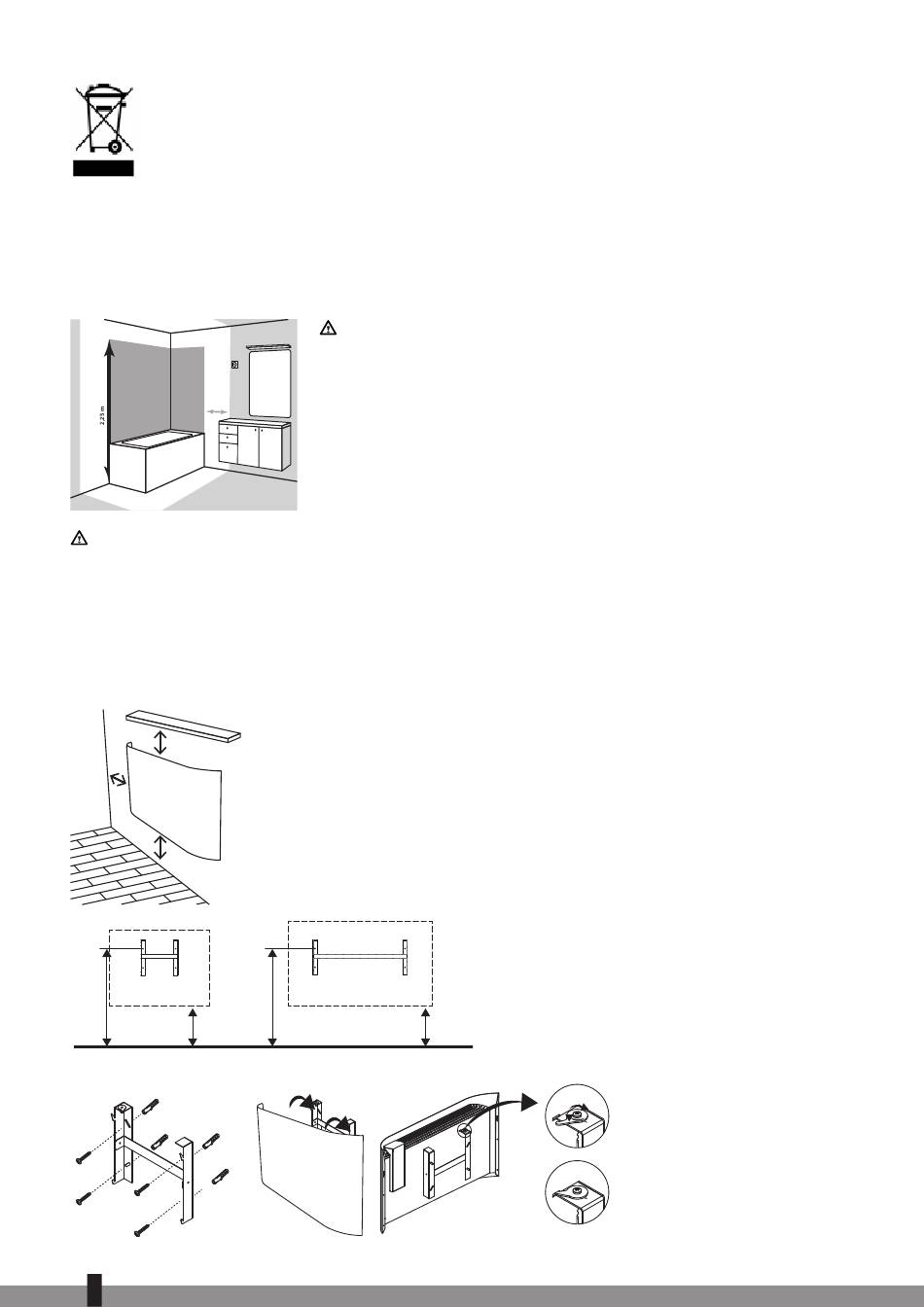

When mounting the appliance on the wall, please observe the minimum distances shown in the follow-
ing diagram:
Once you have chosen a location for the appliance, remove the radiator from its packaging. The radiator
is supplied with the wall bracket inserted. Using a screwdriver, turn the safety pin to release the wall
bracket.
Support the bracket on the wall using it as a template. Take care to keep it completely horizontal. The
following diagrams show an example of how to fix the bracket to the wall, depending on the chosen
distance from the floor (min. 250 mm).
533 mm
250 mm
