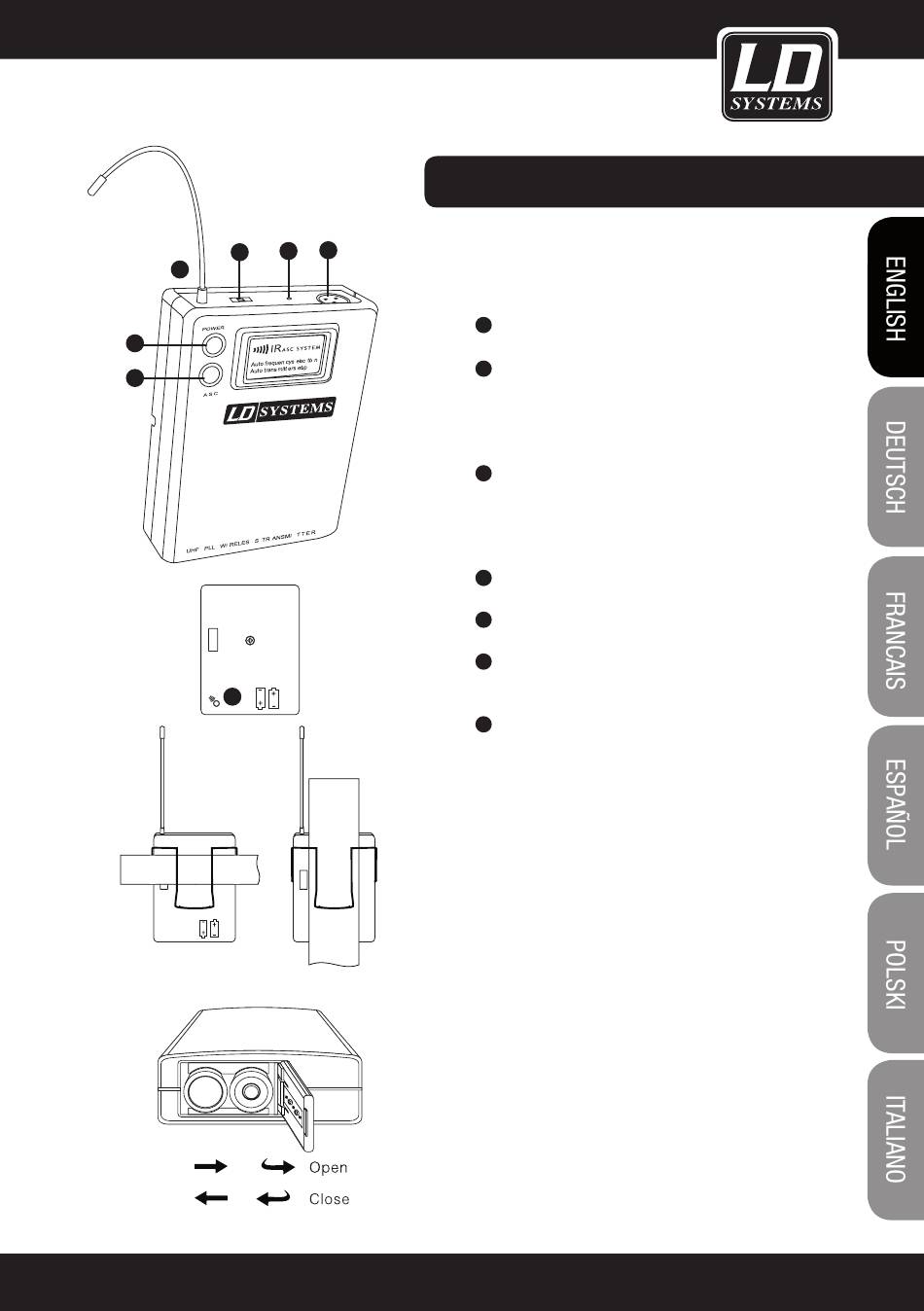

BELT PACK TRANSMITTER:
4
1 ANTENNA
GAIN SETTING
2
Mic: Microphone
0: guitar with passive pickups
-10 dB: guitar with active pickups
POWER-LED
3
Green: Operating
Red: Low Battery
Flashing red: the infrared transmission is active
MICROPHONE INPUT (MINI XLR)
4
POWER BUTTON (ON/OFF)
5
ASC BUTTON (ACTIVATE SYNC)
6
Frequency synchronisation via infrared
IR INTERFACE
7
HOW TO ATTACH THE BELT PACK TRANSMITTER
Attach the transmitter to a belt or strap. To ensure a
secure grip, slide the clip of the transmitter as far down
as possible on the belt or strap.
Guitarists have the option to slide the guitar strap
directly through the clip.
REPLACING THE BATTERIES
If the battery status indicator is flashing red, you should
replace the batteries immediately (see figure on the left).
Please insert 2 "AA" alkaline batteries (LR6, 1.5 V).
