SYSTEM SETTING AND OPERATION:
6
LOUDSPEAKER OUTPUT (WITH SWITCH)
You can connect an additional passive loudspeaker in
this output. When this output is used, the loudspeaker of
the Roadman 102 is automatically muted and the sound
is played exclusively from the passive loudspeaker
(Impedance min. 4 Ω).
7
LOUDSPEAKER OUTPUT (WITHOUT SWITCH)
You can connect an additional passive loudspeaker
in this output. When this output is used, the sound
comes from both the Roadman and the additional
passive external speaker (Impedance min. 8 Ω).
8
LINK OUTPUT
This output enables you to connect the Roadman
with another Roadman unit.

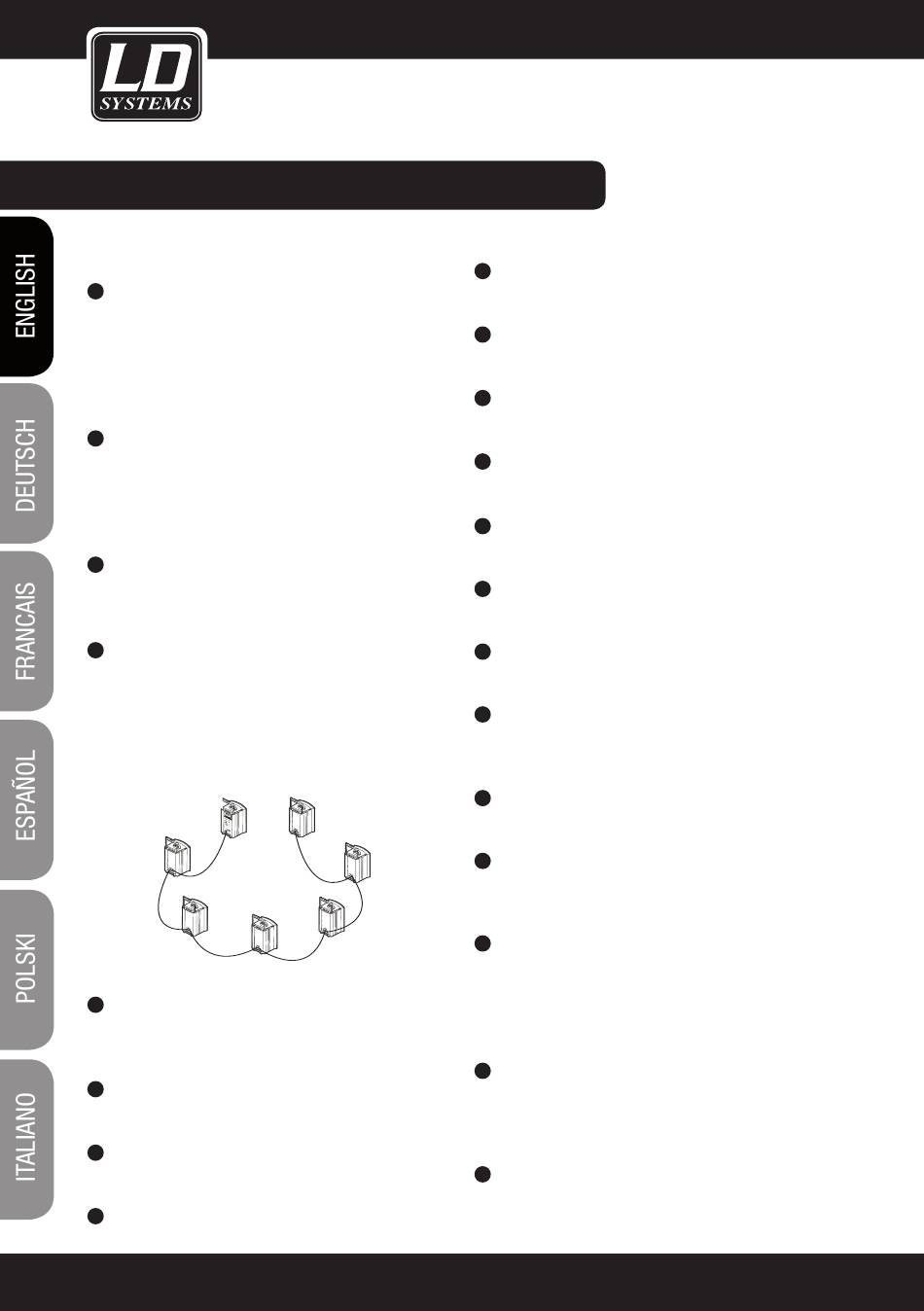

LINK OPERATION
9
MASTER/SLAVE: If you want to combine several
Roadman-units with each other (between 2 and
maximum 7), please observe the MASTER/SLAVE
settings. The first Roadman in the "chain" must be
in MASTER mode, the following units in SLAVE-
mode. The MASTER Roadman then controls all other
connected units (volume, On/Off etc. ).
10 VOLUME CONTROL
With this button, you can control the volume of the
SLAVE speakers.
11
RCA OUTPUTS
To connect a recording device.
12 RCA INPUTS
To connect a playback device.
13
MASTER
Master volume control of the system
12
14
TREBLE
The treble tone control (treble)
15
BASS
Tone controls for the bass range (low)
16 LINE
Volume control for the Line Input (12)
17
MIC 1
Volume control for microphone 1 (Input 20)
MIC 2
18
Volume control for microphone 2 (Input 22)
TAPE
19
No function
MIC/LINE
20
Microphone/Line Input 1 (XLR/Jack combo Jack)
SPEECH/MUSIC
21
SPEECH = MIC: Microphone level signals
MUSIC = LINE: Line-level signals
MIC/LINE
22
Microphone/Line Input 2 (XLR/Jack combo Jack)
SPEECH/MUSIC
23
SPEECH = MIC: Microphone level signals
MUSIC = LINE: Line-level signals
24
LINK
This output enables you to connect the Roadman
with another Roadman unit. Connect the LINK input
of the SLAVE Roadman with the LINK output of the
MASTER Roadman.
CHARGING/LOW BATT
25
LED Indicator: Low battery charge (red), battery
charging (flashing green), battery fully charged
(static green)
26
POWER LED
Lights up red when the system is in operation
(turned on).
