EN

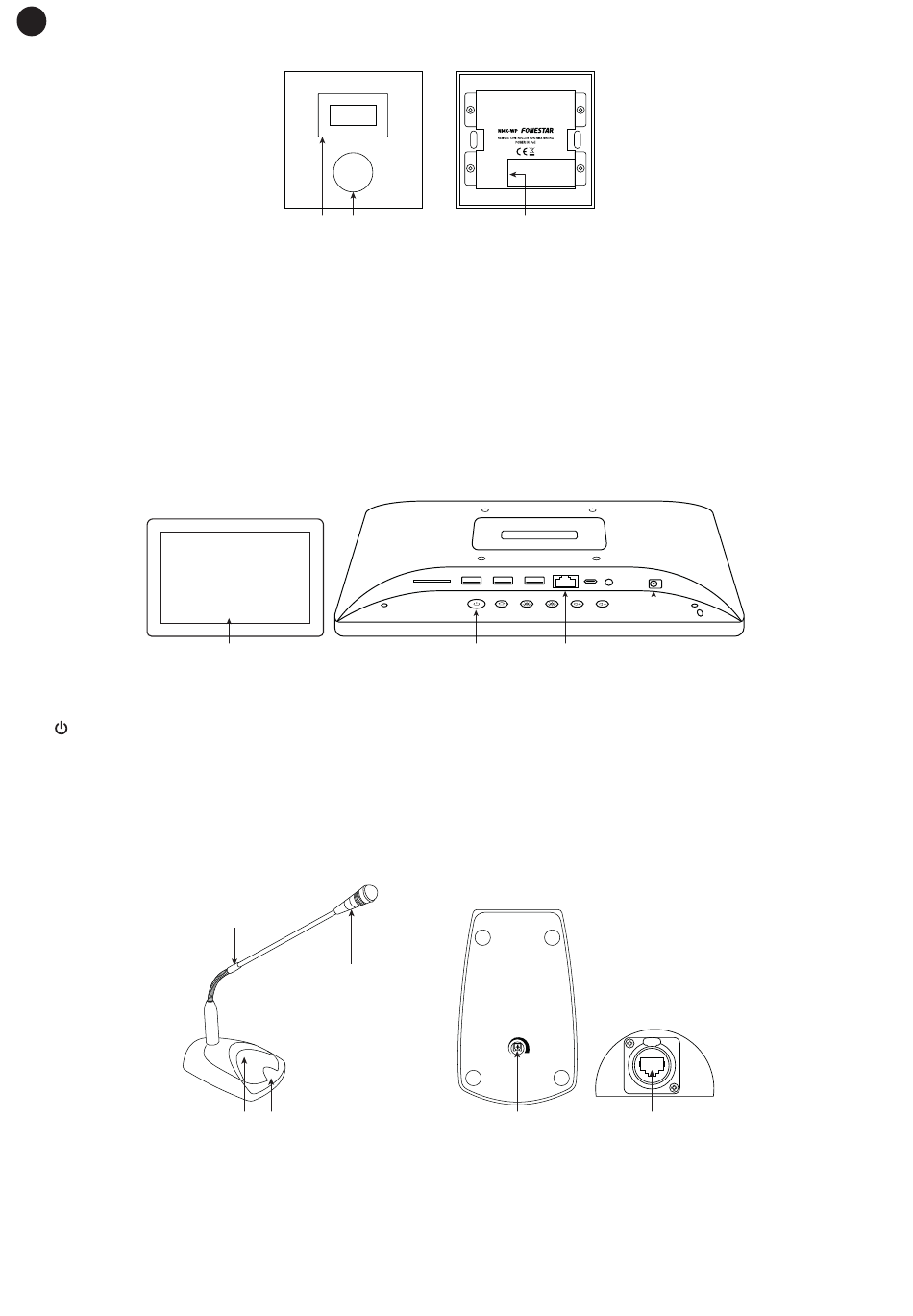

NMX-WP
1.- Information display.
2.- Rotary control and push button for navigation and selection of the options presented on the display.
The default display will show the name and IP address of the panel, turn the control to access the menu.
Turn the control knob to scroll through the various menu options and press the control knob to select
or enter edit mode. In edit mode the display will pause, turn the knob to edit the value and press again
to validate the option. The menu settings shown in this panel are software configurable. For further
information please refer to the SOFTWARE manual.
3.- 10/100 Base-T Ethernet port for LAN data communication between the various devices and the control
software, plus PoE power supply. RJ-45 connector.
TAB-10-16
1.- Software-configurable information display. For further information, please refer to the CONTROL APP
section.
2.-
: Tablet on/off button.
3.- LAN: 10/100/1000 Base-T Ethernet port for LAN data communication between the individual devices
and the control software, plus PoE power supply. RJ-45 connector.
4.- Input for 12 V, 1.5 A power adapter. Optional as this Tablet is powered by PoE through the data cable
connected to the LAN port.
MCMD-2
1.- Microphone.
2.- Operation indicator light.
3.- Microphone attenuation activation/deactivation button.
4.- Microphone gain selector.
5.- 10/100/1000 Base-T Ethernet port for LAN data communication between the various devices and the
control software, plus PoE power supply. RJ-45 connector.
1
2
1
1
2
2
3
3
USB
USB
LAN
Serial port
OTG
SD Card
2
3
4
- 4 -
DC in
4
PUSH
5
