Dea MAC Notice D'emploi Et Avertissements page 8

MAC / STING
ENC
M2
ENC
M1
Fuse F1
T 1A L 250V
T 2A L 250V
T 2A L 250V
T 2A L 250V
T 3,15A L 250V *
* Only for IRONBOX versions or for STOP/N barriers
equipped with a boom length of ≥6m.
7
8
10
11
B = Blue
R = Red
26

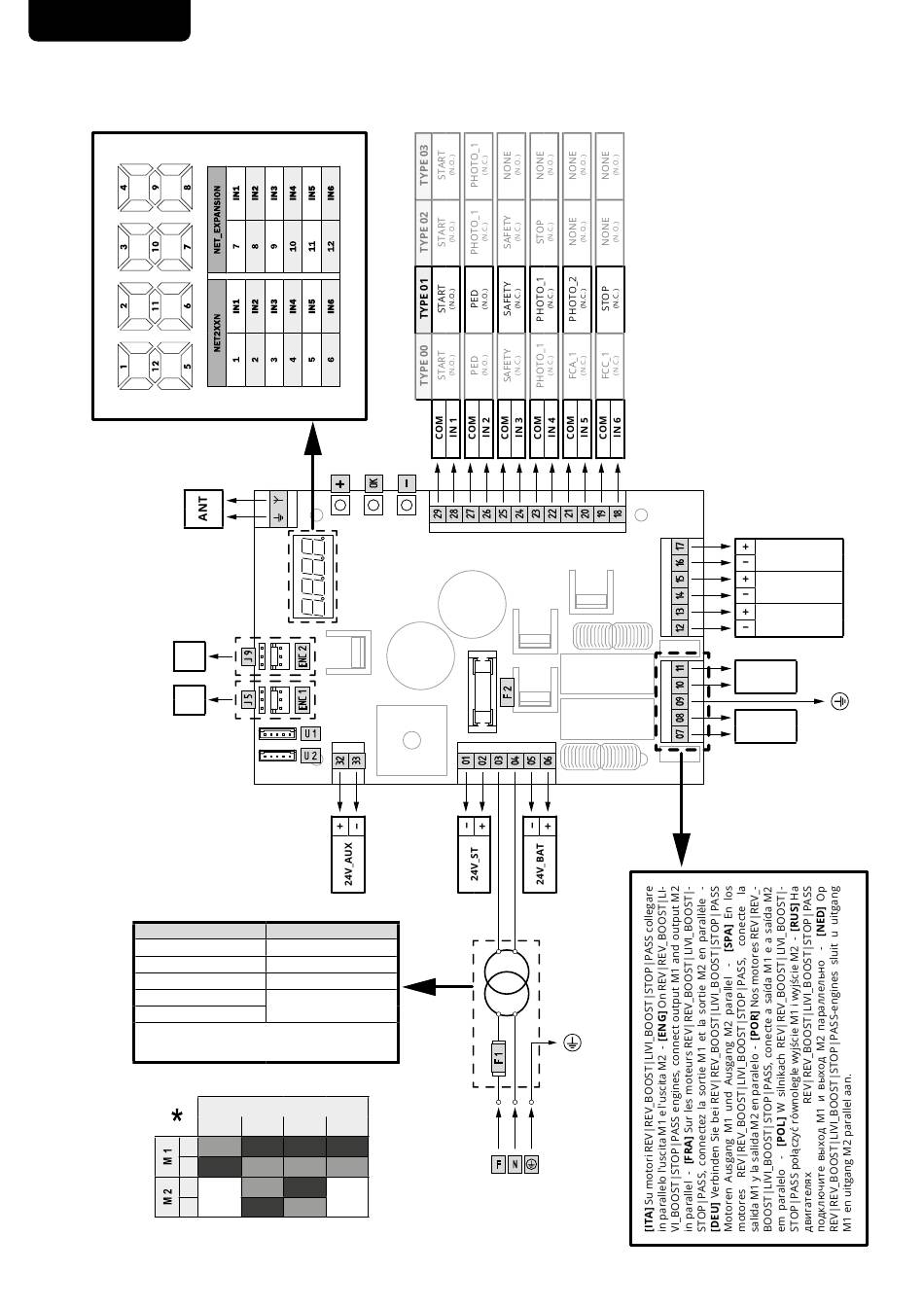

SCHÉMA ÉLECTRIQUE
U 1
U 2
Trasformer
80 VA (230V/22V)
120 VA (230V/22V)
150 VA (230V/22V)
250 VA (230V/22V)
TYPE
00 01 02 03
B R R R
R B B B
B R
/ /
R B
NET 24N
F N
POWER SUPPLY
230-240V~ 50/60Hz
H05VV-F 3x0,75mm
2
FLASH_FIX
ELOCK_M1
WARN_FIX
MOTOR
M2 *
MOTOR
M1 *
