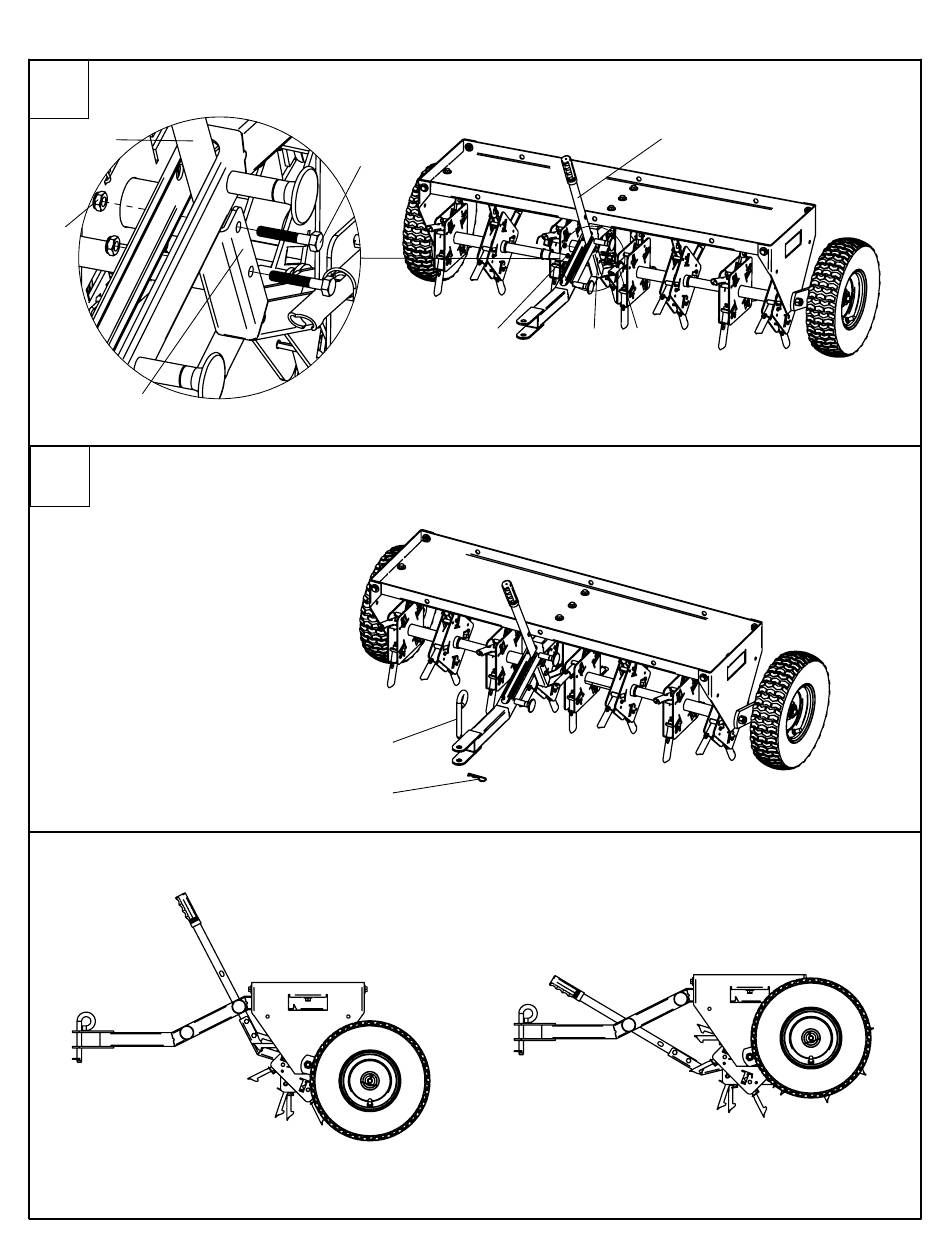

Insert Hex Bolts (28) through bracket on Axle (7) and Handle (12). Secure with Hex Nuts
13
(29). Lock Adjustment Handle in place with Spring Loaded Pin (3).
12
29
7
Hardware: (2x) 1/4"-20 x 1-1/2" Hex Bolt, (2x) 1/4"20 x 1-3/16" Hexnut
14
Install Hitch Pin (30) and secure with Cotter Pin (31).
Hardware: (1x) Hitchpin 1/2" x 3", (1x) 3/32" x2-5/16" Hairpin Cotter
MODES:
TRANSPORT
Assembly Instructions
28
30
31
29
7
28
Suggested Tools: 7/16" Wrench and Socket
8
12
ENGAGED
