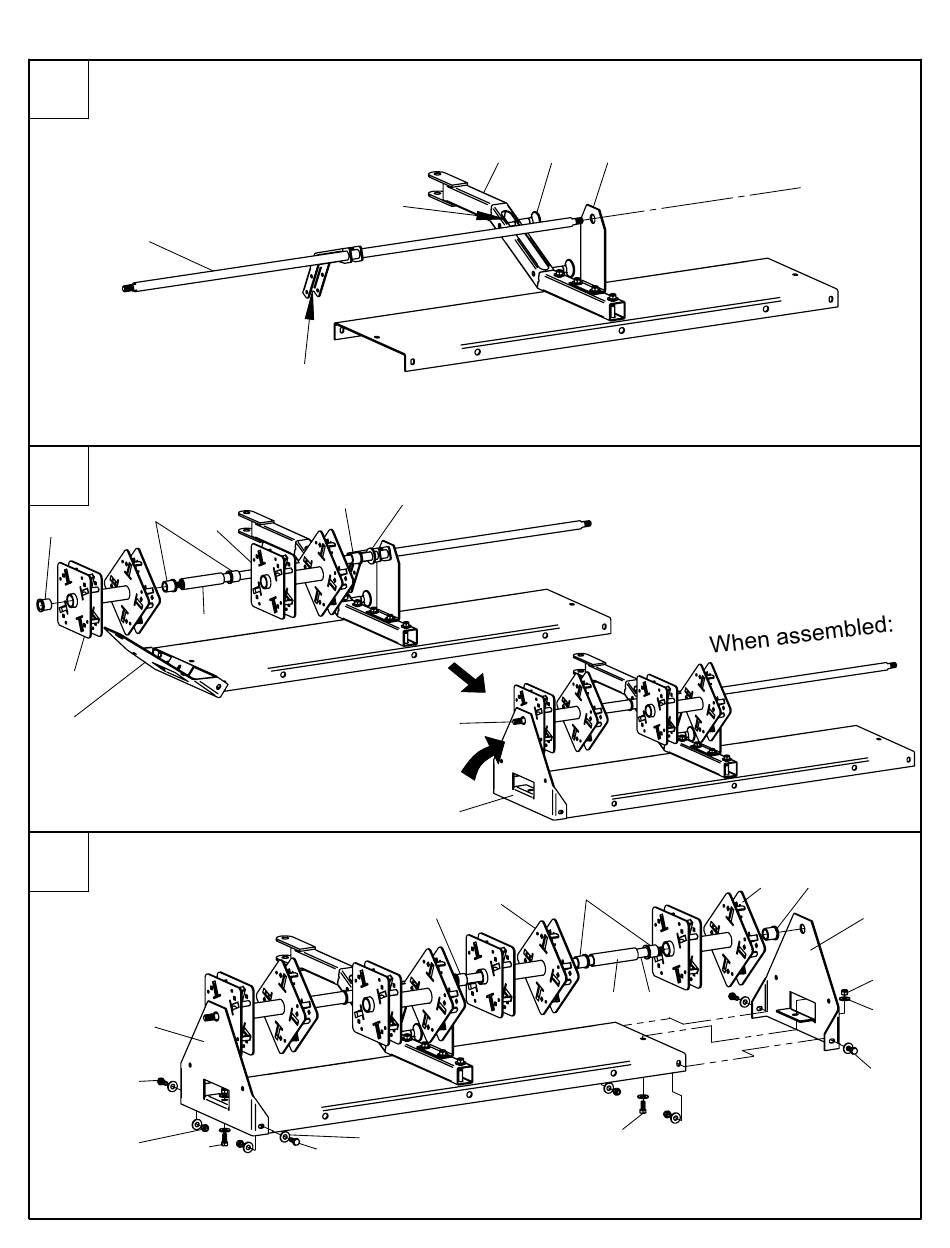

Slide Axle (7) through Center Support (6) from side opposite knobs (5) on Drawbar (2). Note
4
that Axle Connector welded to axle (7) must be centered with hole in Drawbar Tube (2) for
alignment with Adjustment Handle in later step.
7
Axle Connector
Slide Washer (24), Bushings (22), Spools (8), and Spacer (23) onto Axle (7) as shown
5
(Figure C). Then push Side Plate (9) over Axle (7) to hold in place (Figure D).
22
8
22
23
8
9
Slide remaining Bushings (22), Spools (8), and Spacer (23) onto empty Axle (7). Then push
6
remaining Side Plate (9) over Axle (7). Install Hardware (19, 20, 21) on both Side Plates(9).
9
19
20
19
Hardware: (6x) 5/16"-18 x 3/4" Hex Bolt, (12x) 5/16" USS
Washer, (6x) 5/16"-18 Nyloc Hex Nut
Assembly Instructions
Hole in Drawbar
24
22
Figure C
22
19 21
2
6
5
7
9
22
8
23
19
Suggested Tools: 1/2" Wrench and 1/2" Socket
5
Figure D
8
22
7
9
20
21
19
