10

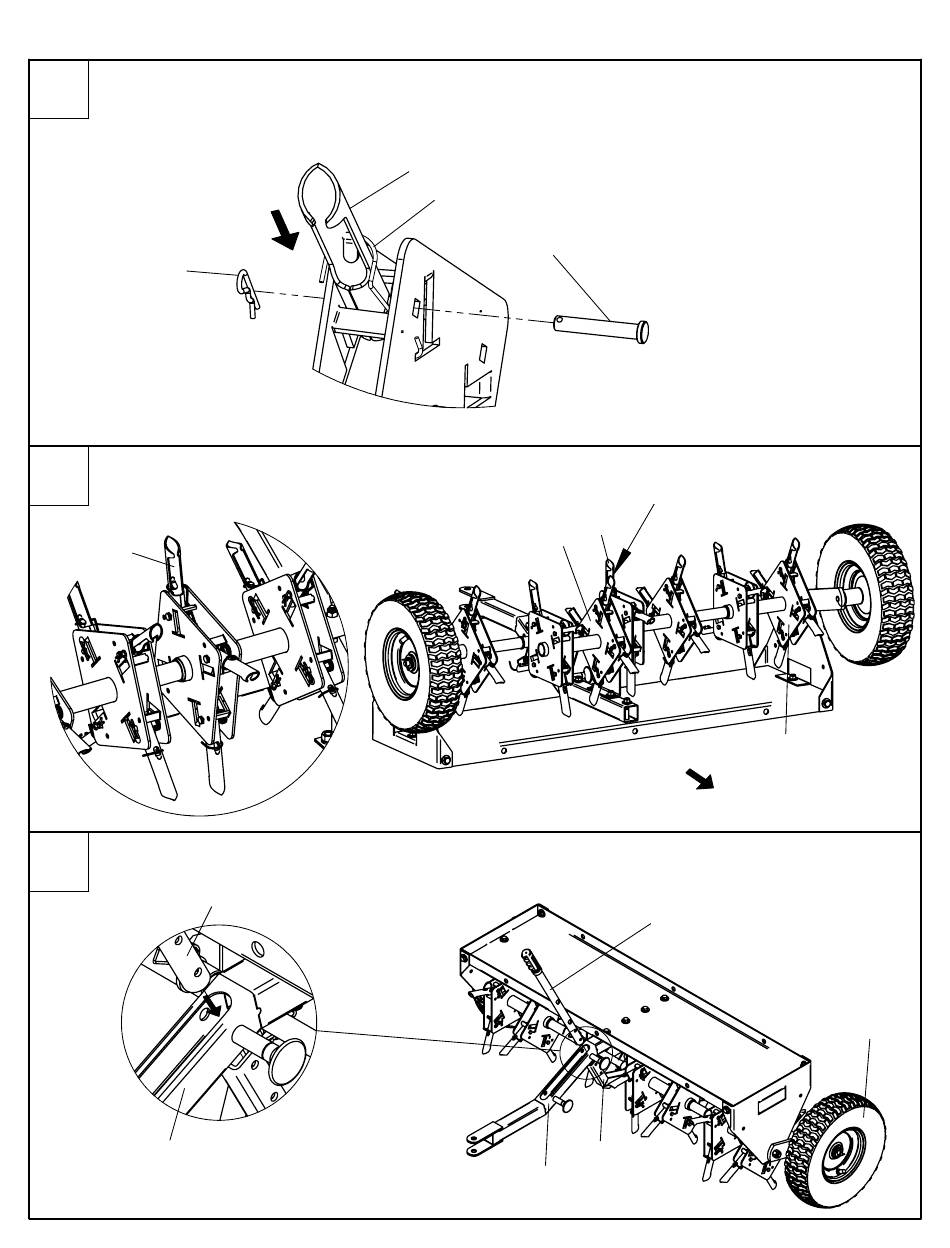

Slide the Tine (15) into the Tine Spring (14). Secure with pin (16) and Hairpin Cotter (17)
as shown.
17
Hardware: (1x) 1/4" x 1-1/2" Clevis Pin, (1x) 5/64" x 1-3/16" Hairpin Cotter
Rotate each Spool (8) and repeat install process from step 10 for remaining tines. Verify that
11
all 32 Tines (15) open faces are pointed in the same direction as shown.
15
12
Flip Aerator onto wheels (11), Slide Handle (12) through slot in Drawbar (2) and align
holes in Handle (12) with holes in bracket on Axle (7).
2
Assembly Instructions
12
15
14
16
15
8
7
2
7
Open Face to rear
of aerator
8
12
11
