Toro Flex-Force Power System 51824 Manuel D'opérateur page 12

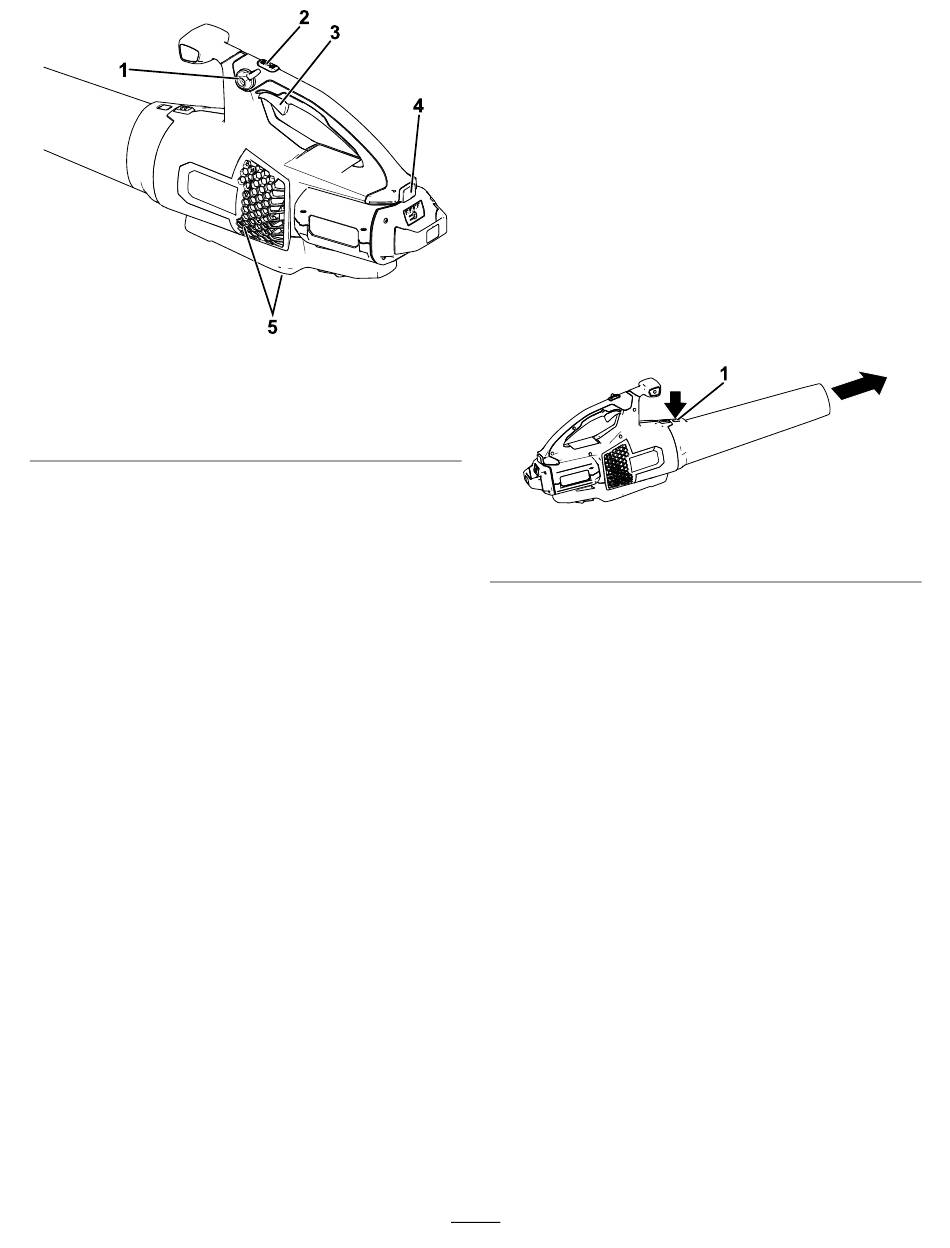

1. Speed lock
2. Turbo boost button
3. Variable-speed trigger
Adjusting the Air Speed of
the Blower
To achieve maximum performance (air speed), fully
depress the variable-speed trigger, then press and
hold the turbo boost button for the desired amount of
time (Figure 7).
To adjust the air speed as you blow, use the
variable-speed trigger
To maintain the current air speed, engage the speed
lock (Figure 7).
Figure 7
4. Battery latch
5. Blower venting areas
(Figure 7).
Shutting Off the Blower
To shut off the blower, disengage the speed lock (if in
use) and release the variable-speed trigger
Important:
After stopping the blower, do not
leave the speed lock engaged with the battery
pack in the blower.
Whenever you are not using the blower or are
transporting the blower to or from the work area,
remove the battery pack.
Removing the Blower Tube
Press down on the tube latch to separate the blower
tube from the blower
g267241
1. Tube latch
10
(Figure
(Figure 8).
Figure 8
7).
g273159
