SHORT DESCRIPTION OF THE FRONT PANEL
5.1 DISPLAY

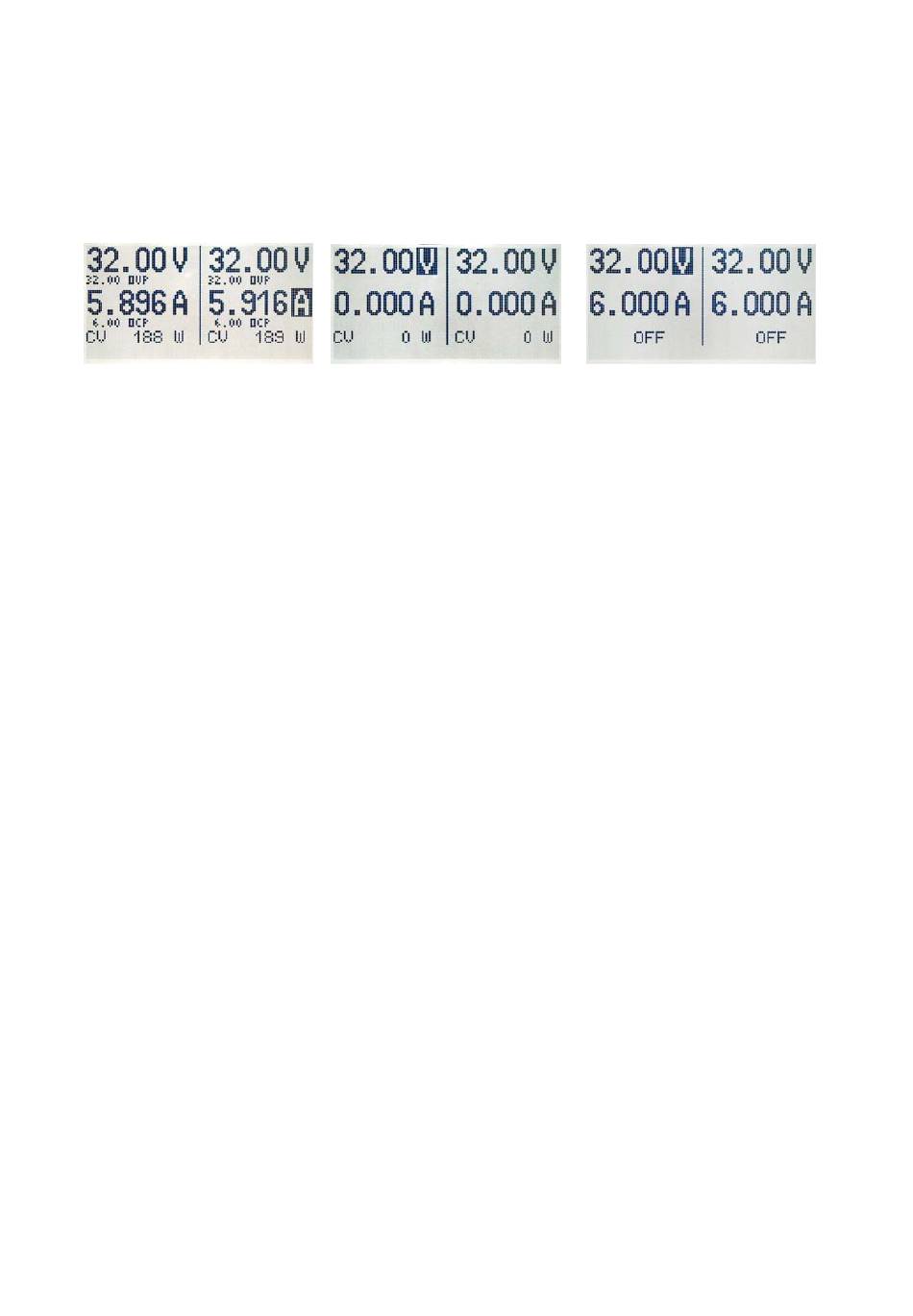

The basic mode on the LCD display (1) shows the value of the voltage and current setting about
two channels ; the output's powerful, the currently regulation mode (CV or CC) and the output's
state (ON or OFF). If the OVP and OCP stopped are less than the maximum setting (32V and
6A) they will be displayed.
The measurement (voltage or current) is displayed instead of the set, if different. Simply touch
on V or A selection keys, displays the operator instructions.
5.2
KEYPAD AND SHIFT
The keypad (2) allows directly modifying the set values U and I getting access to secondary functions.
5.3
CHANNEL SELECTION
The keypad (3) allows choosing de channel to set. ''V'' or ''A'' selected indicates the channel you
choose and you can set.
5.4
KEYS CONTROL
The keys (4) allows the selection of the set to change and the selection of the dual function keyboard
with shift.
5.5
STANDBY MODE
Combined with the function ''2nd'' the keypad (5) allows to enabled or disabled standby mode
(consumption < 2.5W).
5.6
ON/OFF: CHANNEL 1 OR CHANNEL 2
The keypad (6) and (8) allow enable or disable channels 1 and 2. The keypad (7) allow enable or
disable both channels.
5.7
SLIDER AND ARROWS SETTING
Slider and arrows (7) allows a direct change to the set value U and I or navigate through the secondary
functions menu.
5.8
SOUND SIGNAL
Short signal low frequency
Short signal medium frequency
Long signal high frequency
5.9
SAFETY SOCKETS CHANNEL 1 & CHANNEL 2
The sockets (9 and 11) (safety sockets Ø4mm) allow the connection to the outputs + and – of the
channels 1 and channel 2 to the load.
5.10 EARTH FUNCTIONNAL SOCKETS
The sockets (10) (safety socket Ø4mm ) & socket (22) (safety and inversed socket Ø4mm ) allow a
functional connection to the earth.
4000 4 360_09/22
: keypad detect [0] to [9].
: keypad detect function ([V], [A], [OK], ...)
Input value error or safety detect.
23
