EN

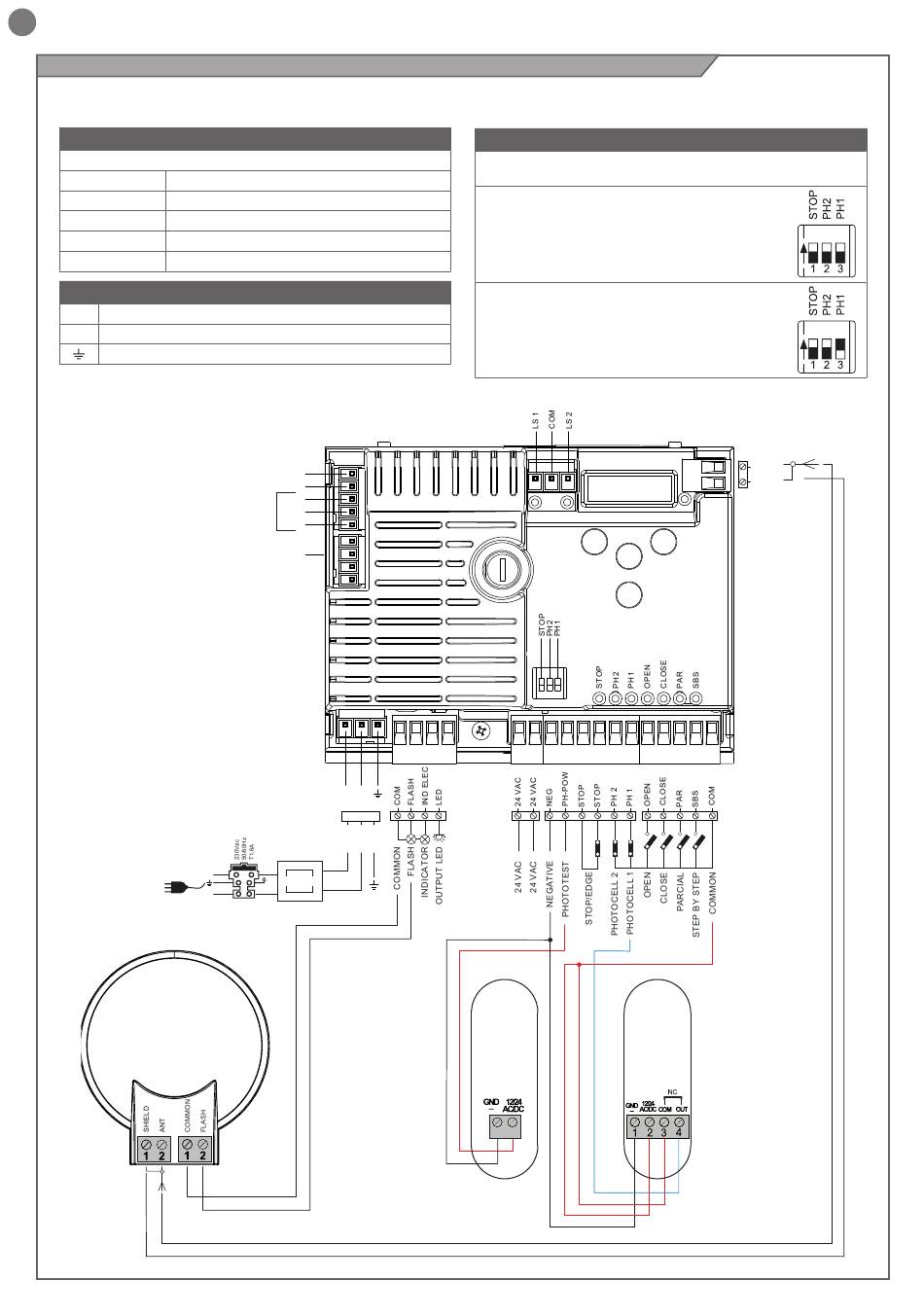

4.6 - Electrical connections

ATTENTION - Before making the connections, ensure that the control unit is not powered up.
MOTOR CONNECTOR
Power supply connection terminal board
M + Power supply motor
M - Power supply motor
V + DO NOT USE
ENC DO NOT USE
DO NOT USE
NEG
POWER SUPPLY CONNECTOR
L Power supply live 230 Vac (120 Vac) 50-60 Hz
N Power supply neutral 230 Vac (120 Vac) 50-60 Hz
Earth
28
M +
M -
DO NOT USE
V +
DO NOT USE ENC
DO NOT USE NEG
BATTERY
POWER
SUPPLY
POWER
SUPPLY
L
N
DIP SWITCH
Set on "ON" to disable inputs STOP, PH1, PH2
Eliminates the need to bridge the terminal board inputs.
WARNING - With the dip switch ON, the
safety devices are disabled
EXAMPLE: With only 1 photocell
connected set STOP and PH2 to ON
MENU
UP DOWN
(RADIO)
SBS
PH1 PH1
TX RX
1 2
ON
OFF
ON
OFF
ANT
SHIELD
KEY
