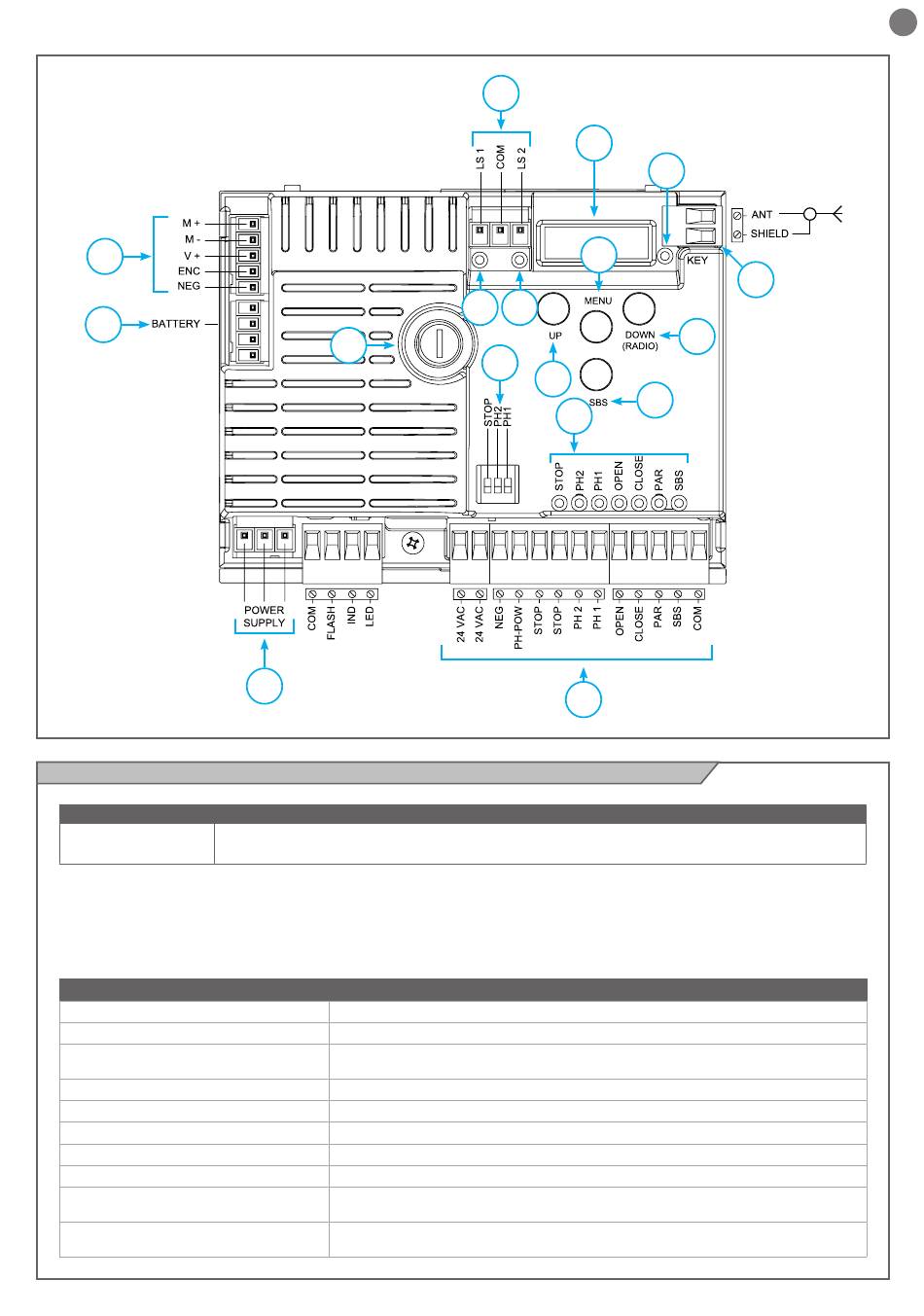

2.5 - Control Unit models and technical characteristics
Code Description
CE24CNC 24V control unit for sliding gates, up-and-over doors or electromechanical barrier
• Power supply with protection against short-circuits inside the
control unit, on motors and on the connected accessories.
• Obstacle detection.
• Automatic learning of working times.
• Safety device deactivation by means of dip switches: there

TECHNICAL SPECIFICATIONS

Power supply (L-N)
Max motor load
Output for Vac accessories power
Device test power Vdc
Courtesy light output
Flashing light output
Pause time
Operating temperature
230 Vac power supply line fuses
Max. number of transmitters storage FIX
CODE
Max. number of transmitters storage ROL-
LING CODE
8
2
5
6
14
10 11
7
13
9
3
is no need to bridge the terminals of safety devices which are
not installed - the function is simply disabled by means of a dip
switch.
CE24CNC
230 Vac (+10% - 15%) 50-60 Hz
150 W
24 Vac without regulation 200 mA
24 Vdc without regulation 250 mA
24 Vdc 25 W
24 Vdc 25 W
Adjustable 0-900 sec.
-20 °C + 55 °C
1.6 A slow-acting
150 transmitters
150 transmitters
17
16
15
12
