VEVOR CY-SF14 Mode D'emploi

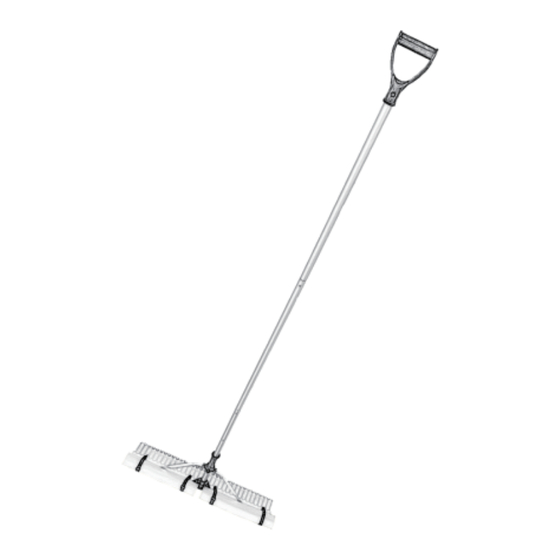

Asphalt Rake
TOUGH TOOLS, HALF PRICE
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating.
VEVOR reserves clear interpretation of our user manual. The appearance of the product shall
be subject to the product you received. Please forgive us that we won't inform you again if
there is any technology or software updates on our product.
01
Important Information:
Please read these instructions thoroughly before use.
Failure to follow instructions may result in equipment
damage, malfunction, or even injury or death to person-
nel.
Warning
• The Rake is designed for cutting submerged, partially
emergent, or emergent aquatic vegetation from under-
water. Any other use is strictly prohibited. Before using
the Rake, please read this manual carefully tounder-
stand the proper use of the unit.
• The Rake teeth have sharp edges.
SAFETY FIRST:
Keep out of reach of children.
Do not use it with children in the immediate area.
IMPORTANT: We are not responsible for equipment
damage or failure, losses, injury, or death resulting from
failure to follow safety precautions, misuse, or abuse of
equipment.
PRODUCT CONTENTS:
No. Name Q'TY
Rake Head
1 1
with Handle
2 Middle Pole 1
Handle/Black
3 1
End Cap
4 Rope
1
5
Floats 2
6
Velcro Straps 4
02
Assembly & Instructions
Step 1
Handle Assembly: Press the spring-loaded buttons
on one end of the handle connector and slide it halfway
into one of the handles and rotate it until the buttons
snap into the holes in the handle.
Repeat this process for the other half of the handle.
Step 2
To expand the rake head, press down on the
spring loaded buttons and push forward until fully
open, and springs lock into place.
Step 3
Flotation devices are most effective when the two
outermost velcro straps are attached to the two
outer teeth of the rake head.
03
