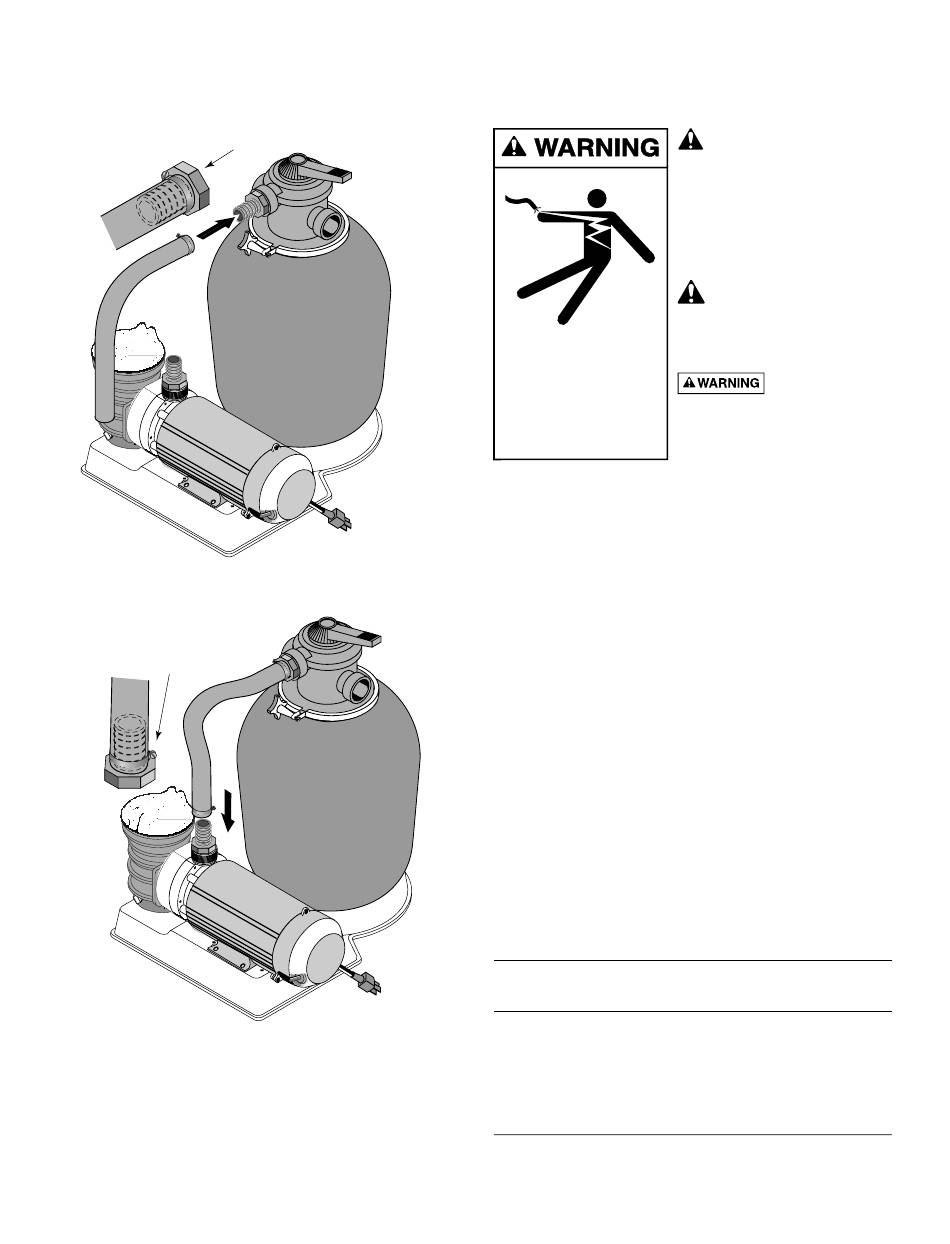

Butt hose against ring;
tighten clamp on shank
(not ridges).
Figure 10
Butt hose against ring;
tighten clamp on shank
(not ridges).
Figure 11
All manuals and user guides at all-guides.com
3117 1197
3118 1197
8
ELECTRICAL
grounded, GFCI-protected 115
Volt circuit only. Incorrect volt-
age can cause fire or seriously
damage motor and voids war-
ranty. Protect cord from water
and physical damage.
trips and will not reset, have a
qualified electrician inspect and
Hazardous voltage.
repair electrical system.
Can shock, burn,
or cause death.
shock. Unplug motor before
Disconnect power
servicing or repairing pump or
before working
motor.
on pump or motor.
Wiring:
Install a Ground Fault Circuit Interrupter (GFCI) in cir-
cuit; it will sense a short-circuit to ground and discon-
nect power before it becomes dangerous to pool users.
For size of GFCI required and test procedures for GFCI,
see manufacturer's instruction.
In case of power outage, check GFCI for tripping (which
will prevent normal water circulation). Reset if necessary.
Match circuit breaker size to Table III below.
• Do not modify cord, plug, or receptacle. If an existing
circuit must be used and the receptacle and plug do
not match exactly, consult a licensed electrician.
• Do not use an extension or drop cord with this system;
it could cause a fire hazard or low voltage problems.
Wet cords cause shock hazards. Extension cords can
easily become cut or frayed and dangerous when
placed across yard areas or walkways.
Voltage:
Voltage at motor must be not more than 10% above or
below motor nameplate rated voltage or motor may
overheat, causing overload tripping and reduced compo-
nent life. If voltage is less than 90% or more than 110%
of rated voltage when motor is running at full load, con-
sult power company.
Table III–Recommended Fusing Data, 115 Volt 60 Hz Motors.
Pump
Model No.
AT2407121, AT2407122
AT2410121, AT2411121
AT2410122, AT2411122
AT2407111/AT2407131
AT2410111/AT2410131
AT2024SPL/AT2411131
AT2608610
AT241501/AT241503
NOTICE Values given are for pump motor only. Do not put any
other accessories on this circuit.
Risk of electrical shock.
Plug pump into a
GFCI tripping indicates an
electrical problem. If GFCI
Risk of electrical
Branch
Full Load
Circuit Breaker
Amps
Rating (Amps)
9.4
15
11.9
15
11.9
15
9.0
15
12.0
15
12.0
15
9.2
15
16.0
20
