Key Part
No. Description
1
Pump (System Model Nos. ending in 1 or 2)
1
Pump (System Model Nos. ending in 0, 3, 4, 5 or 6)
2
Hose Barb
3
Hose Clamp
4
Hose Assembly
5
Hose Adapter
6
Multiport Valve* (Includes Key Nos. 8, and 9)
7
Sight Glass (not included with Models ending in 1)
8
O-Ring, Tank Flange
9
V-Clamp with Knob
10
Pedestal Platform
11
Drain Cap
12
O-Ring, Drain Cap
13
Drain Lateral Tube
14
O-Ring, Lateral Tube
15
Lateral Tube
16
Collector Hub Assembly
17
Tank Assembly
18
Clamp Knob
19
Filter Tank Assembly (Includes Key Nos. 8 thru 15)
20
Washer 1/4"
21
Screw 1/4-20x3/4" Lg.
•
Hose, 1-1/2" x 6' Lg.
•
Sand Shield
•
Nameplate Decal
•
Clamp Decal, Warning
•
Information Decal
• Not illustrated.
*See Page 17.
All manuals and user guides at all-guides.com
5
2
3
4
3
2
11

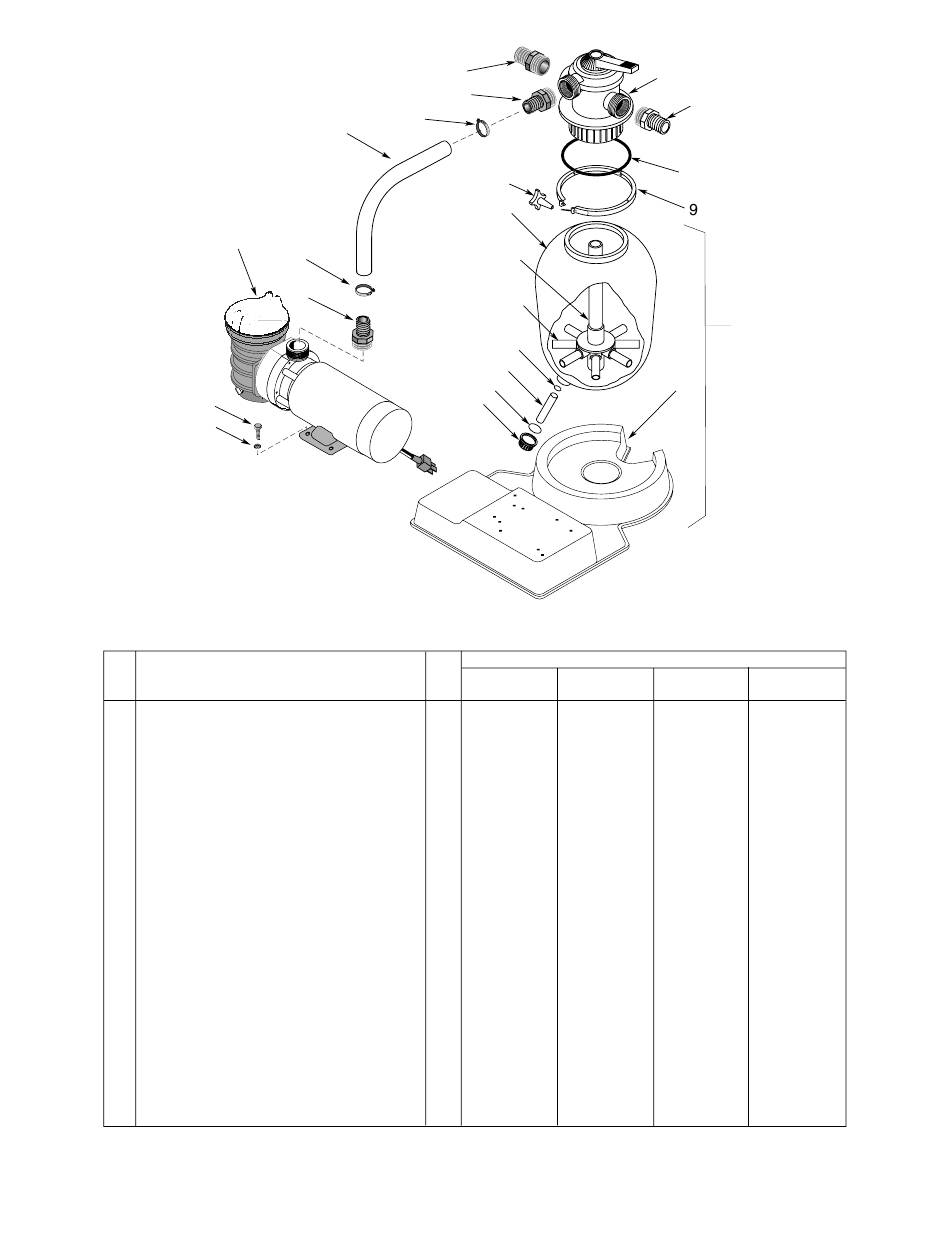

Repair Parts List - Filter
No.
Used
1
1
2
2
1
2
1
1
1
1
1
1
1
1
1
8
1
1
1
1
2
2
2
1
1
1
1
14
18
17
16
15
14
13
12
1277 0994 AT
MODELS
Series AT115
Series AT118
15" Filter
18" Filter
See Page 16
See Page 16
See Page 15
See Page 15
U78-767P
U78-767P
P19-29
P19-29
80879-2041
80879-2301
11201-0002
11201-0002
WC112-148A
WC112-148A
14962-0012
14962-0012
U9-369
U9-369
WC119-87A
WC119-87A
24201-0055P
24201-0055P
14965-0025
14965-0025
U9-371
U9-371
24201-0058
24201-0058
U9-370
U9-370
24600-0003
24600-0003
24200-0110
WC137-516P
24200-0101
24201-0101
WC36-22
WC36-22
24200-9100S
24201-9100S
U43-60SS
U43-60SS
U30-52SS
U30-52SS
34055-7038
34055-7038
24201-0043
24201-0043
32155-4114A
32155-4114B
32165-4030
32165-4030
32155-4112
32155-4112
6
7
8
19
10
Series AT120
Series AT215
20" Filter
15" Filter
See Page 16
See Page 16
See Page 15
–
U78-767P
U78-767P
P19-29
P19-29
80879-2501
80879-2141
11201-0002
11201-0002
WC112-148A WC112-148A
14962-0012
14962-0012
U9-369
U9-369
WC119-87A
WC119-87A
24201-0055P
24201-0055P
14965-0025
14965-0025
U9-371
U9-371
24201-0058
24201-0058
U9-370
U9-370
24600-0003
24600-0003
WC137-517P
24200-0110
24203-0101
24200-0101
WC36-22
WC36-22
24203-9100S
24200-9100S
U43-60SS
U43-60SS
U30-52SS
U30-52SS
34055-7038
34055-7038
24201-0043
24201-0043
32155-4114C 32155-4114A
32165-4030
32165-4030
32155-4112
32155-4112
