10. Complete all plumbing connections (see Page 5 for
piping requirements).
A. Pipe from valve RETURN port to pool return.
B. Pipe from valve WASTE port to waste.
C. Suction piping from pool to trap inlet on pump.
11. System is ready for startup.
NOTICE: If there are leaks from beneath valve/clamp
area, STOP PUMP, release all pressure, remove clamp
and valve and clean sealing surfaces.
Follow directions under "Valve Installation", Page 6,
when reinstalling valve. See Figures 6 and 7.

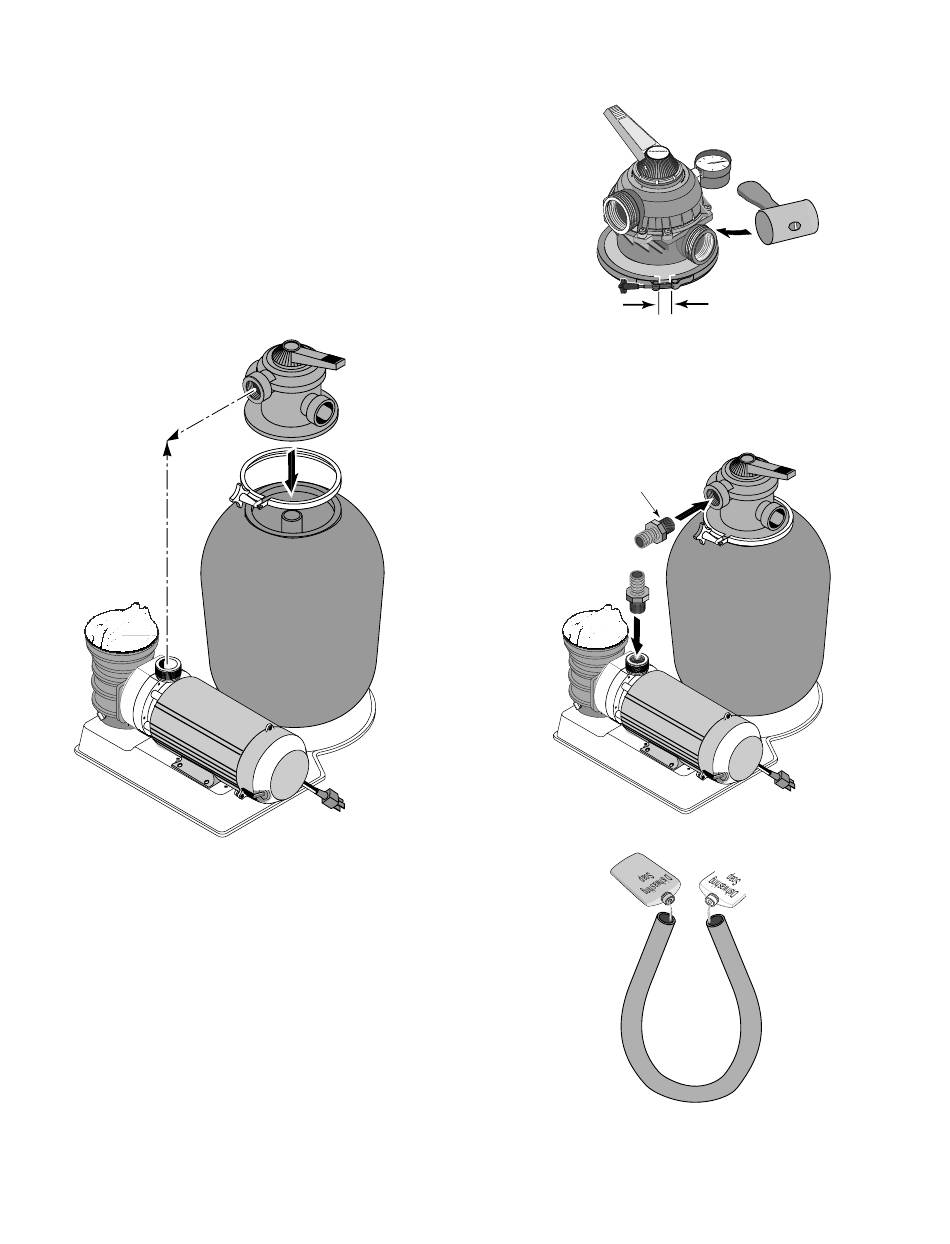

Align
Ports
Figure 6
All manuals and user guides at all-guides.com
3114 1197
7
Port labeled "PUMP"
should align with pump
discharge port.
.WATERFORD, WI.
53185
USA
1/4" Max.
Install clamp
and tighten
until clamp
ends (under
bolt) are 1/4"
apart.
Figure 7
Tape Threads with
teflon tape
Figure 8
Figure 9
3119 1197
Tap around
clamp while
tightening to
help seat
clamp.
If unable to
close gap
to 1/4" or less,
wait 15-30
minutes and
retighten.
3115 1197
3116 1197
