A Power Button
Press once to turn on. Press and hold for three
seconds to turn off. Button will glow blue if unit is
connected to a power source.
B "P" Set Button
Use this button when the Controller Knob is set to
the lowest temperature setting. The "P" Setting
directly controls the cycle rate of the auger feeding
pellets to the burn pot.
C
Controller Knob
Increase or decrease the temperature value. Push to
activate a value change, rotate to select value, then
push again to select/accept new value.
D Prime Button
Press and hold to activate an extra feed of pellets to
the burn pot.
E
Meat Probe Connection Ports
Plug-in the adapter end of a meat probe to a con-
nection port. The readout will appear on the display
screen for the corresponding meat probe selected.
F
TARGET Temperature
Displays the desired target temperature. This is the
temperature that is selected by turning the Controller
Knob.
WWW.PITBOSS-GRILLS.COM

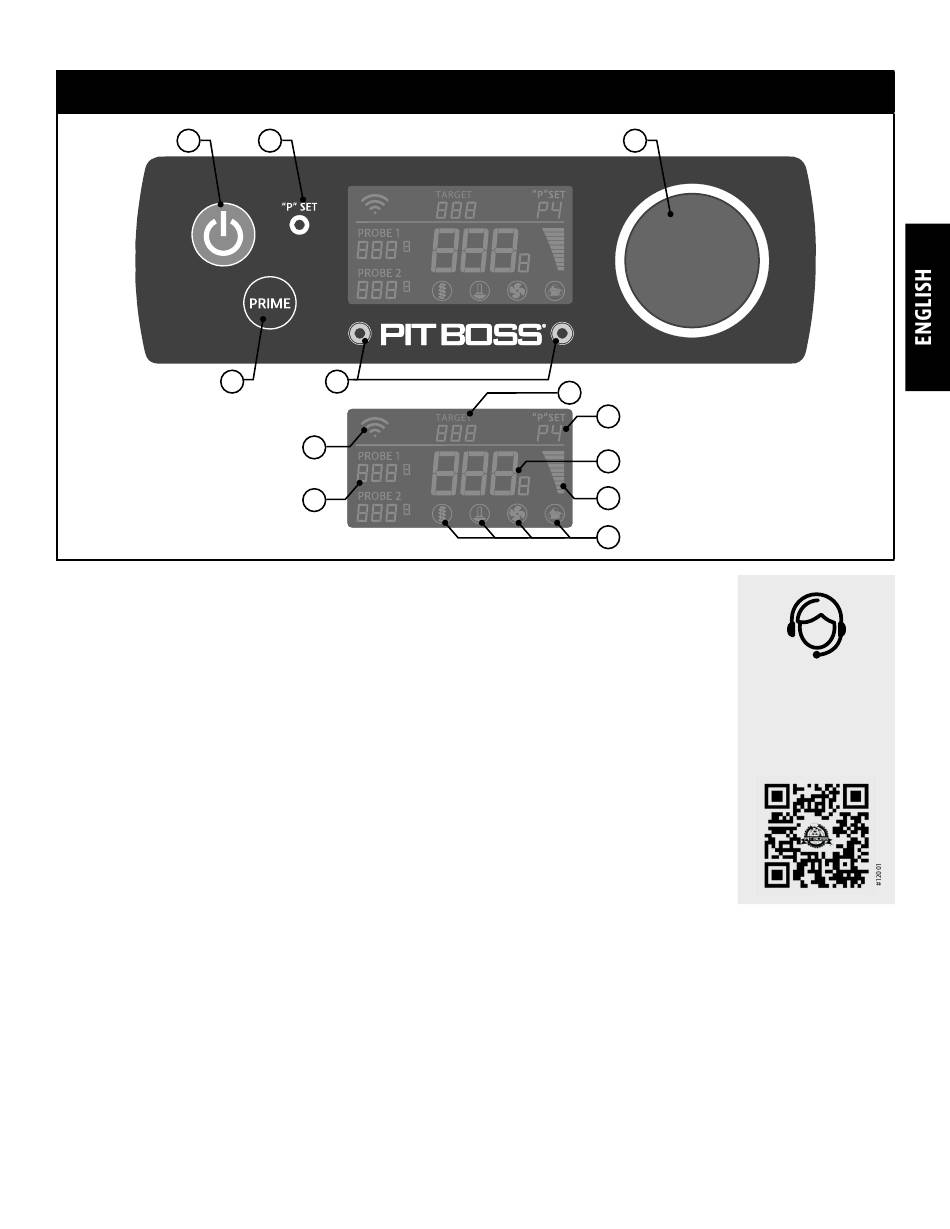

CONTROL BOARD
B
E
L
K
G "P" SET Cycle
Displays the "P" Set cycle rate chosen. The cycle rate
is selected by lightly pushing the "P" Set button,
cycling from P0 to P7.
H ACTUAL Temperature
Displays the Actual temperature from inside the
main barrel. Readout is taken by the grill probe
(sensor).
I
Fire Intensity Meter
Displays the Actual temperature intensity of the
fire in the burn pot, changing from blue to red. The
color changes when the desired Target temperature
is adjusted.
J
Operation Icons
A solid icon is visible when a component is in opera-
tion. When an icon is flashing, an error has occurred.
See Troubleshooting for assistance.
K Meat Probe Readouts
Displays the temperature reading of the meat probe
(or probes) that are connected. The readout corre-
sponds with the plug-in connection port selected.
L
Connectivity Icon
Indicates a connectivity with Wi-Fi
for connection, icon will blink. Once connection is
made, the icon will stay solid.
