DeWalt FLEXVOLT DCB1106 Guide D'utilisation

DCB1106
12V/20V Max*/FLEXVOLT
®
Chargeur 6 A 12 V/20 V max*/FLEXVOLT
Cargador de 6 Amps 12 V/20 V Máx*/FLEXVOLT
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-D
D WALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286
e
(APR24) Part No. NA485664
The following are trademarks for one or more D WALT power tools: the yellow and black color scheme; the "D" shaped air intake
e
grill; the array of pyramids on the handgrip; the kit box configuration; and the array of lozenge‑shaped humps on the surface of
the tool.
ENGLISH
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of
personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
a
WARNING: To reduce the risk of injury, read the tool instruction manual.
The label on your battery or charger may include the following symbols. The symbols and their definitions are as follows:
V ......................... volts
Hz ....................... hertz
min ..................... minutes
or DC ...... direct current
...................... Class I Construction (grounded)
A ......................... amperes
W ........................ watts
Wh ...................... watt hours
Ah ....................... amp hours
Intended Use
The DCB1106 battery charger is designed to charge D
This charger requires no adjustment and is designed to be as easy as possible to operate. Simply place your battery pack into a
receptacle of a plugged‑in charger and it will automatically charge the pack.
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions
below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog
number and voltage.
READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS FOR ALL
BATTERY PACKS

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and
product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible
charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for
compatibility of batteries and chargers.
Charge the battery packs only in D WALT chargers.
•
e
• DO NOT splash or immerse in water or other liquids.
• DO NOT allow water or any liquid to enter battery pack.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C)
(such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.
Instruction Manual
Guide D'utilisation
Manual de instrucciones
6 Amp Charger
®
®
WALT
e
DCB1106 Copyright © 2019, 2024 D WALT
e
or AC ........... alternating current
or AC/DC .... alternating or direct current
...................... Class II Construction (double insulated)
...................... earthing terminal
..................... safety alert symbol
..................... visible radiation–do not stare into the light
..................... read all documentation
..................... do not expose to rain
WALT 12V Max*, 20V Max* Lithium‑ion and FLEXVOLT® battery packs.
e

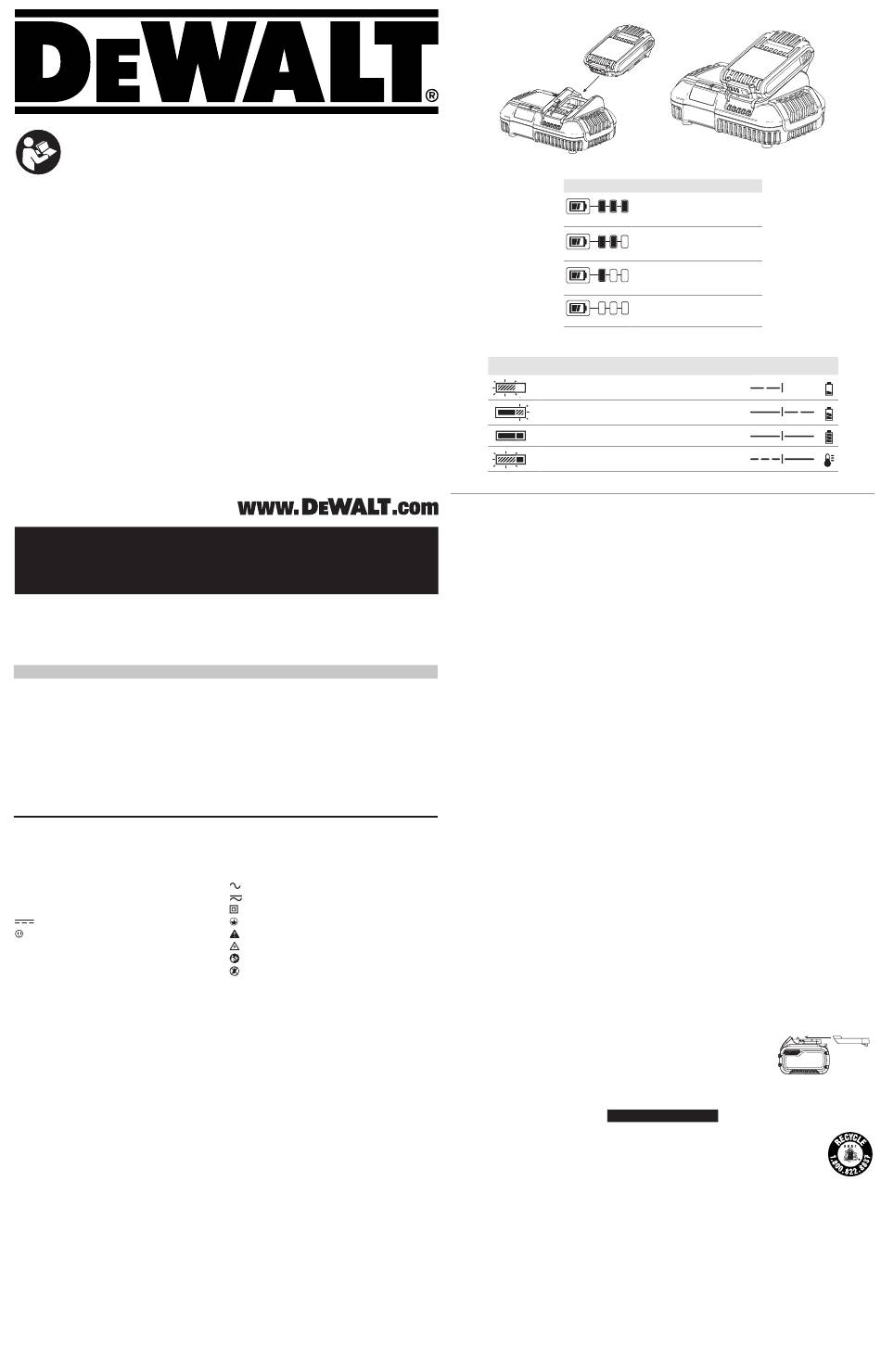

Fig. A
Fig. B
Fuel Gauge Indicators/Fauge de carburant/Indicador de combustible
Fig. C
Charging Indicators / Indicateurs de charge / Indicadores de carga
Stage 1 Charging / Chargement de stade 1 / Carga Etapa 1
Stage 2 Charging / Chargement de stade 2 / Carga Etapa 2
Fully Charged / Bloc‑piles Chargé / Unidad Cargada
Hot/Cold Pack Delay / Suspension de Charge Contre
le Chaud/Froid / Retraso por Unidad Caliente/Fría
NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the
ON position.
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs are burned.
Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F
•
(130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range
specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and
increase the risk of fire.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid
gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery
electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek
medical attention.
• Battery liquid may be flammable if exposed to spark or flame.
• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert
into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp
blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery
packs should be returned to the service center for recycling.
Storage Recommendations
The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged
battery pack out of the charger.
Battery Pack Cleaning Instructions
Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non‑metallic brush. Do not use water
or any cleaning solutions.
Fuel Gauge Battery Packs (Fig. B)
Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the
approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product
components, temperature, and end‑user application.
Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact
exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes,
drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that
the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE:
Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if
they are in carry‑on baggage.
Shipping the D WALT FLEXVOLT® Battery Pack
e
The D WALT FLEXVOLT® battery pack has a battery cap that should be used when shipping the battery pack.
e
Attach the cap to the battery pack to ready it for shipping. This converts the battery pack to three
separate 20V batteries. The three batteries have the Watt hour rating labeled "Shipping" on the
battery pack. If shipping without the cap or in a tool, the pack is one battery at the Watt hour
rating labeled "Use."
In this example, the battery pack is three batteries with 40 Watt hours each when using the cap.
Otherwise, the battery pack is one battery with 120 Watt hours.
Example battery pack label:
USE: 120 Wh SHIPPING: 3 x 40 Wh
The RBRC® Seal
Please take your spent battery packs to an authorized D
recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your
local recycling center for information on where to drop off the spent battery pack. Do not place in curbside
recycling. For more information visit www.call2recycle.org or call the toll‑free number in the RBRC® Seal.
RBRC® is a registered trademark of Call 2 Recycle, Inc.
IMPORTANT SAFETY INSTRUCTIONS FOR ALL
BATTERY CHARGERS

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and
product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
• SAVE THESE INSTRUCTIONS ‑ The manual contains important safety and operating instructions.
• DO NOT attempt to charge the battery pack with any chargers other than a D
battery packs are specifically designed to work together.
• These chargers are not intended for any uses other than charging D
result in risk of fire, electric shock or electrocution.
• Do not expose the charger to rain or snow.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug
and cord.
75–100% charged
Chargé de 75 à 100 %
75–100% cargada
51–74% charged
Chargé de 51 à 74 %
51–74% cargada
< 50% charged
Chargé de < 50 %
< 50% cargada
Pack needs to be charged
Le bloc-piles doit être rechargé
La batería tiene que cargarse
WALT service center or to your local retailer for
e
WALT charger. D WALT chargers and
e e
WALT rechargeable batteries. Any other uses may
e
