PARTS & SCHEMATICS

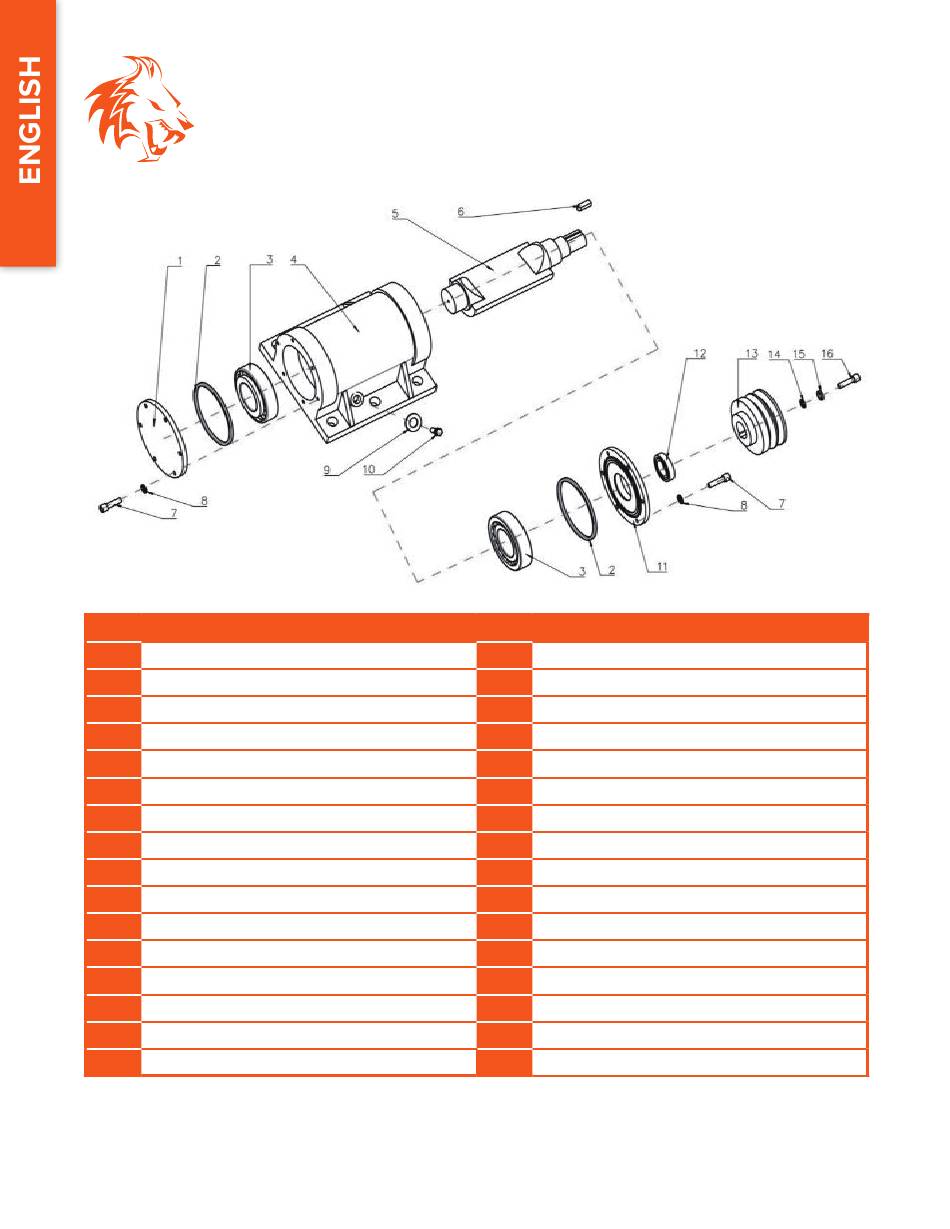

VIBRATORY HOUSING ASSEMBLY
No.
Description
1
Case Cover (Shut-off)
2
O-Ring
3
Bearing
4
Vibrating Case
5
Eccentric Shaft
6
Key
7
Inner Hexagon Bolt
8
Washer
9
Copper Gasket
10
Oil Drainage Bolt
11
Case Cover (Pulley)
12
Oil Seal
13
Pulley
14
Lock Washer
15
Large Washer
16
Inner Hexagon Bolt
36 | OPV425 man.
Qty.
Specification
x1
04-03
x1
110 x 3.1
x2
6309
x1
04-01
x1
04-04
x1
8 x 30
x12
M6 x 20
x12
Ø6
x1
Ø14
x1
M14 x 1.5
x1
04-02
x1
35 x 52 x 7
x1
04-06
x1
10 x 35
x1
10 x 35
x1
M10 x 25
