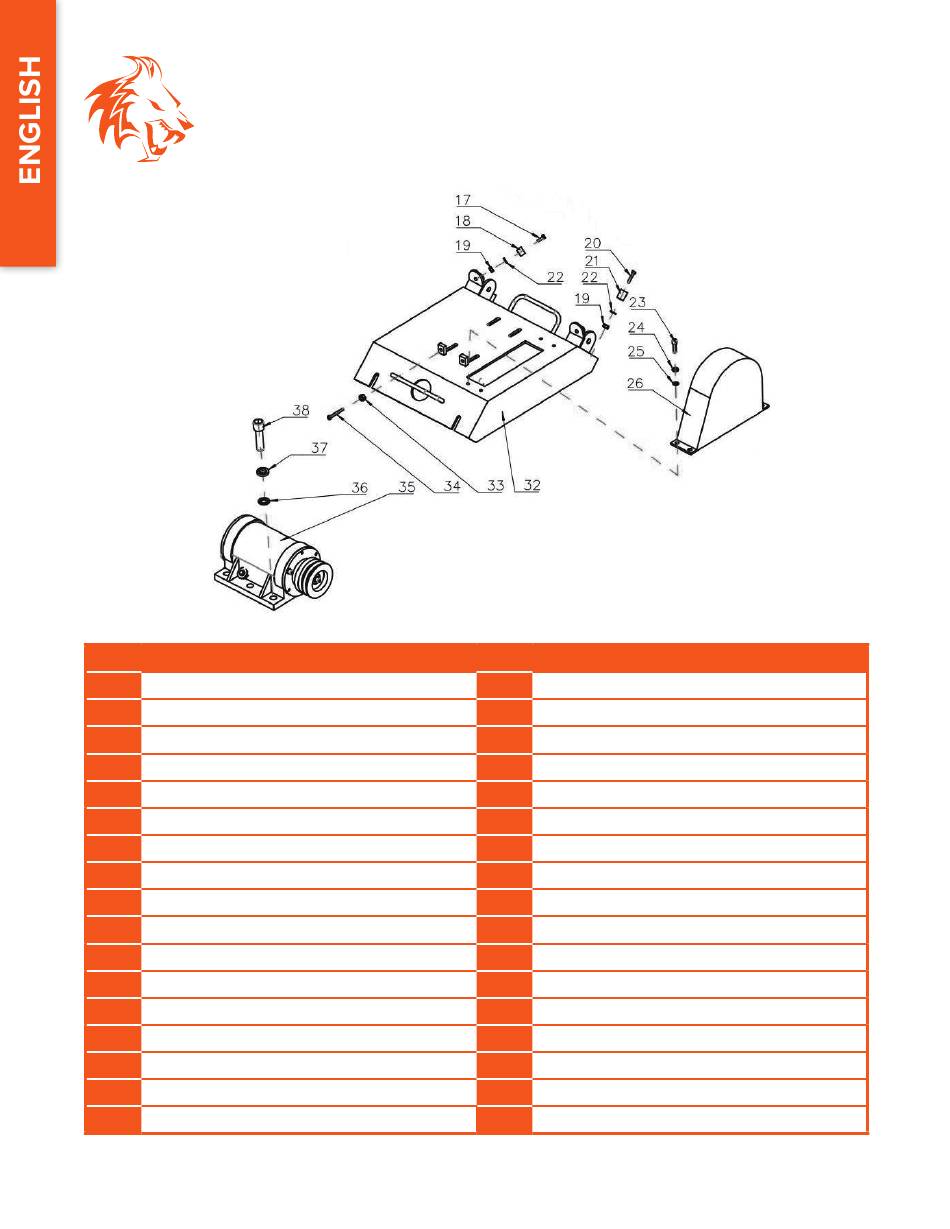

PARTS & SCHEMATICS
ENGINE BASE PLATE
No.
Description
17
Flat Cross Bolt
18
Handle Damper
19
Locked Nut
20
External Hexagon Bolt
21
Handle Lower Damper
22
Washer
23
External Hexagon Bolt
24
Lock Washer
25
Washer
26
Belt Cover
32
Engine Support Plate
33
Nut
34
External Hexagon Bolt
35
Exciter
36
Washer
37
Lock Washer
38
Inner Hexagon Bolt
34 | OPV425 man.
Qty.
Specification
x4
M8 x 25
x2
35 x 15
x8
M8
x2
M8 x 35
x2
35 x 35
x8
Ø8
x2
M8 x 20
x2
Ø8
x2
8 x 24
x1
240 x 190
x1
490 x 425
x2
M8
x2
M8 x 40
x1
04-01
x6
Ø16
x6
Ø16
x6
M16 x 40
