• Proceed with the other electrical connections on the
CM-RC-01 (see chapter Further electrical connec-
tions on the CM-RC-01, page 21).
• Mount the cable holders, lay the cables and close
the cable ties (see chapter Mounting the cable hold-
ers and laying the cables, page 21).
• Screw the protective earth conductor onto the ter-
minal box cover and attach the cover to the module
housing (see chapter Closing the module housing,
page 21).
5 Establishing communication via the BEST
SOFTWARE
• PC/mobile device
– with the Windows 7 or newer operating system
– with Bluetooth interface or USB connection
– with installed BEST SOFTWARE
• For communication via the USB port:
– Connect the BEST interface converter to the com-
pressor module (CN14) and to the PC or mobile
device.
Setting up communication
▶ Switch on PC/mobile device and start the BEST
SOFTWARE (1).
▶ Click on the N button (2).
EW
▶ Select IQ MODULE CM-RC-01 (3).

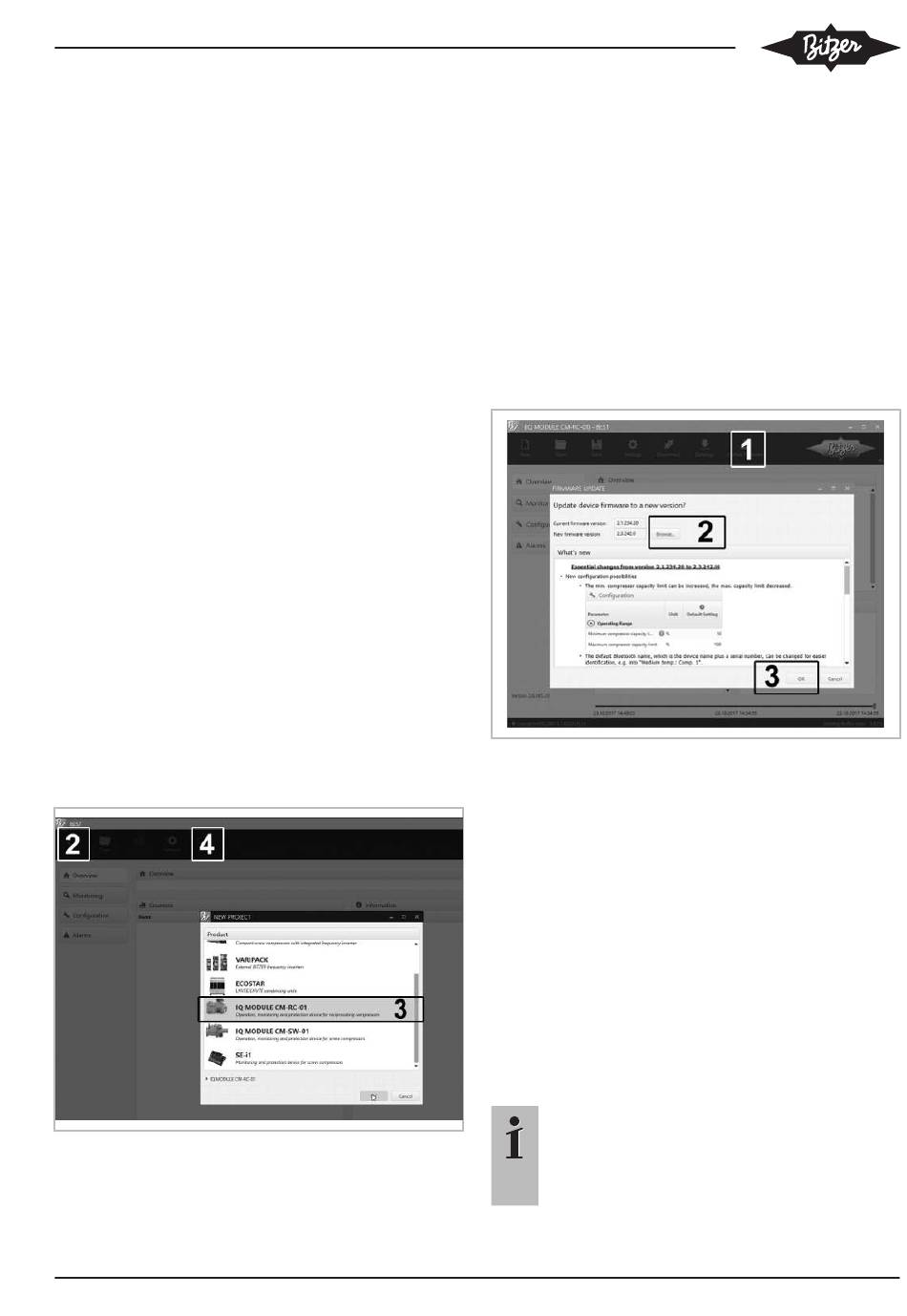

Fig. 2: Connecting CM-RC-01 to BEST SOFTWARE
▶ Click on the C
ONNECT
KW-233-2
button (4).
➙ The following appears for selection: BEST
or B .
LUETOOTH
▶ SelectionBEST
CONVERTER
Click on the C
ONNECT
➙ The compressor module is now connected to the PC
or mobile device.
▶ Select U F
PDATE IRMWARE
figure 3, page 25).
▶ Search folder (...\BEST\Firmware\CM-RC-01) for
new firmware.
▶ Start firmware update and wait until the successful
update is confirmed. Confirm with OK (3).
Fig. 3: Updating the firmware
▶ Selection of B
LUETOOTH
A firmware update is not possible via the Bluetooth
interface.
All available devices are listed.
▶ Select compressor.
▶ Click on the C
ONNECT
▶ Enter the Bluetooth password. Factory setting from
firmware version 2.6.58.00:"8670", previous ver-
sions:"2".
➙ The compressor module is now connected to the PC
or mobile device.
5.1 Configuration via BEST SOFTWARE
Information
For further information on operating parameter
monitoring, electrical connection and communic-
ation via BEST SOFTWARE, see Technical In-
formation KT-230.
CONVERTER
:
button.
(1) and B ... (2) (see
ROWSE
button.
25
