Following this, any optional extension kits can be
mounted (see chapter Mounting the optional CM-RC-01
extension kits, page 22).
3.10 Further electrical connections on the CM-
RC-01
• Voltage supply of the compressor module on ter-
minal strip CN1 (115 .. 230 V +10%/-15%,
50/60 Hz):
– Terminal 1: L
– Terminal 2: N
• Command for compressor start (release signal from
system controller).
• Optionally: Analogue signal for capacity control from
the system controller (0 .. 10 V).
Schematic wiring diagram and further information, see
Technical Information KT-230.

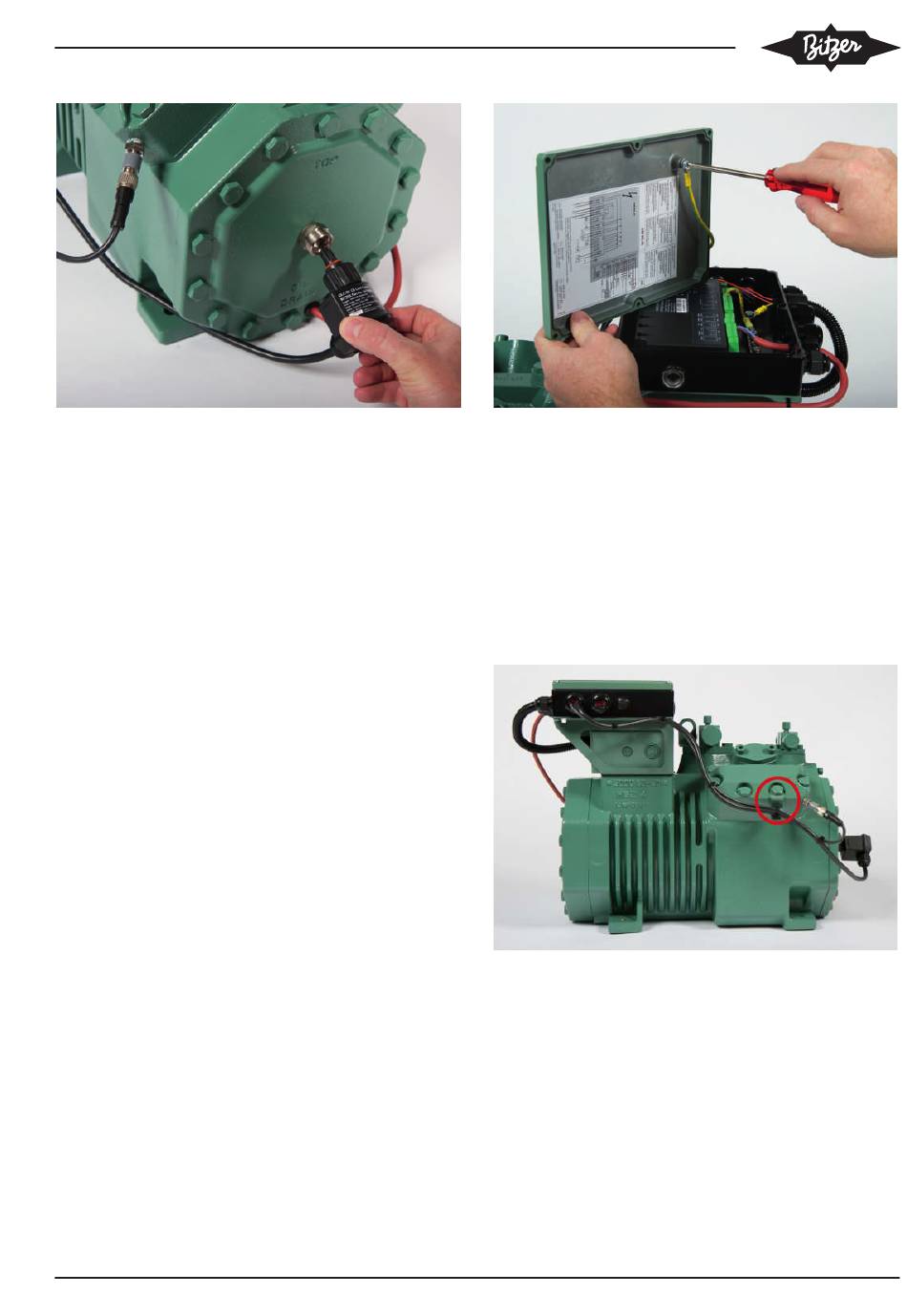

3.11 Closing the module housing
▶ Screw the protective earth conductor on the cover
contained in the kit.
▶ Put the cover on the compressor module housing
and fasten it using the 6 enclosed screws.
KW-233-2
3.12 Mounting the cable holders and laying the
cables
▶ Mount one cable holder each on the outside of the
cylinder head (see red circle).
▶ To this end, loosen the corresponding screws on
the cylinder head, insert the screws again with cable
holders and tighten them (tightening torque 80 Nm).
▶ Fasten the plastic clip to the cable holder and insert
a cable tie.
▶ Lay the cables along the cable holders and use
cable ties to fix them.
21
