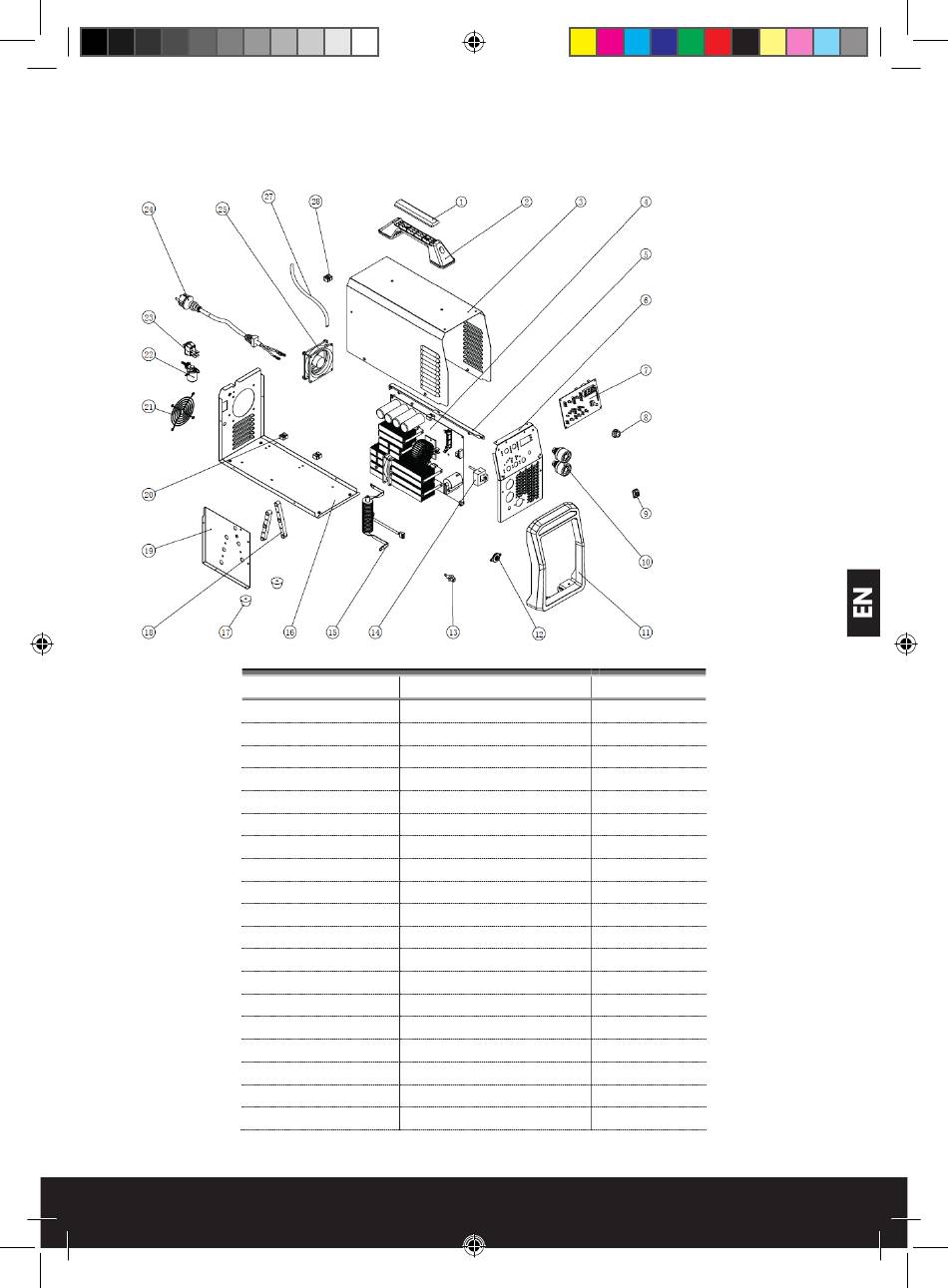

6.2 Exploded view
e
tion
the
uch
des.
s.
ged.
nt to
and
zle.
Notices_multilangues_200ACDC.indd 31 Notices_multilangues_200ACDC.indd 31
NO. Name
1 Handle cover
2 Handle
3 Top cover
4 Power supply system
5 Support
6 Front cover assembly
7 Display PCB
8 Button
9 Silicone sleeve for encoder
10 Quick connector
11 Plastic front panel
12 Torch control plug
13 Gas outlet connection
14 Current connector
15 Inductance
16 Background
17 Rubber cover
18 Heatsink support
19 Wind deflector
Qty
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
2
1
