+ polarity connector
MMA: Electrode holder
TIG: Ground clamp
sing
Polarity connector -
MMA: Earth clamp
TIG : torch
3.3 Installation stages
3.3.1 Recommended installation procedure
a) Make sure the machine is switched off.
b) Check that the power cable is in good condition and that the input voltage is correct.
c) Plug the set into the power socket.
d) For TIG welding, connect the gas hose. Set the desired flow rate.
e) Connect the earth cable to the part to be welded according to polarity.
f) Connect the TIG torch or electrode holder, observing the correct polarity.
g) Switch on the device, select the appropriate welding mode on the screen and set the appropriate parameters.
Before starting, make sure there is no short-circuit between the torch and the workpiece.
3.3.2 Choosing the right gas
Before TIG welding, it is necessary to connect the gas to protect the workpiece. Correct gas selection is an important
step towards good welding.
Model
MMA
TIG DC
TIG AC/DC
Notices_multilangues_200ACDC.indd 23 Notices_multilangues_200ACDC.indd 23
Material
Steel, Stainless steel
Aluminium

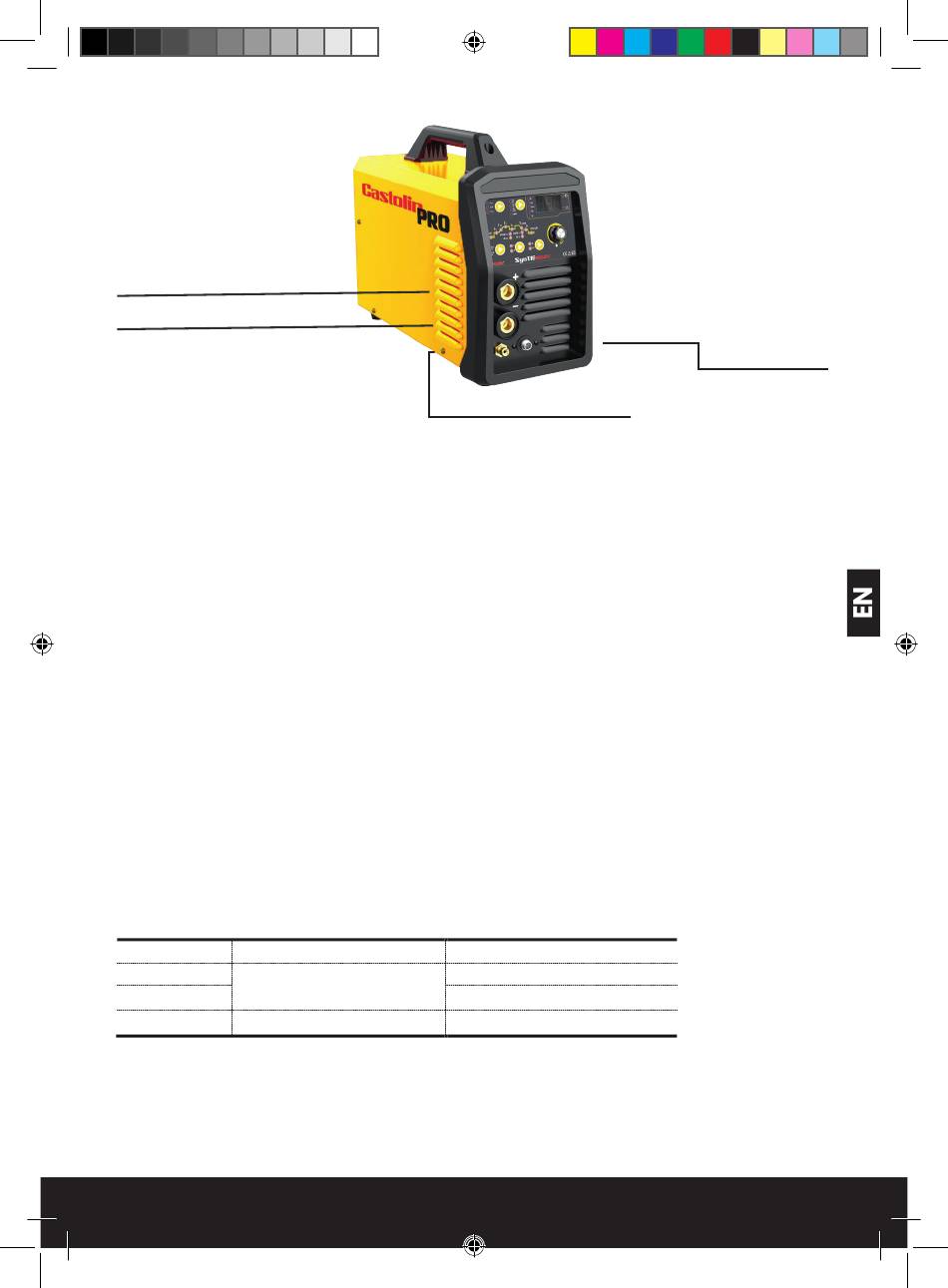

TIG: Connector for TIG torch
controls
TIG: Connector for TIG torch gas
supply hose
Gas
No need for gas
Pure argon
Pure argon
23
