Recommended cutting equipment for USA
Following is a list of recommended cutting equipment for Jonsered chain saw models CS 2240 II and CS 2240S II. These
chain saw models equipped with either of the listed guide bar and saw chain combination(s), fulfills the requirements
according to ANSI B175.1-2012 (Gasoline Powered Chain Saws - Safety Requirements).
The following list is the chain saw manufacturers recommendations. There may be other combinations available, which
will also achieve kickback reduction.
Chain saw models Jonsered CS 2240 II and CS 2240S II met the kickback performance requirements of ANSI B175.1-
2012 when tested with the combinations of bars and saw chains listed below. The saw chain Jonsered H30 is also
classified as a low kickback saw chain since it met the requirements for low kickback saw chain outlined in ANSI B175.1-
2012. We recommend to use only the listed combinations of bars and chains for chain saw models Jonsered CS 2240
II and CS 2240S II. Other chain saw models may not meet the kickback requirements when equipped with the listed bar
and chain combinations.
Recommended cutting equipment for Canada
Following is a list of recommended cutting equipment for the Jonsered chain saw models CS 2240 II and CS 2240S II.
The combinations of powerhead, bar and chain meet all requirements outlined in the CSA Z62.1-15 Chainsaws and
Z62.3-11 Chainsaw Kickback standards.
Furthermore the saw chain Jonsered H30 is evaluated and listed as a Type C Low Kickback Saw Chain according to the
provisions in Z62.3-11.
Kickback information
The guide bar nose radius is determined by either the maximum number of teeth in the nose sprocket or the
corresponding maximum nose radius of a solid bar.
As we are listing the maximum guide bar nose radius, you may use a guide bar with smaller nose radius than in our list.
For guide bars of the same length, all sprocket-nose guide bars of the same pitch and having the same number of
sprocket teeth may be considered to have equivalent kickback energy.

Guide bar and saw chain combinations

Length, inch Pitch, inch
13
15
0.325
16
18

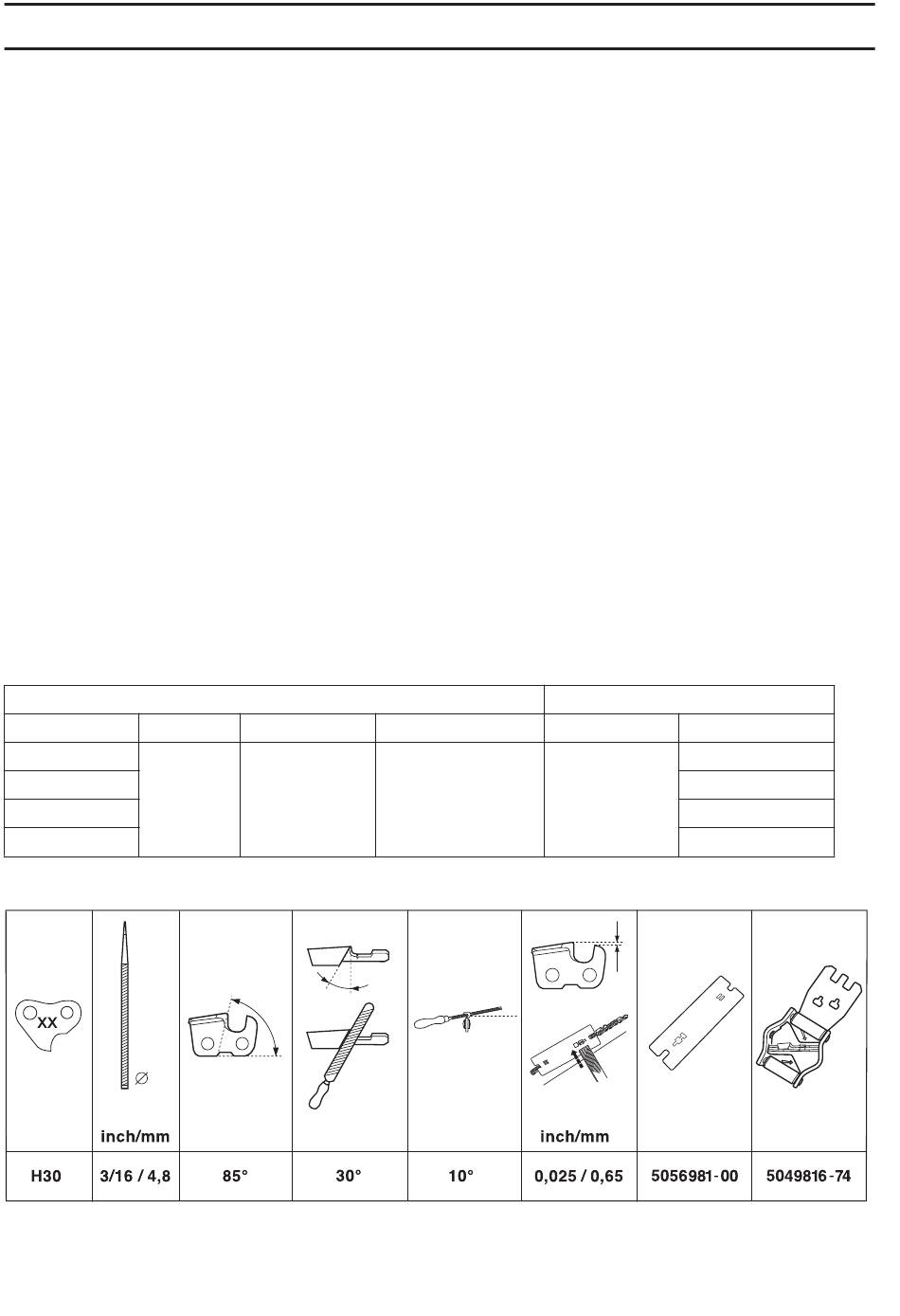

Saw chain filing and file gauges
32 – English
TECHNICAL DATA
Guide bar
Gauge, inch Max. nose radius
1,3 10T
Saw chain
Type Drive link count
56
64
Jonsered H30
66
72
1155356-49 Rev.3 2016-11-21
