Connection of

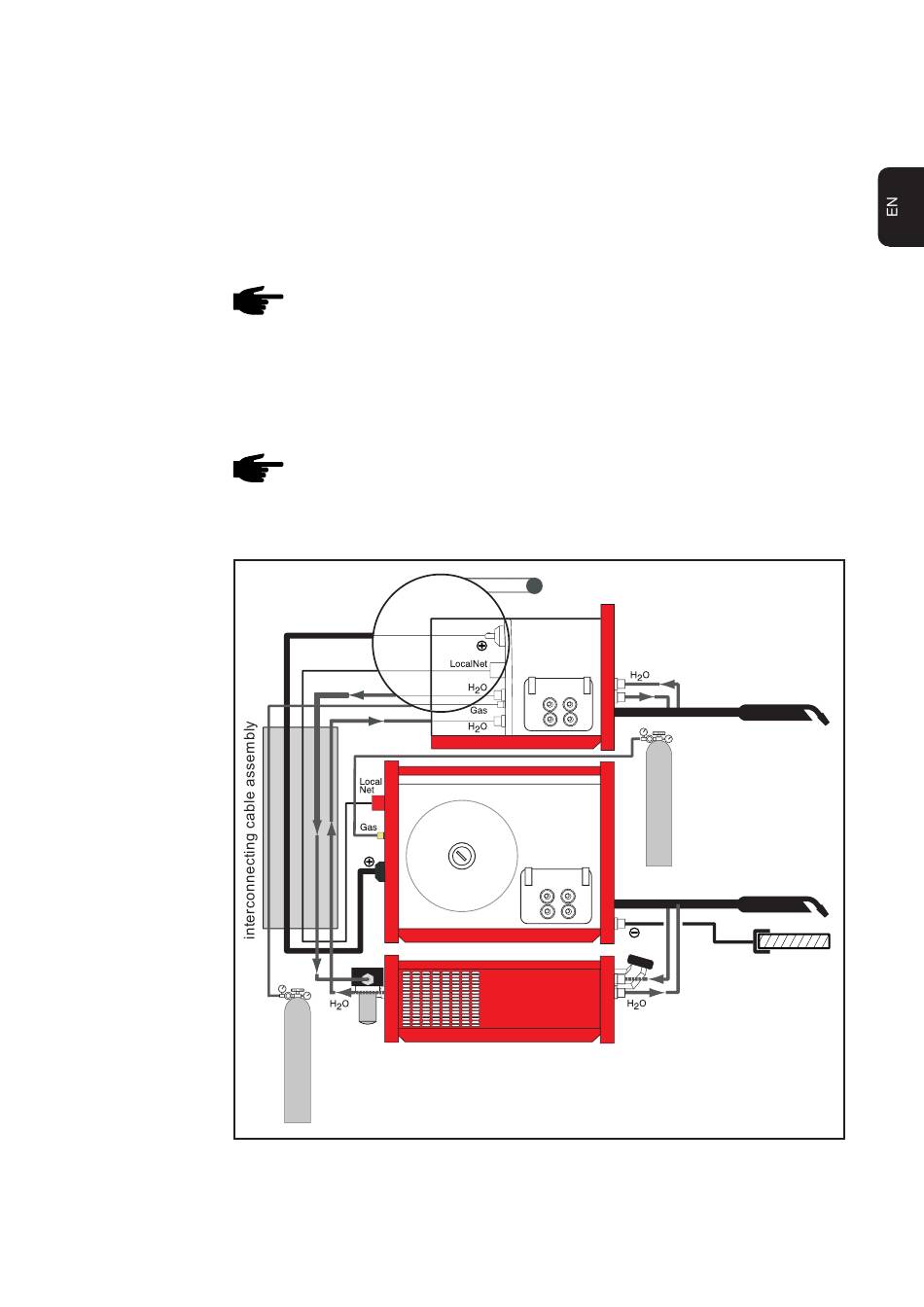

Fig.7 shows the lines and connections required for the start-up. The grey lines are the
the power source
water and shielding gas lines, a description of which was already included in the Chap-
with wire feeder,
ters "Connecting the shielding gas" and "Connecting the water lines".
cooling unit and
welding torch
Important! The length of the welding circuit can affect the welding result. The welding
circuit comprises the following components:
-
-
-
Fig.7
interconnecting cable assembly between power source and wire feeder
torch cable assembly
solid-type cable
Note! For the MIG/MAG Puls-Synergic welding of aluminium and stainless
steel the maximum length of the welding circuit depends on the parameters
selected for the welding process. In order to achieve a perfect welding result,
we recommend
-
you use shortest possible welding circuit components or
-
you carry out welding tests (with welding circuit components of different
lengths if necessary) and subsequently evaluate the welding results
Note! For the MIG/MAG Puls-Synergic welding of steel we recommend welding
circuit components with the following lengths:
-
interconnecting cable: 1.6 m (5 ft. 3 in.)
-
solid-type cable: 3 m (9 ft. 10 in.)
-
welding torch: 4.5 m (14 ft. 9 in.)
TPS 2700 Duo complete with cooling unit, wire feeder and welding torches
7
welding torch 1
welding torch 2
