Installation and Operating Specification EDR

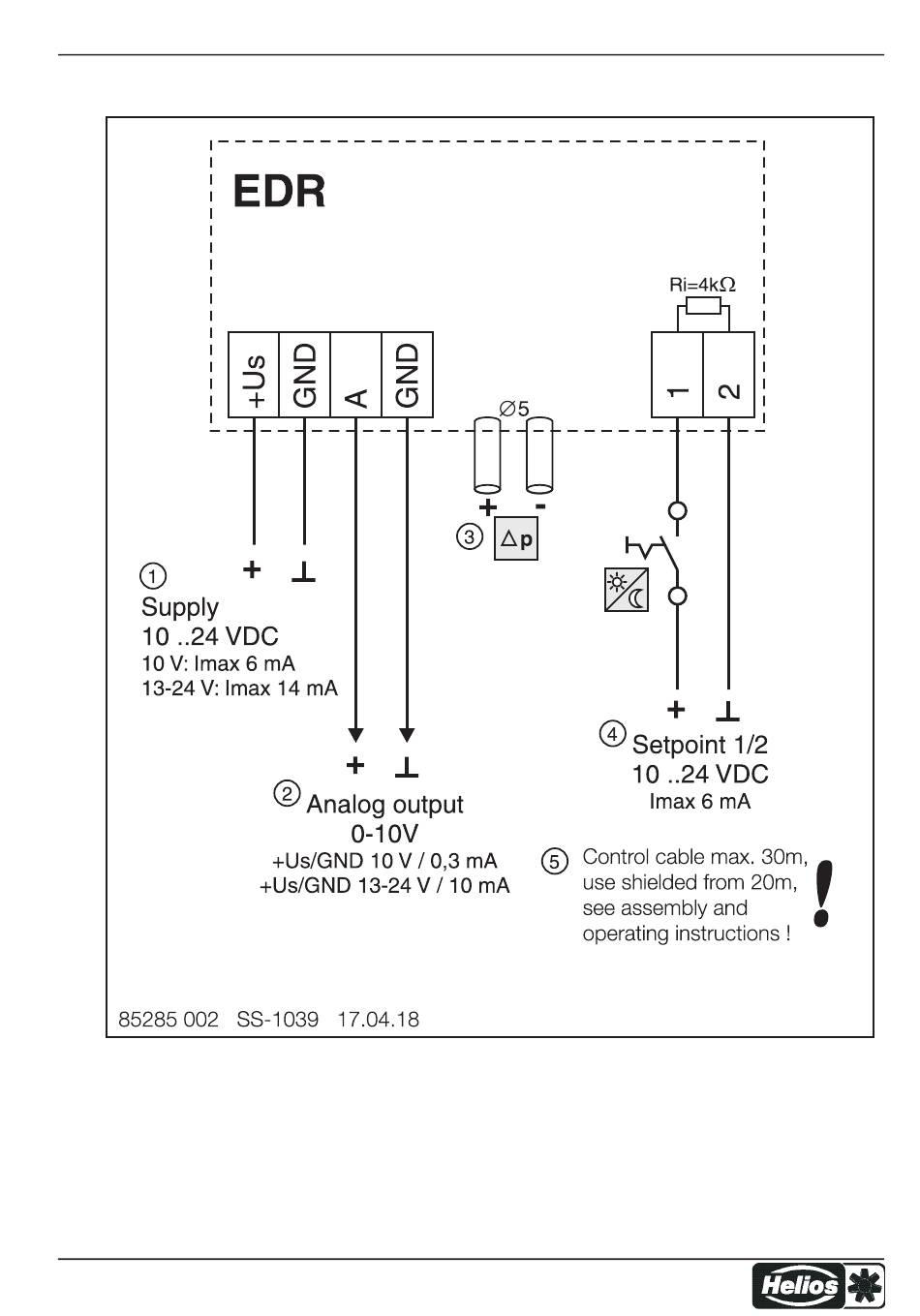

8.2 Connection diagram
1 Voltage supply 10...24 V DC
2 Output 0...10 V
3 Pressure connections
4 Voltage input for switch over Setpoint 1 / Setpoint 2
5 Control cables max. 30 m, from 20 m shielded, see Installation and Operating Specification!
