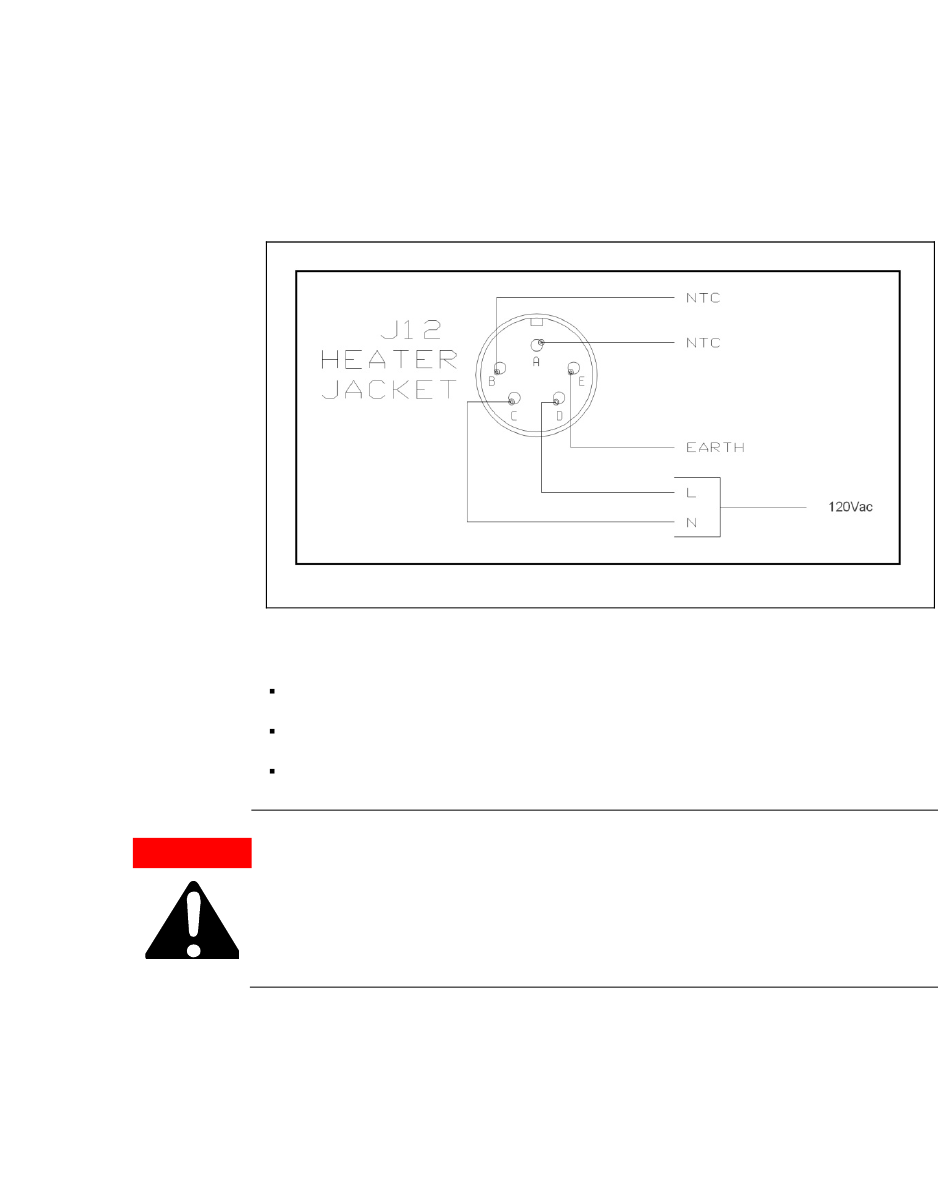

Connector J12 – Heater Jacket Connector
Figure 16
WARNING! On the connector J12 is present an Hazardous voltage. Connect on the
connector only the Agilent Heating Jacket.
Turbo-V 1000 ICE Controller User Manual / 87-900-905-01 (M)
J12 connectors
A-B heater jacket temperature sensor
C-D 120 Vac 2 A, output to heater jacket
E Ground (Earth)
