Connection J10 - Controller to
Pump Connection
A five-meter long cable is provided to connect the controller to the
pump. The following figures show the controller output connector
configuration where pins:

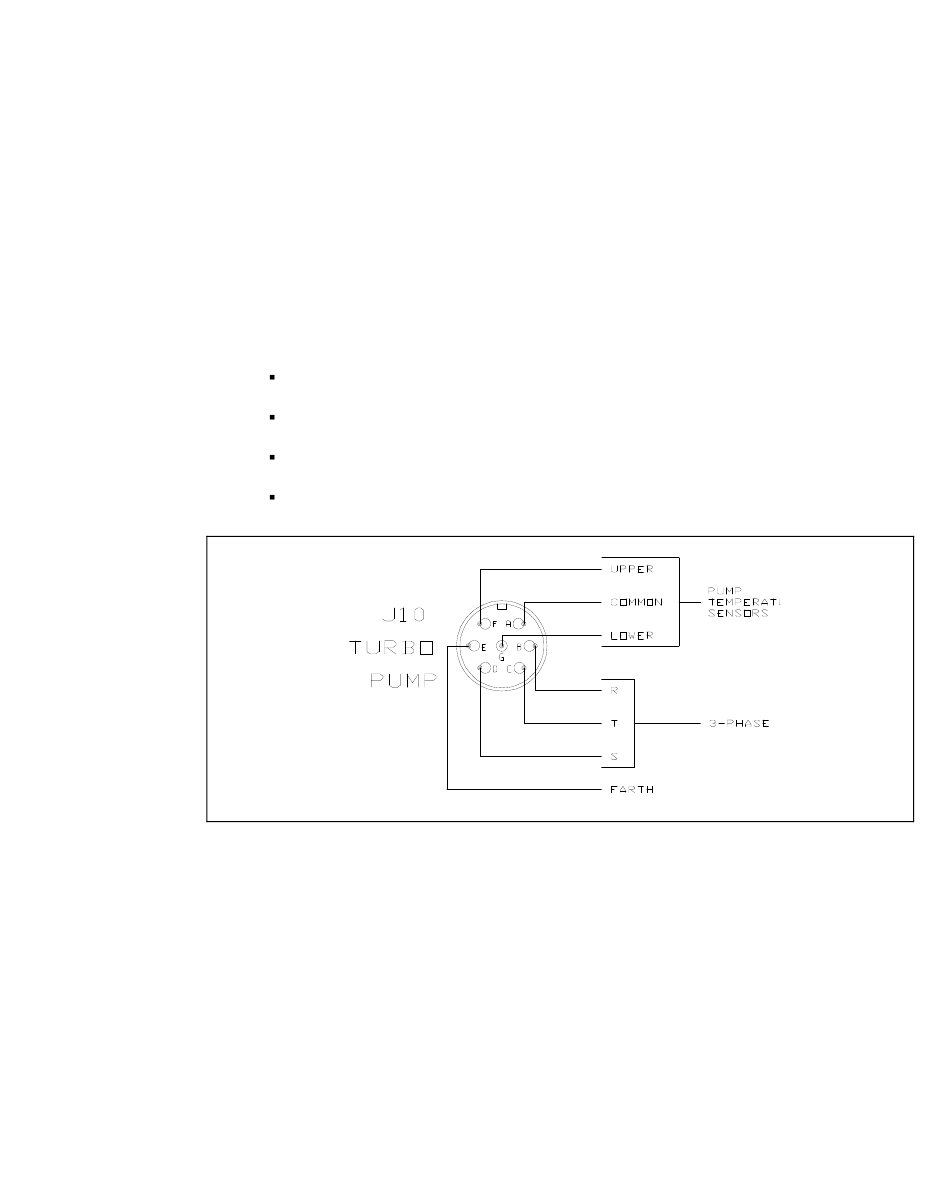

Figure 14
Turbo-V 1000 ICE Controller User Manual / 87-900-905-01 (M)
A-F = upper bearing sensor
B-C-D = 54 Vac 3-phase output to pump motor stator
E = ground
A-G =lower bearing sensor
Controller-to-pump connector (applicable to model 969-9447 and
969-9547)
