Installing Multiple Power Supplies

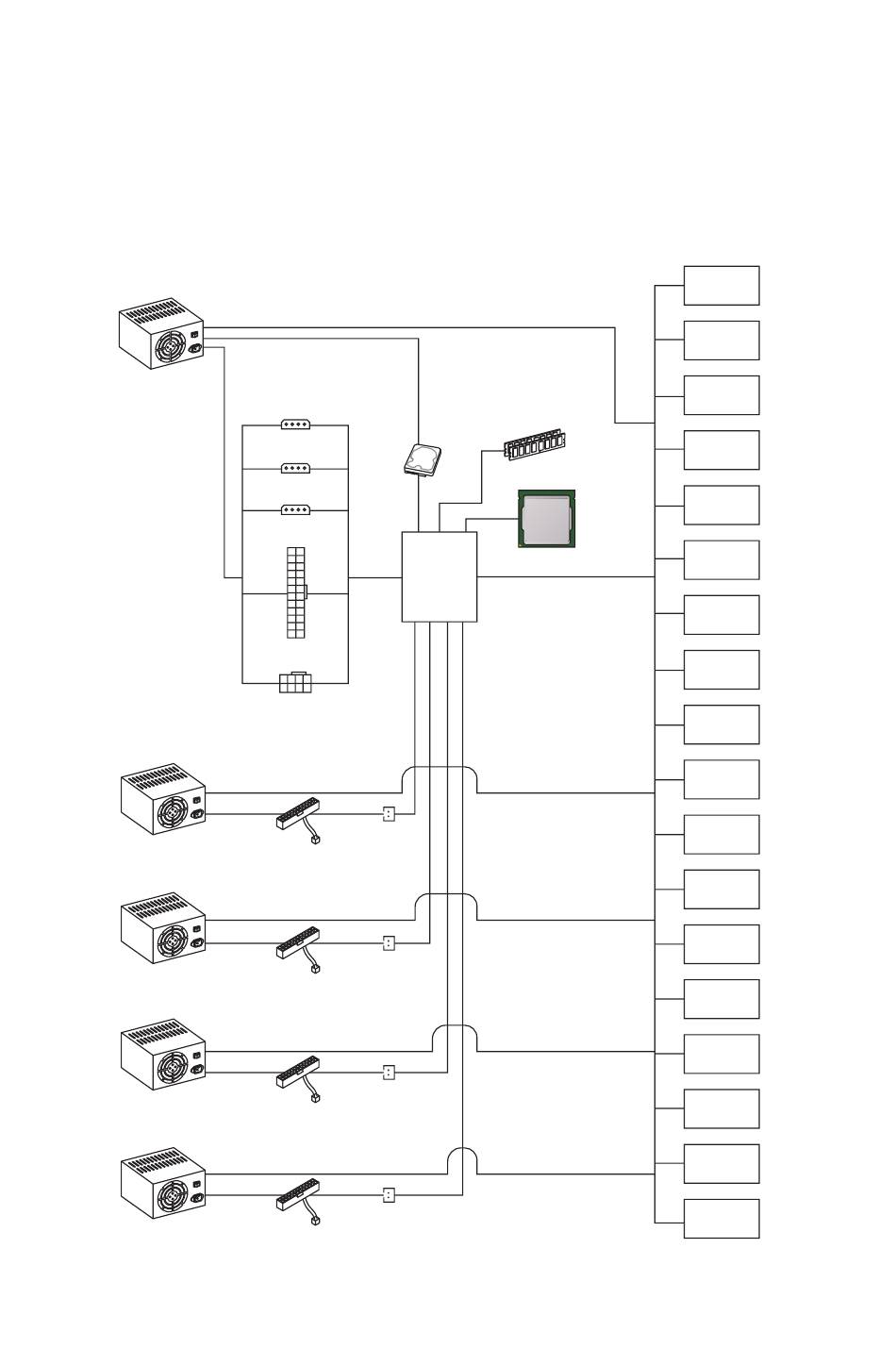

The following diagram shows the installation of multiple power supplies. The main
power supply must be connected to the CPU_PWR1, ATX_PWR1, GPU_PWR1~3, SSDs
and System Fans. Estimate the total wattage required by the graphics card TGP and
install 1 to 4 additional power supplies if necessary. Connect additional power supplies
to the JPS_ONx connectors with a 24-pin to 2-pin adapter, in order to turn on the
additional power supplies when the system is powered on.
PSU1
GPU_PWR1
GPU_PWR2
GPU_PWR3
ATX_PWR1
CPU_PWR1
PSU2
24-pin to 2-pin
adapter
PSU3
24-pin to 2-pin
adapter
PSU4
24-pin to 2-pin
adapter
PSU5
24-pin to 2-pin
adapter
