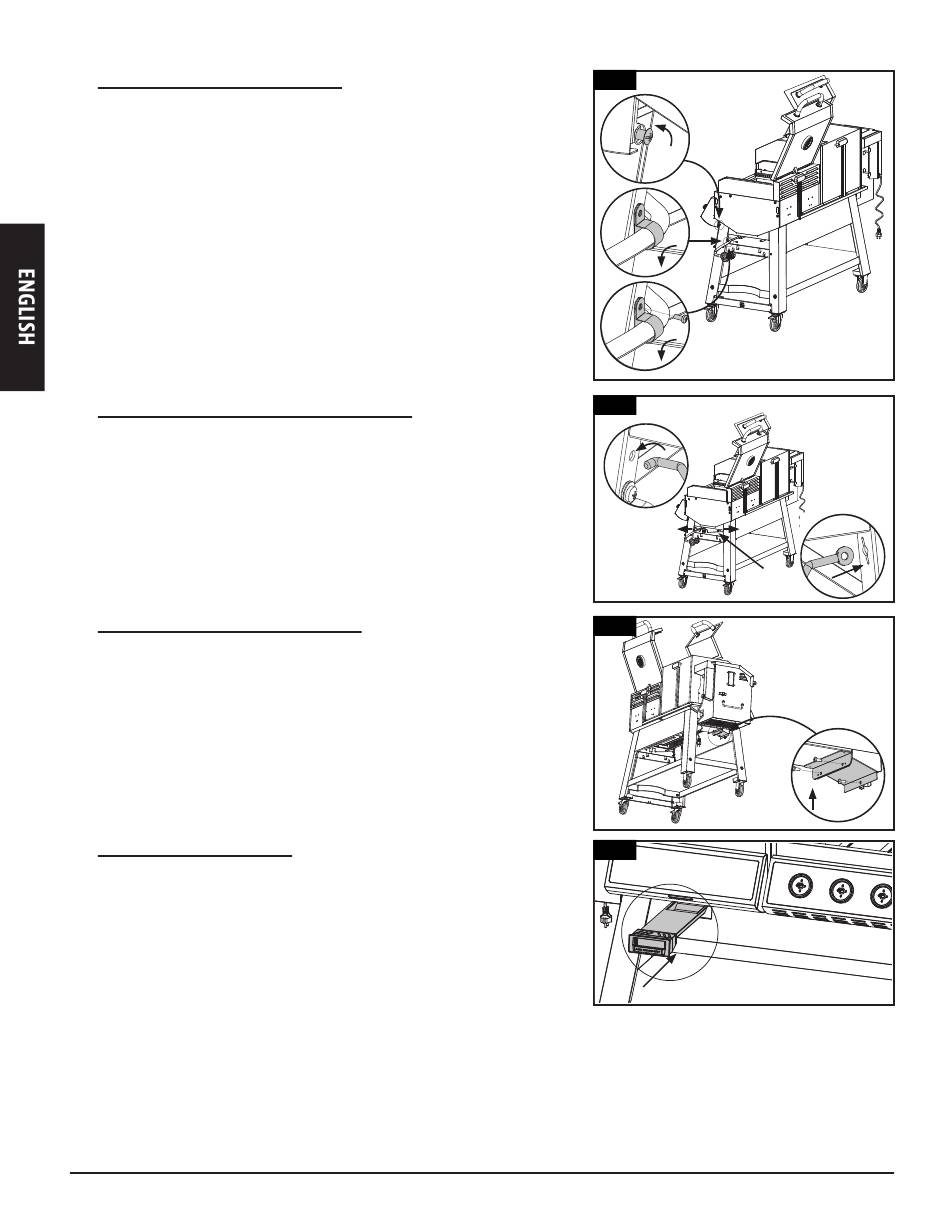

11. SECURING THE REGULATOR HOSE
Parts Required:
1
x
Regulator Hose Retainer (#E)
1
x
Screw (#C)
Installation:
•
To avoid the lighting rod from falling on the ground, put the end of the
lighting rod on the step screw as shown in illustration.
•
Use Regulator Hose Retainer to fix the regulator hose then use M5x12
screw to mount the Regulator Hose Retainer to Front-Right Leg.
12. ATTACHING THE CYLINDER WIRE RETAINER
Parts Required:
1
x
LP Gas Cylinder Wire Retainer (#15)
Installation:
•
Mount the LP Gas Cylinder Wire Retainer between the Front-Right Leg and
Back-Right Leg
13. ATTACHING THE ASH TRAY BRACKET
Parts Required:
1
x
Ash Tray Bracket (#28)
3
x
Screw (#C)
Installation:
•
Mount the Ash Tray Bracket to the bottom of the Main Barrel / Hopper
Assembly.
14. INSTALLING THE ASH TRAY
Parts Required:
1
x
Ash Tray (#27)
Installation:
•
Insert the Ash Tray to the Ash Tray bracket.
12
11
1
2
3
12
1
15
13
14
27
2
28
