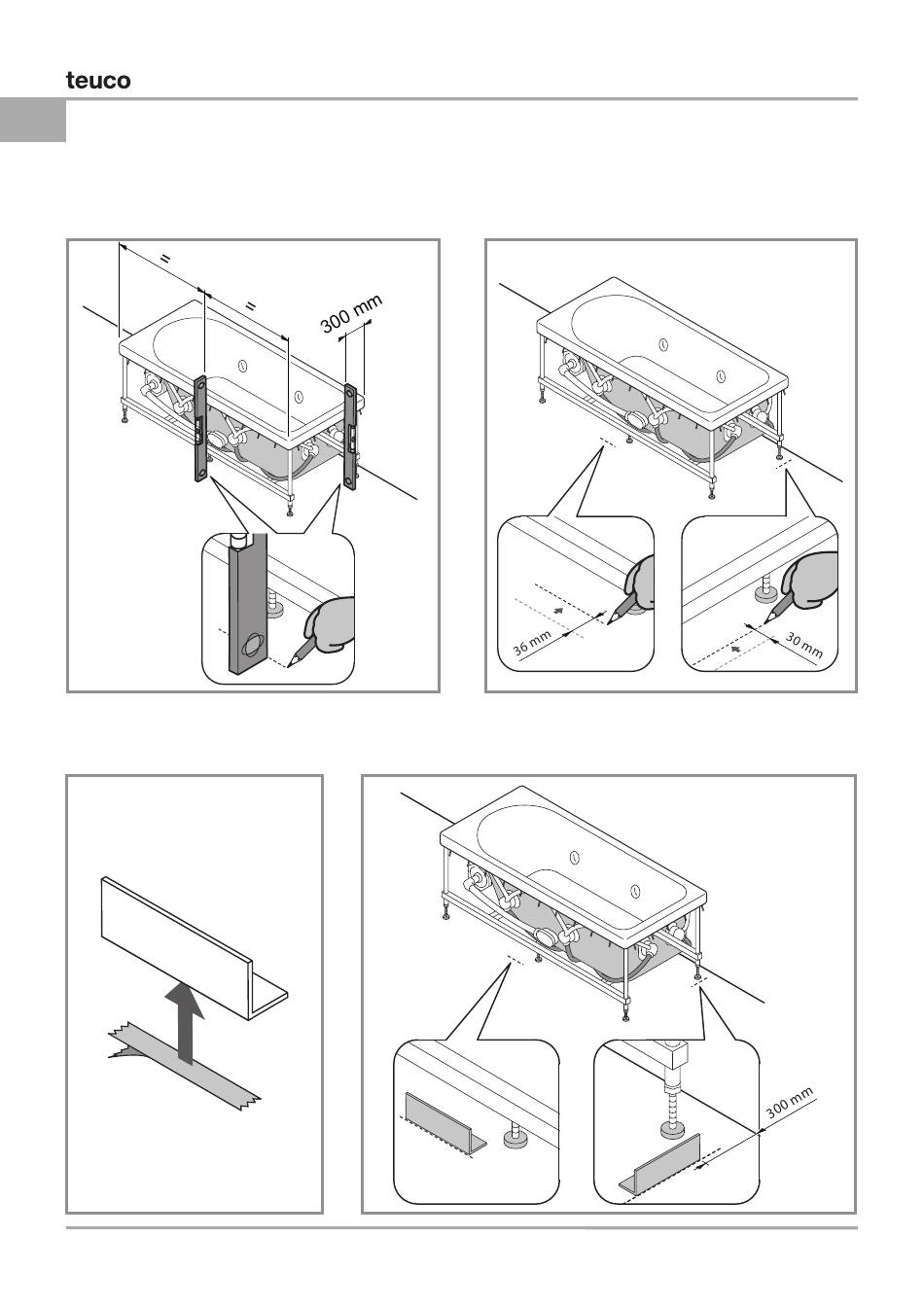

ASSEMBLING THE PANELS WITH SUPPORTS
Using a spirit level aligned vertically in contact with the bathtub rim, trace two marks on the ground near the edges (the
reference for the longer side is the middle of the edge, while for the shorter side, it is roughly 300 mm from the wall). Using
this mark as reference, trace another one farther in by 36 mm (long side) and 30 mm (short side).
If using glue or bi-adhesive tape to fasten the panels, after you have applied them to the bracket, fasten it in position com-
pared to the distance you've just marked (maintaining a simultaneous distance of 300 mm from the wall, in case of bracket
for the side panel) and directing the angle-bar base toward the bathtub (make sure it does not face outward).
