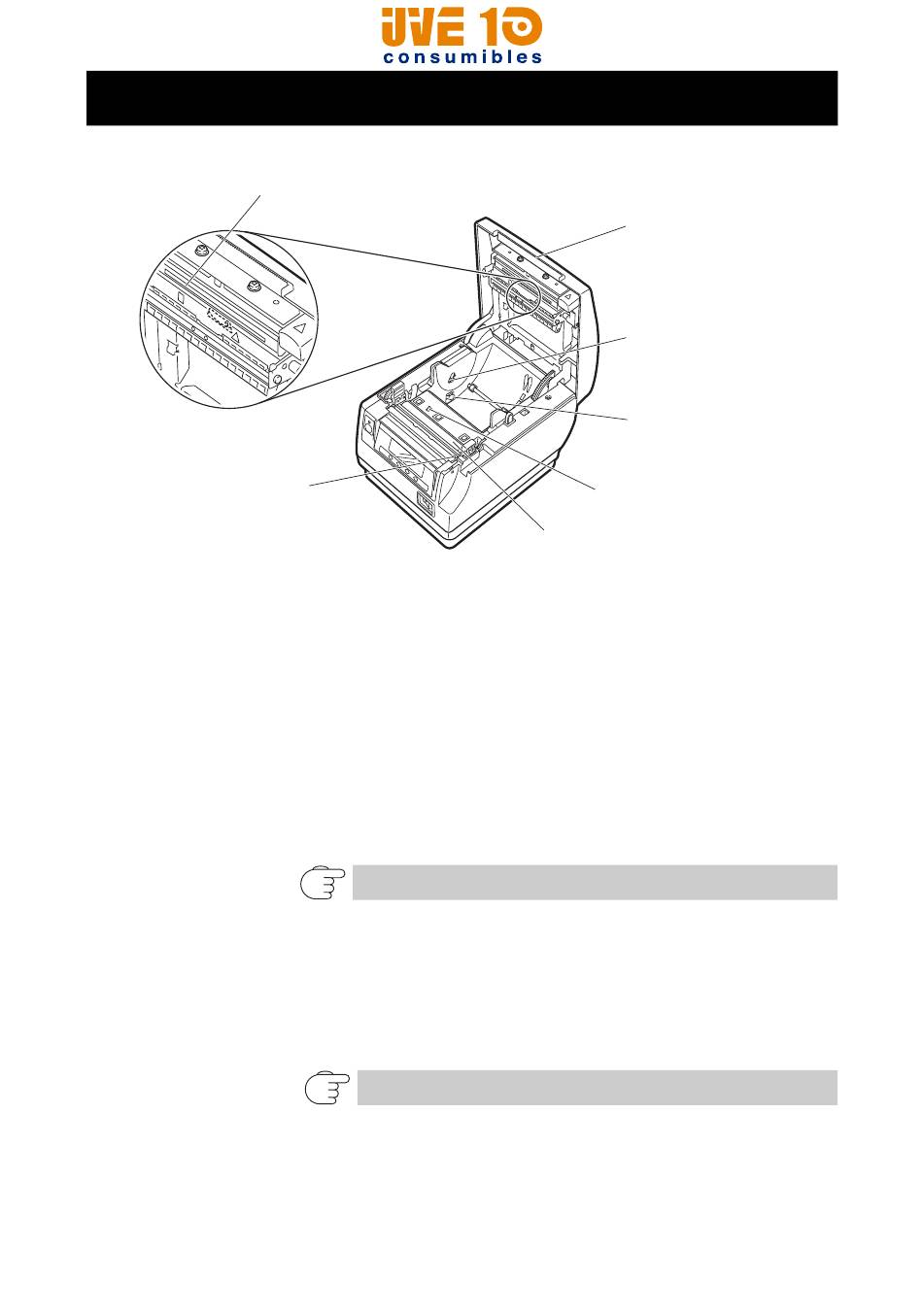

2.2 Inside the Paper Cover
Print head (thermal)
 Platen
Feeds the paper.
Do not remove the platen except to do maintenance.
 Paper near-end sensor (PNE sensor)
Detects when the paper is near the end of the roll. Adjust the position of the
sensor to determine when it detects the end of the paper is near.
 Button to change paper near-end sensor
Change the position of the paper near-end sensor to match the paper being
used.
 Manual cutter
For cutting the paper manually when printing is finished.
 Auto cutter
Automatically cuts the paper when printing is finished.
 Print head (thermal)
Prints characters and graphic data on paper (paper rolls).
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309
Auto cutter
Refer to 3.10 Adjusting the Paper Near-end Sensor
Refer to 5.3 Manual Setting of Memory Switches
V10 CONSUMIBLES S.L.
Platen
— 16 —
Manual cutter
Button to change paper
near-end sensor
Paper near-end sensor
(PNE sensor)
Paper-end sensor
(PE sensor)
