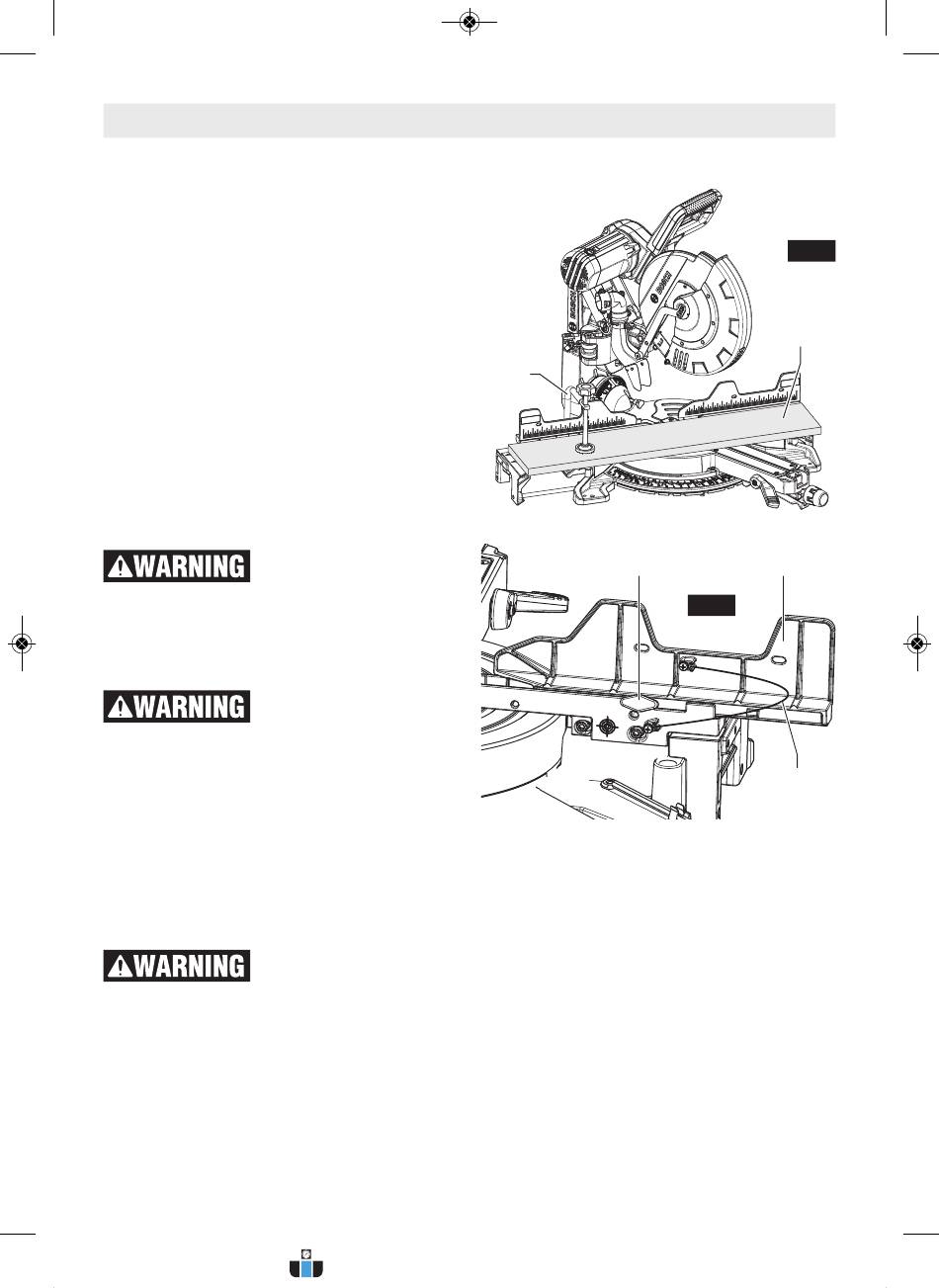

Using the Workpiece Clamp – This clamp eas-
ily secures a workpiece to the table or base, see
fig. 33.
1. Insert the clamp's knurled bar down into a
clamp post hole; there are two post holes lo-
cated in the base behind the fence. The
knurled end must be in the post at least 1/2".
2. Slide the clamp down until its rubber foot
contacts the workpiece.
3. Adjust the clamp height so it does not touch
the sliding fence.
4. Rotate the clamp's knob until the workpiece
is firmly held in place.
5. Move saw head up and down and forward
and back to be sure it clears the clamp.
clamp cannot be used. Support workpiece
with your hand outside the "No Hands" zone.
Do not try to cut short pieces that cannot be
clamped and cause your hand to be in the "No
Hands" zone.
run with the saw Off by conducting a simu-
lated cutting cycle, and observe the projected
path of the saw blade. Keep hands at least six
(6) inches away from the projected path of
the saw blade.
Clamps – Other hold-down devices such as C-
clamps can be used to hold the workpiece
firmly against the table and the fence. Make
sure the clamps are clear of the cutting path.
from hand to saw blade, extend the sliding
fences and sliding base extensions when mak-
ing extreme bevel, miter, or compound cuts
(figure 29).
Operating Sliding Fences
1. Loosen the sliding fence lock knob counter
clockwise ½ turn to loosen fence (see fig.
34).
34
.800.544.2843
Preparing for Saw Operations
Workpiece Support
Clamps
There may be extreme
compound cuts
Be aware of the path of
the saw blade. Make a dry
Sliding Fences
To provide sufficient
(minimum 6")
www.calcert.com
15
10 20
5 25
30
0
Clamp
where
2. Slide fence to the desired position.
3. Tighten the lock knob clockwise to lock slid-
ing fence position.
Removing Sliding Fences
spacing
The sliding fence may need to be removed
when preforming extreme bevel cuts and most
compound cuts.
1. Loosen the sliding fence lock knob counter
clockwise 4 rotations, see fig. 34.
2. Lift and remove sliding fence.
The tethering cable will help prevent the sliding
fence from getting misplaced.
Workpiece
Fence Lock Sliding
Lever Fence
Fig. 34
Tethering
sales@calcert.com
Fig. 33
