To tighten the blade:
 Using the blade wrench, place the flat open end into the
flats on the arbor shaft.
 Insert the closed end of the blade wrench over the blade
nut. Holding both wrenches firmly, push the wrench (left
side) to the back of the machine. Make sure the blade
nut is securely tightened. Do not overtighten.
 Reinstall the throat plate.
 Check all clearances for free blade rotation.
TO INSTALL THE ANTI-KICKBACK PAWLS AND
BLADE GUARD
See Figures 15 - 17.
WARNING:
Replace dull or damaged anti-kickback pawls. Dull or
damaged pawls may not stop a kickback increasing the
risk of serious personal injury.
Anti-kickback pawls should only be installed for through
cuts.
 Unplug the saw.
 Raise the saw blade by turning the height/bevel adjusting
handwheel clockwise.
 Place riving knife in "up" position.
 Reinstall the throat plate.
To install anti-kickback pawls:
 Press and hold the button on the left side of the anti-
kickback pawls.
 Align the slot in the pawls over the rear hole in the riving
knife.
 Push the pawl handle down snapping them into place
and release the button.
NOTE: Pull on the pawl handle to make sure pawls are
securely locked.
To install blade guard:
 Lift the guard lever up to unlock.
 With the front of the blade guard raised, lower the back
of the guard into the middle hole of the riving knife. Push
the front of the guard down until it is parallel to the table
(see figure 16). If the blade guard is not parallel to the
table, the riving knife is not in the "up" position.
 Lock the guard in place by pushing the guard lever down.
NOTE: Blade alignment can be adjusted for different blade
widths. Refer to: To Check and Align the Riving Knife and
Saw Blade. Check the blade guard assembly for clearances
and free movement.
All manuals and user guides at all-guides.com
ASSEMBLY
19
LARGE
BLADE WRENCH
ANTI-KICKBACK
PAWLS
BUTTON
BLADE
GUARD
SMALL BLADE
WRENCH

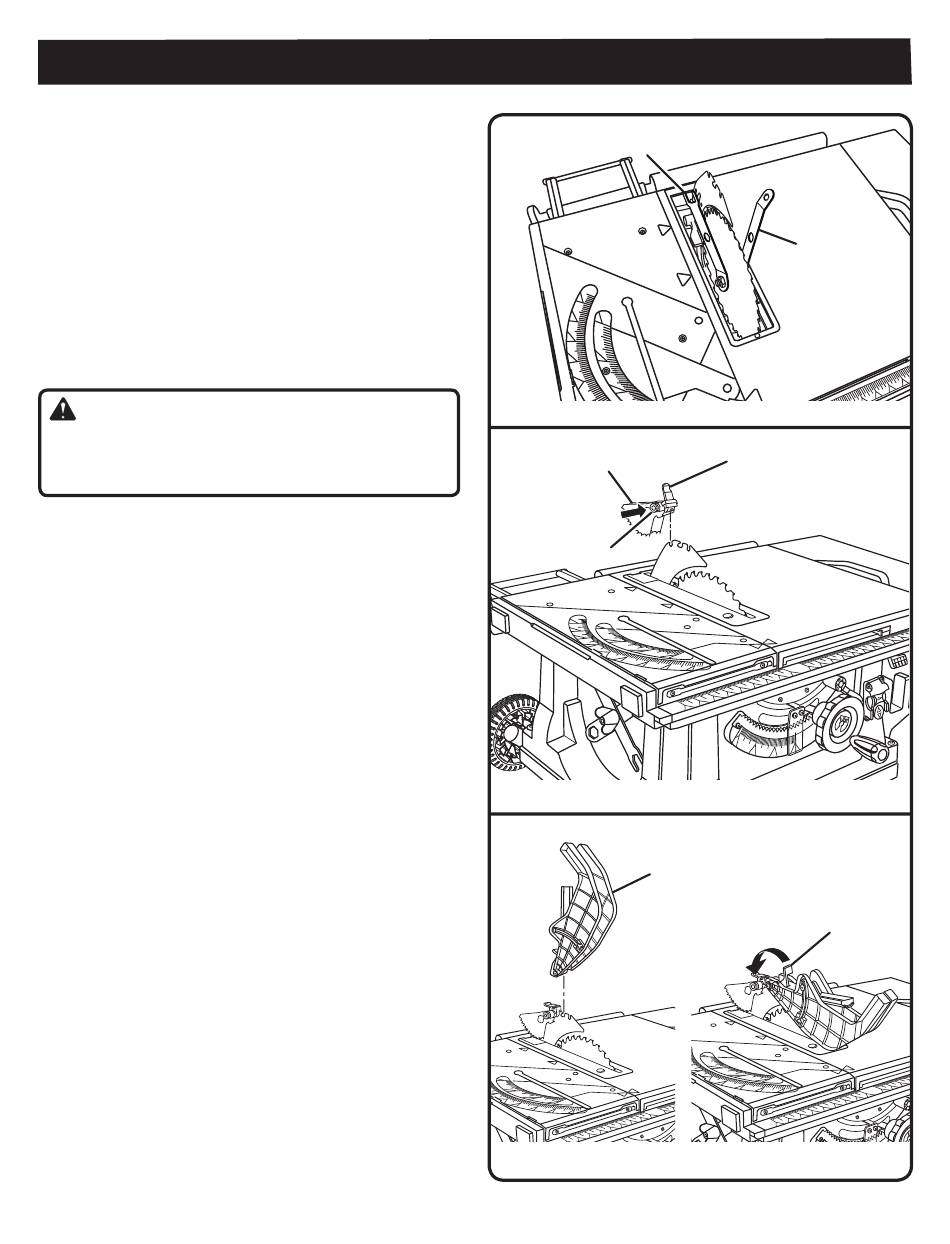

Fig. 14
PAWL
HANDLE
Fig. 15
GUARD
LEVER
Fig. 16
