Hood with 1 internal blower

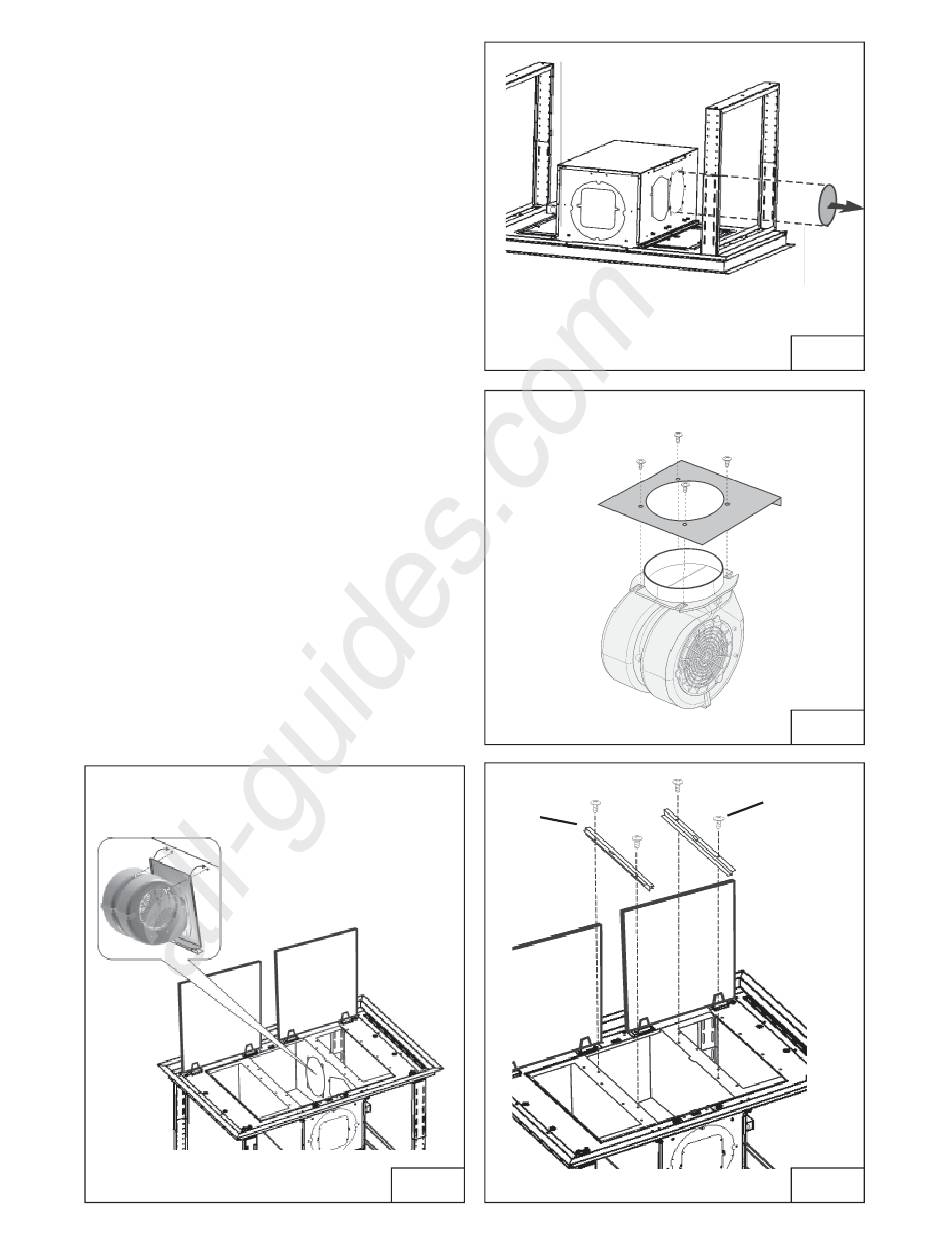

If you choose "B" air outlet (Fig.13):
1. Remove the knockout (Fig.17).
2. Install internal blower into blower plate and
secure using (4) screws supplied with the
motor (Fig.18).
3.Install assembly blower by means (2) M4 x
15 mm screws (Fig.19).
Installation Brackets (ONLY non-ducted
version):
Install the (2) mounting brackets using (4) 3,9
x 6 mm screws (Fig.20).
(2) MOUNTING
SCREWS
M4 x 15 mm
