INSTALLATION INTERNAL
BLOWER
NOTE: The following instructions are for
installing the internal blower only.
Install this range hood only with internal
blower model CBI-290A, CBI-600A or
.
1100A
Hood with 1 internal blower

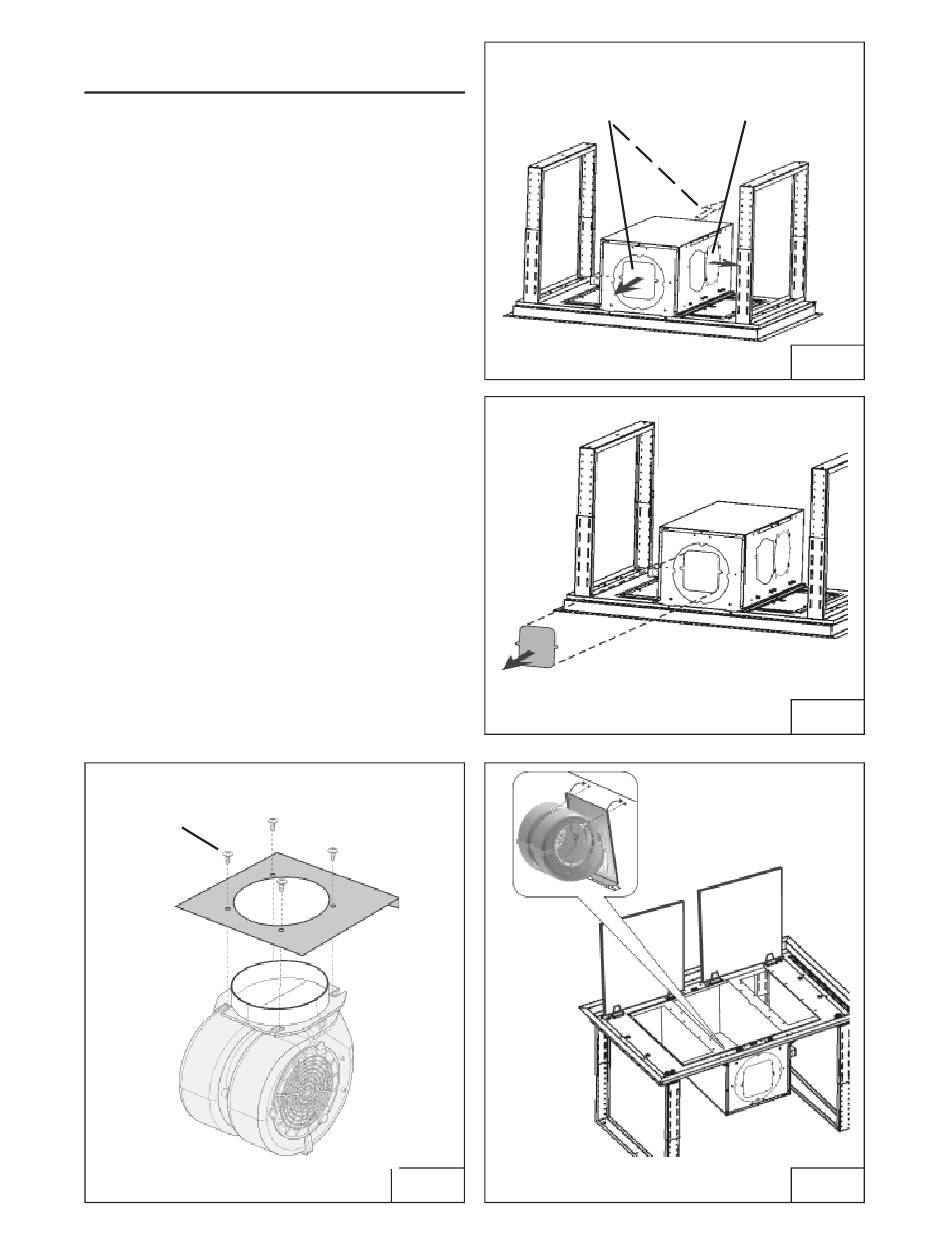

If you choose "A" air outlet (Fig.13):
1. Remove the knockout (Fig.14).
2.Fix internal blower to blower plate and
secure using (4) screws supplied with the
motor (Fig.15).
3.Install assembly blower/plate by means (2)
M4 x 15 mm screws (Fig.16).
(4) MOUNTING
SCREWS
(Supplied with the
motor)
All manuals and user guides at all-guides.com
PBI-
FIG.15
- 20 -
AIR OUTLET "A"
(2) MOUNTING
SCREWS
M4 X 15 mm
AIR OUTLET "B"
FIG.13
FIG.14
FIG.16
