10 Service and maintenance

WARNING
Any maintenance or repair work that re­
quires opening of the motor or gear housing
should only be carried out by an authorised
Customer Service Centre (name supplied by
your dealer)!
► Maintenance or repair work carried out by
an unauthorised person can lead to the
wrong connection of the power cord or oth­
er components, which in turn can lead to
accidents with serious consequences.
CAUTION
Certain cleaning agents and solvents are
harmful to plastic parts.
► Some of these include, but are not limited
to: Gasoline, Acetone, Methyl Ethyl Ketone
(MEK), Carbonyl Chloride, cleaning solu­
tions containing Chlorine, Ammonia, and
household cleaners containing Ammonia.
► Damaged safety devices and components
must be repaired or replaced in a recog­
nised specialist workshop, unless otherwise
indicated in the operating instructions.

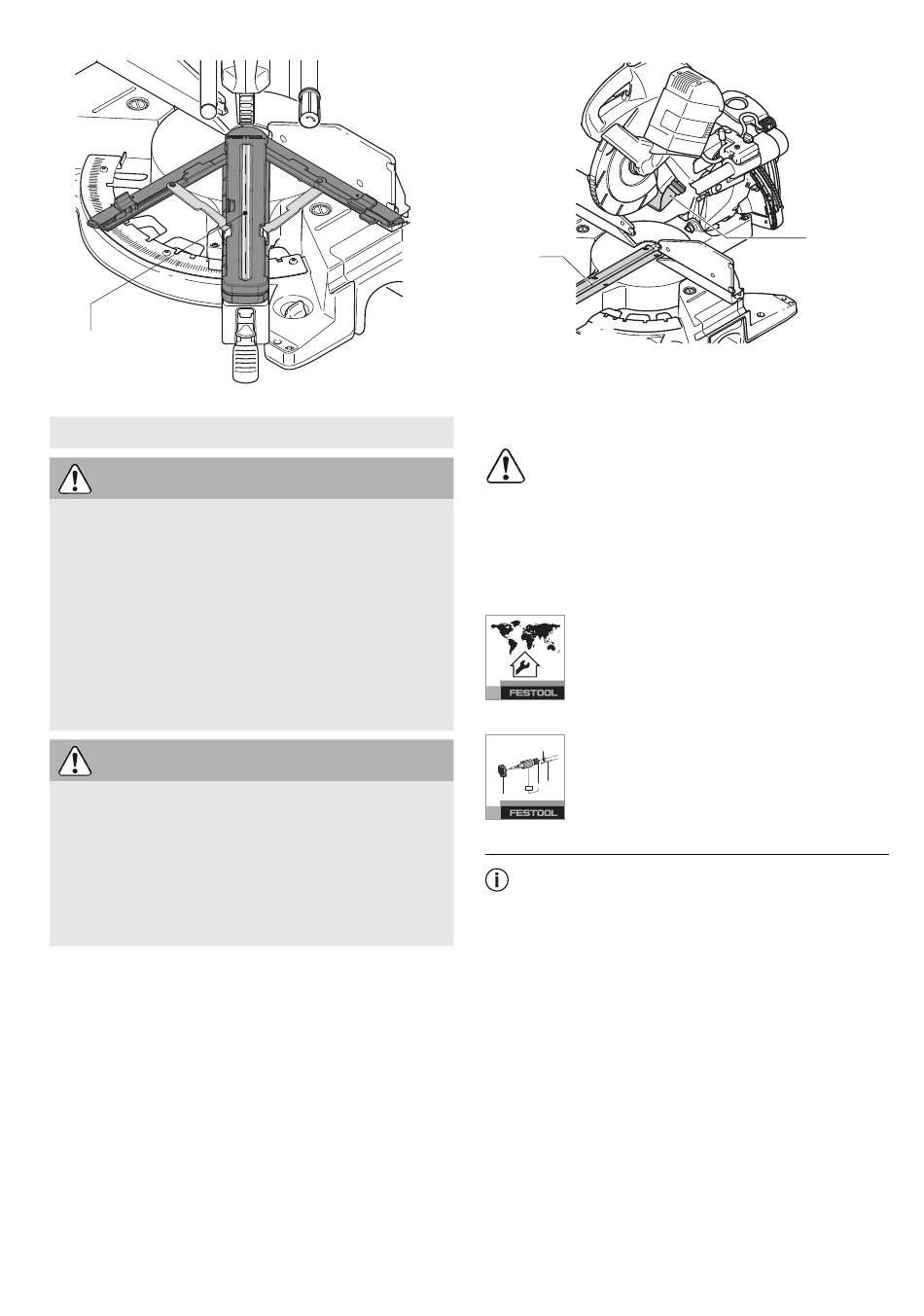

► Regularly clean the table top insert [20.1]
as well as the extraction channel of the chip
deflector [20.2] by blowing out with com­
pressed air or using a brush to remove
wood chips, dust deposits and remains of
workpieces.
20.1
20
► To ensure constant air circulation, always
keep the cooling air openings in the housing
clean and free of blockages.
Cleaning the machine regularly, espe­
cially the adjusting devices and guides, is
an important safety factor.
The tool is equipped with special self-discon­
necting carbon brushes. If they wear out, the
power supply is disconnected automatically and
the tool stops.
Customer service and repairs must
only be carried out by the manufac­
turer or service workshops. Find the
nearest address at:
www.festoolusa.com/service
Always use original Festool spare
EKAT
4
parts. Order no. at:
www.festoolusa.com/service
5
3
2
1

10.1 Adjusting the laser

The laser beam has been set correctly
during manufacture. Only turn the adjust­
ing screws out of position in the cases that
are specified.
If the laser beams do not align with the cutting
edge, you can readjust the two lasers. Use a
screwdriver (3/32" (2.5 mm) width) to do this.
► Pierce the adhesive labels at the marked lo­
cations ([21.1] to [21.6]) with the screwdriv­
er to access the adjusting screws under­
neath.
► Insert a sample workpiece into the machine
to check the laser.
► Saw a groove into the workpiece.
► Swivel the head of the saw upward and
check the setting.
