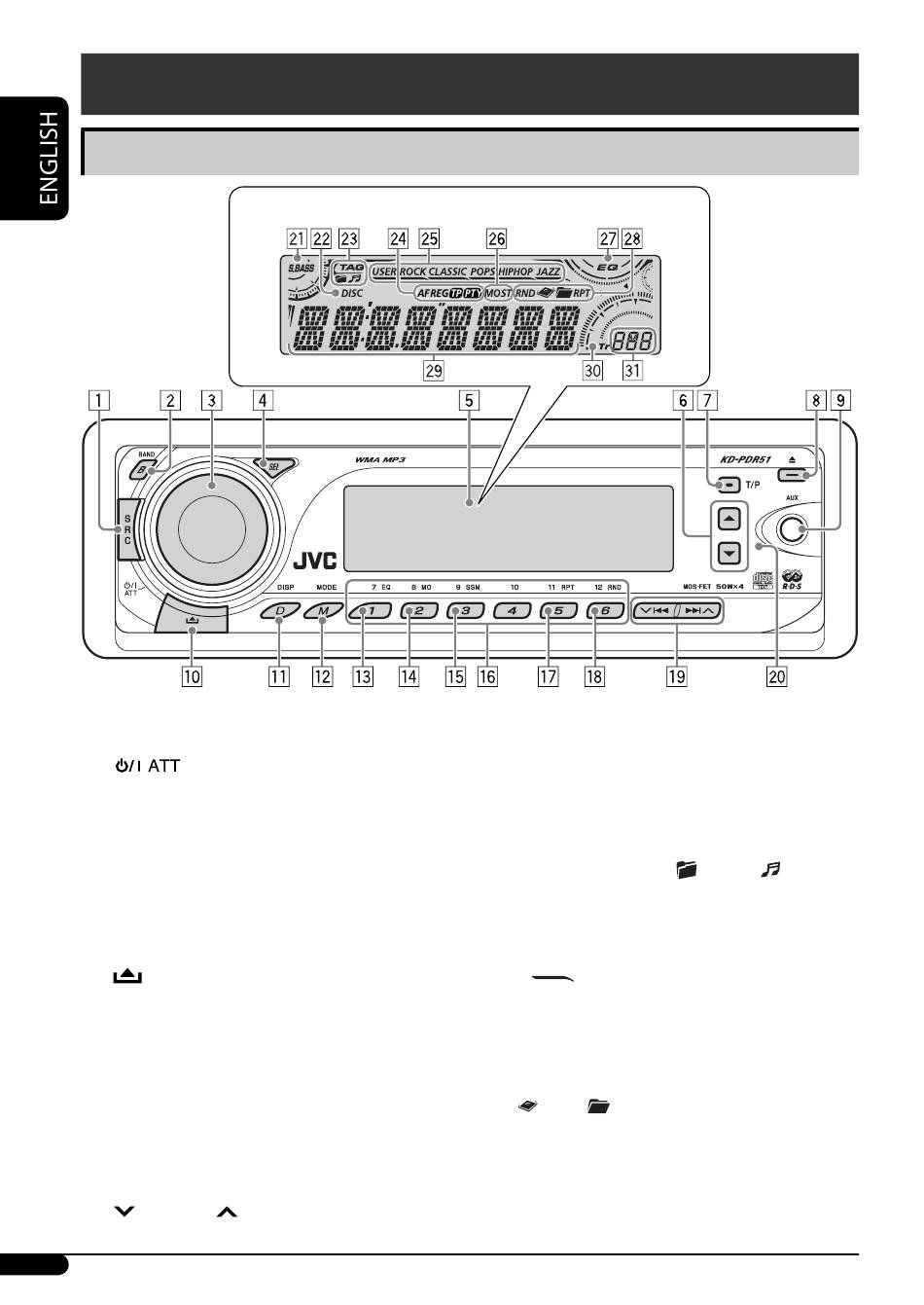

Control panel

1
SRC (source) button
2
B BAND button
3
(standby/on attenuator) button /
Control dial
4
SEL (select) button
5

Display window

6 5 ∞
(up) / (down) buttons
7
T/P (traffic programme/programme type) button
8 0
(eject) button
9
AUX (auxiliary) input jack
p
(control panel release) button
q
D DISP (display) button
w
M MODE button
e
EQ (equalizer) button
r
MO (monaural) button
t
SSM (Strong-station Sequential Memory) button
y
Number buttons
u
RPT (repeat) button
i
RND (random) button
4 ¢
o
/
4

Parts identification

Display window
buttons
;
Remote sensor
DO NOT expose the remote sensor to strong light
(direct sunlight or artificial lighting).
a
S.BASS (super bass) indicator
s
DISC indicator
d
Disc information indicators—
TAG (Tag information),
f
RDS indicators—AF, REG, TP, PTY
g
Sound mode (iEQ: intelligent equalizer) indicators
—USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ
• lights up for the selected item.
h
Tuner reception indicators—MO (monaural),
ST (stereo)
j
EQ (equalizer) indicator
k
Playback mode / item indicators— RND (random),
(disc), (folder), RPT (repeat)
l
Main display
/
Tr (track) indicator
z
Source display / Time countdown indicator
(folder), (track/file)
