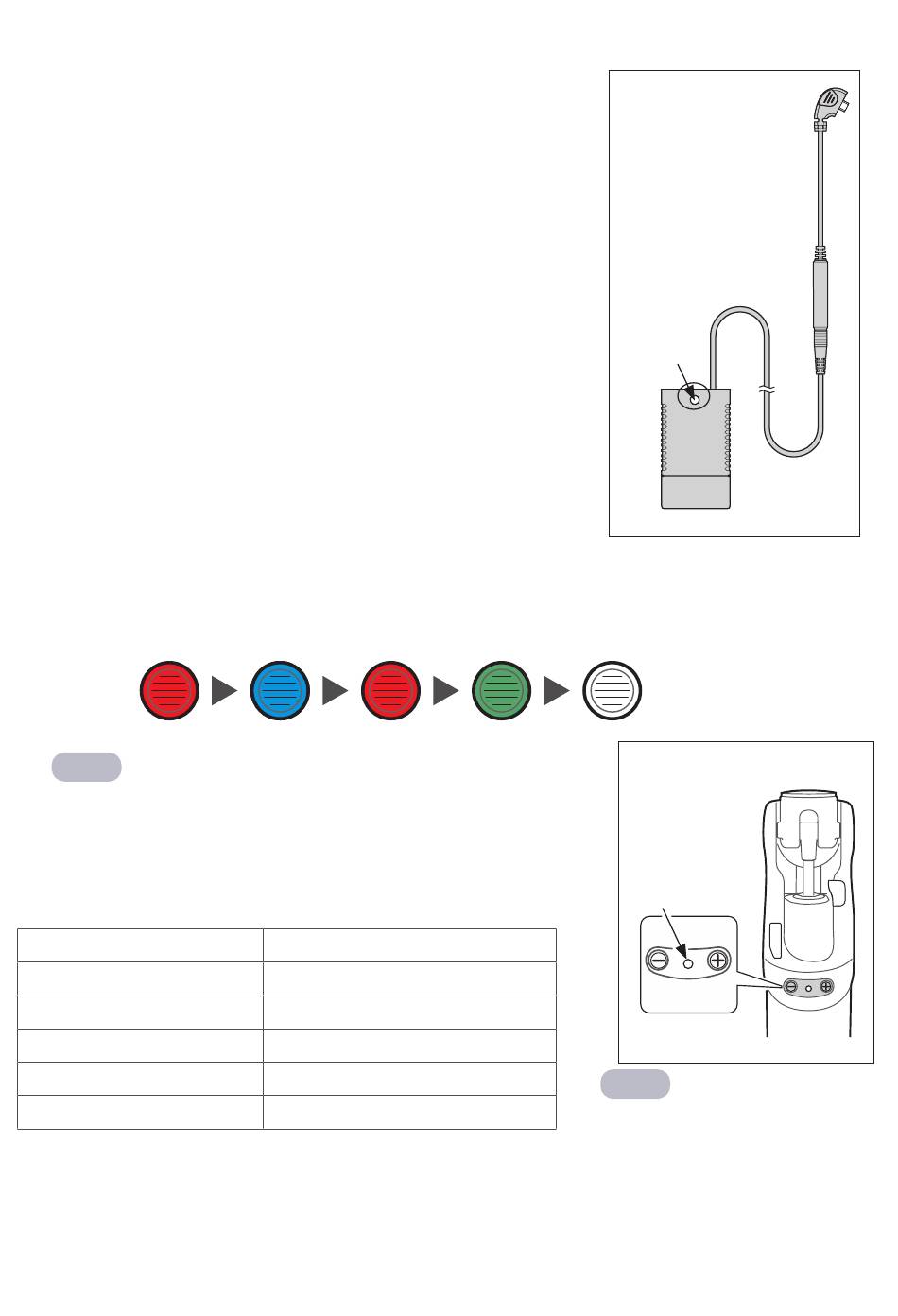

Battery Charging
Fully charge the battery before first use.
We recommend that the Linx limb should be fully
charged every night. It should take 8 hours to charge
fully. We also recommend battery charging whenever
convenient.
Step by Step Guide:
1. Lay the limb on a flat surface.
2. Switch the Battery On/Off switch to ON.
3. Connect the charger plug to the charging socket on
the posterior part of the knee module.
4. Check the Battery Charger LED is flashing green to
confirm the battery is charging.
5. Refer to table below to ensure limb is charging.
6. Disconnect from the charger when charged
sufficiently.
7. Wait for 30 seconds while observing the Linx Limb
LED changing color as indicated:
Red
Linx Limb
LED
8. After a successful reset sequence, 2 short
1.0N+
beeps will be heard.
9. If reset sequence is unsuccessful or the LED remains
Red, switch the battery off then on and repeat from
step 7.
Battery Charger LED
Yellow
Green > fast flashing
Green > slow flashing
Green
Yellow > fast flashing
NOTE:
If the charger LED is yellow and the limb is
making a clicking noise check that the Battery
switch is in the ON position.
(continued)
Blue Red
Charging state
Standby
Fast charging
Close to full charge
Maintain (trickle charge)
Error (Ensure Battery Switch is ON)
Green Off
1.0N+
disable the audible reset
confirmation by pressing
and holding the [ + ] and [ - ]
buttons simultaneously for
2 seconds. The change will
be confirmed by 2 short
beeps.
6
Battery
Charger
Battery
Charger
LED
Linx limb
Linx
limb
LED
You can enable or
