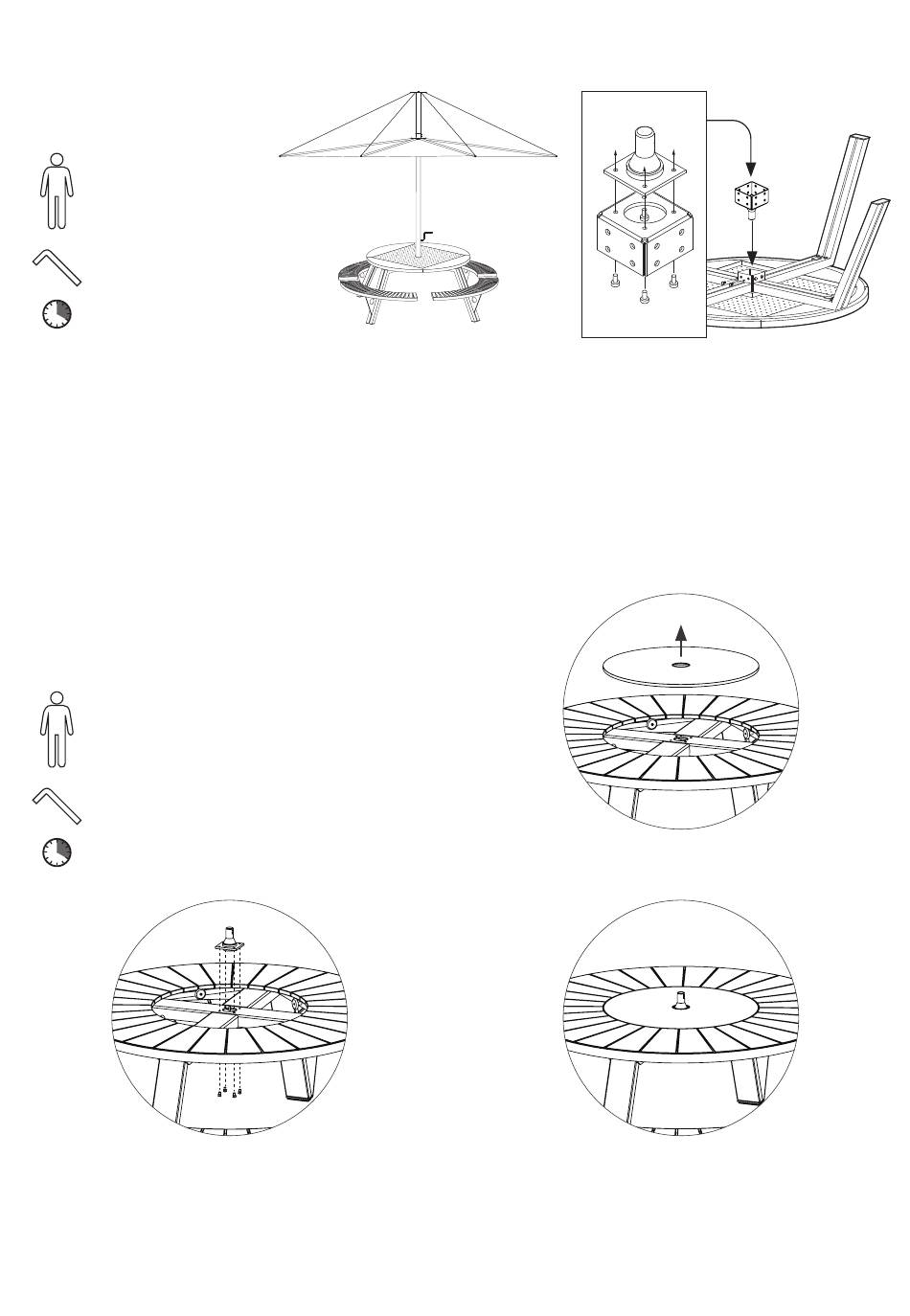

ASSEMBLY INUMBRA INTO GARGANTUA

WHAT YOU NEED

1 person
no. 5 hex key
+/- 20 min.

ASSEMBLY INUMBRA INTO PANTAGRUEL

WHAT YOU NEED
1 person
no. 5 hex key
+/- 20 min.
2. Put the inumbra insert in the hole in the middle of the
tabletop. Make sure that its conical part is facing
upwards. Fasten the insert to the table, putting the
bolts through the bottom of the table.
1. Remove the central cube, which
keeps the four legs together. Fix
the stainless steel element to the
cube. Then reattach the cube to
the Gargantua table making sure
the conical part is protruding
from the tabletop.
1. Remove the Lazy Susan from the Pantagruel.
3. Put the Lazy Susan back into its original position.
4. Put the parasol on the stainless steel tube as explained
in point 6 - 7 - 8 on page 7.
MATERIAL NAME DATE
Bram Coudijzer
DRAWN
NUMBER
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM
COMMENTS:
SIZE FILENAME
PROPRIETARY AND CONFIDENTIAL
A4 IUW40 + bevestigingen
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY
OF EXTREMIS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF EXTREMIS IS PROHIBITED. SCALE: 1:3 WEIGHT:
SHEET 1 OF 1
2. Install the parasol's tube onto the
stainless steel tube as explained in
point 6 - 7 - 8 on page 7.
english 5
