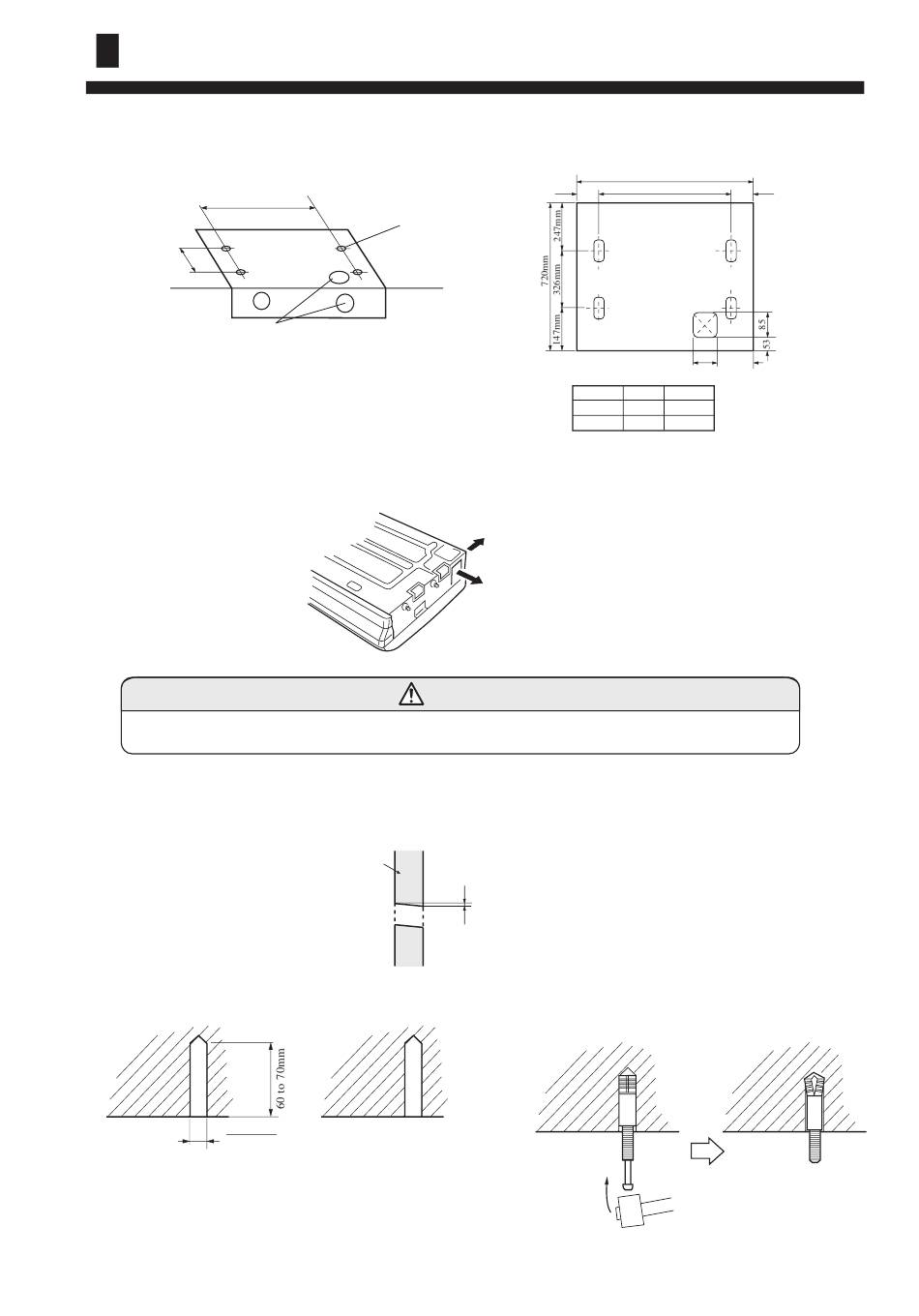

Installation of Indoor Unit
B. UNDER CEILING TYPE
Using the installation template, drill holes for piping and anchor bolts(for holes).(Fig.10)
(Fig. 10)
900mm
Installation
template
200mm
Drilling position
for piping
For series 14,18,24
1. DRILLING FOR PIPING
Select piping and drain directions. For series 28,36,42.only rear side (Fig.11)
(Fig. 11)
Install the drain hose at the rear; it should not be installed on the top or right side.
2. DRILLING HOLES FOR ANCHOR BOLTS AND INSTALLING THE ANCHOR BOLTS
When the directions are selected, drill 80mm and 50mm or 150mm dia. hole on the wall so that the hole is tilted
downward toward the outdoor for smooth water flow.
(Fig. 12)
With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.12)
12.7mm
Insert the anchor bolts into the drilled holes, and drive the pins
completely into the anchor bolts with a hammer. (Fig. 13)
All manuals and user guides at all-guides.com
Drilling position
for anchor bolt
Ceilling
Wall
CAUTION
Wall
6mm
40
Series
A
28
1320
36,42
1920 1840
Rear (Install the drain hose
in the direction.)
Right
(Fig. 13)
16
A
B
40
87.5mm
100mm
B
1240
