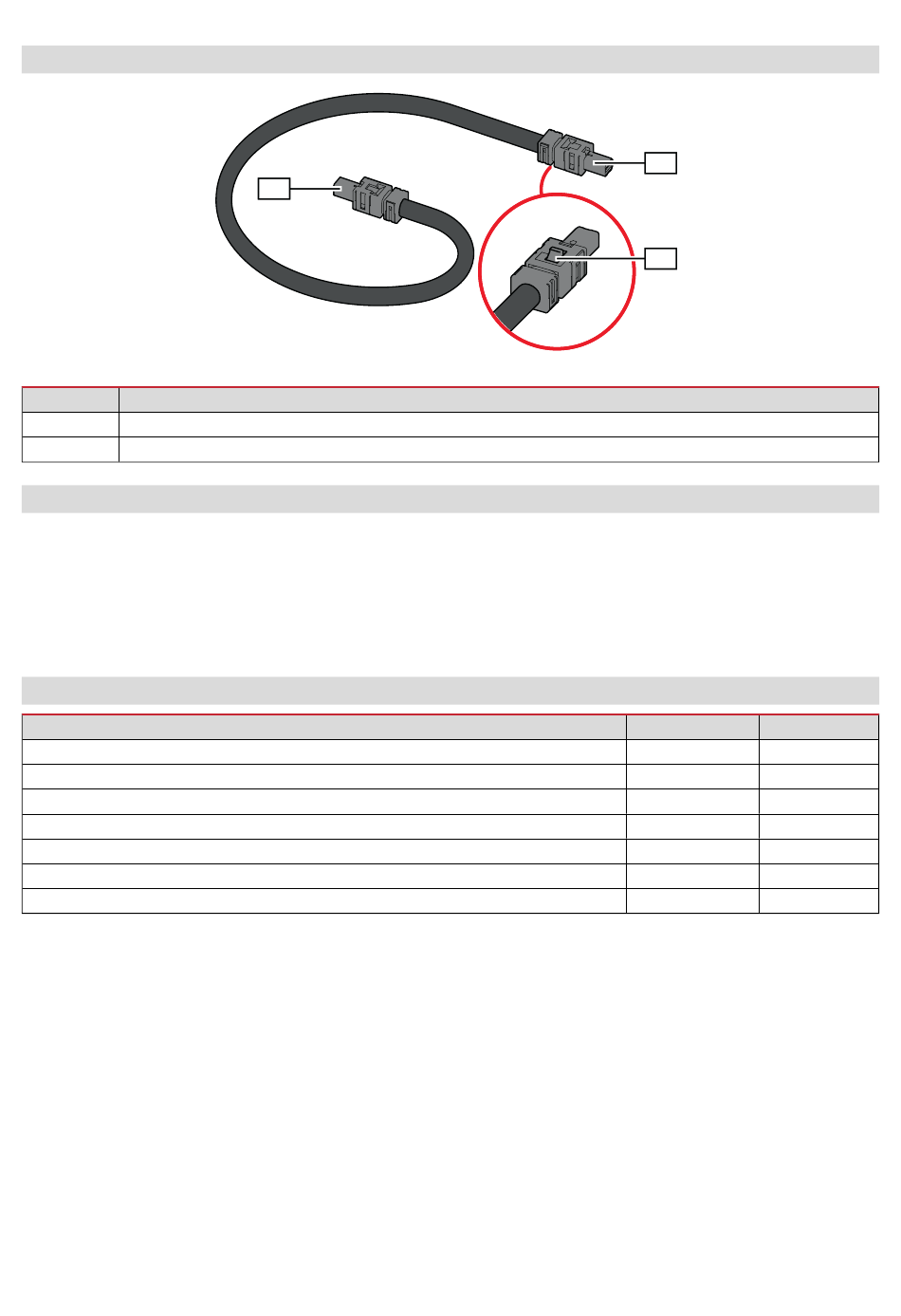

CARLO GAVAZZI WM50 Serie Manuel D'instructions page 8

TCD12WS
Part
A Connection cables with WM50 or TCD12
B Tab for connector removal
UCS (Universal Configuration Software)
UCS is available in desktop and mobile versions.
It can connect to WM50 via accessory communication modules (Modbus TCP/IP or Modbus RTU protocol) or via OptoProg (via
USB or Bluetooth).
The following is possible with UCS:
configure WM50, including accessory modules and current sensors
l
view system status for diagnostics and configuration checks
l
UCS function overview
Function
Configure the system with WM50 connected (online configuration)
Configure the system with WM50 disconnected (offline configuration)
View main measurement *
View input and output status *
View main unit, channel and load alarm status *
Record selected variable measurements *
View help to install WM50 and connect with OptoProg
Note: *functions only available with WM50 connected.
A
Description
WM50 - Instruction manual | 26/04/2022 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
A
B
UCS desktop UCS Mobile
x x
x x
x x
x x
x x
x
- x
-
7
