4.3. Installing the foil temperature sensor

The foil temperature sensor is only required for infrared plate heating sys-
tems. Observe the details of the plate heating system manufacturer here.
The foil temperature sensor is installed directly on the infrared heating plate and
fixed with a cable strain relief (see Fig. 5: Installing the foil temperature sensor
on page 14).
Install the sensor head 1 of the foil temperature sensor directly between the in-
sulation and heating foil 4.
1. Secure the foil temperature sensor with the strain relief 2 outside the foil
area.
2. Lay the 2-pin cable 3 in the cabin wall and secure with cable ties.
3. A foil temperature sensor must be activated to use it (6.4. Foil sensor on
page 22).

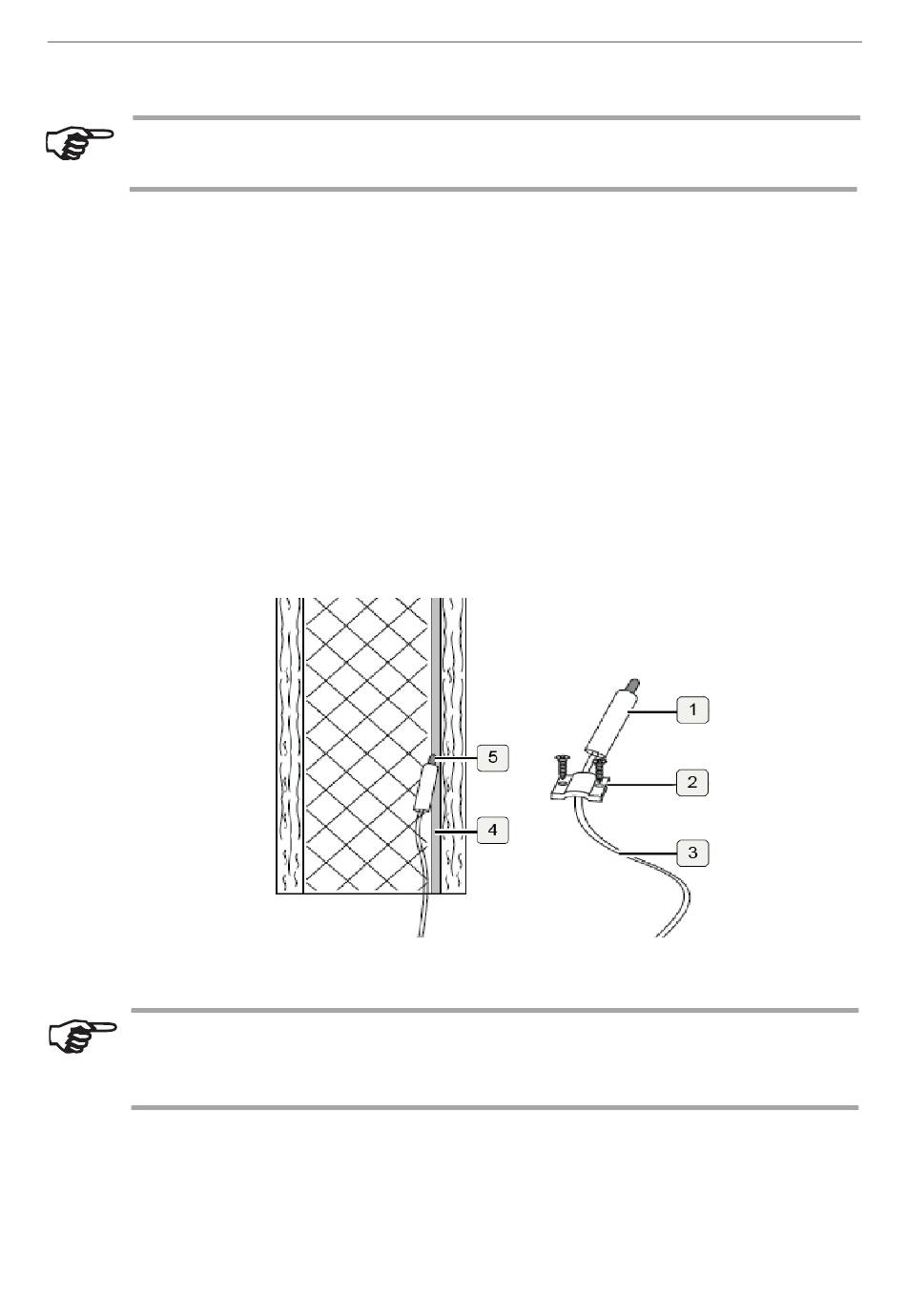

Fig. 5: Installing the foil temperature sensor
If the foil temperature sensor is not fitted directly on the infrared plate,
it will produce incorrect measured values. Install the foil temperature
sensor directly on the foil.
