Installation Instructions
3. PREPARE THE AIR
CONDITIONER

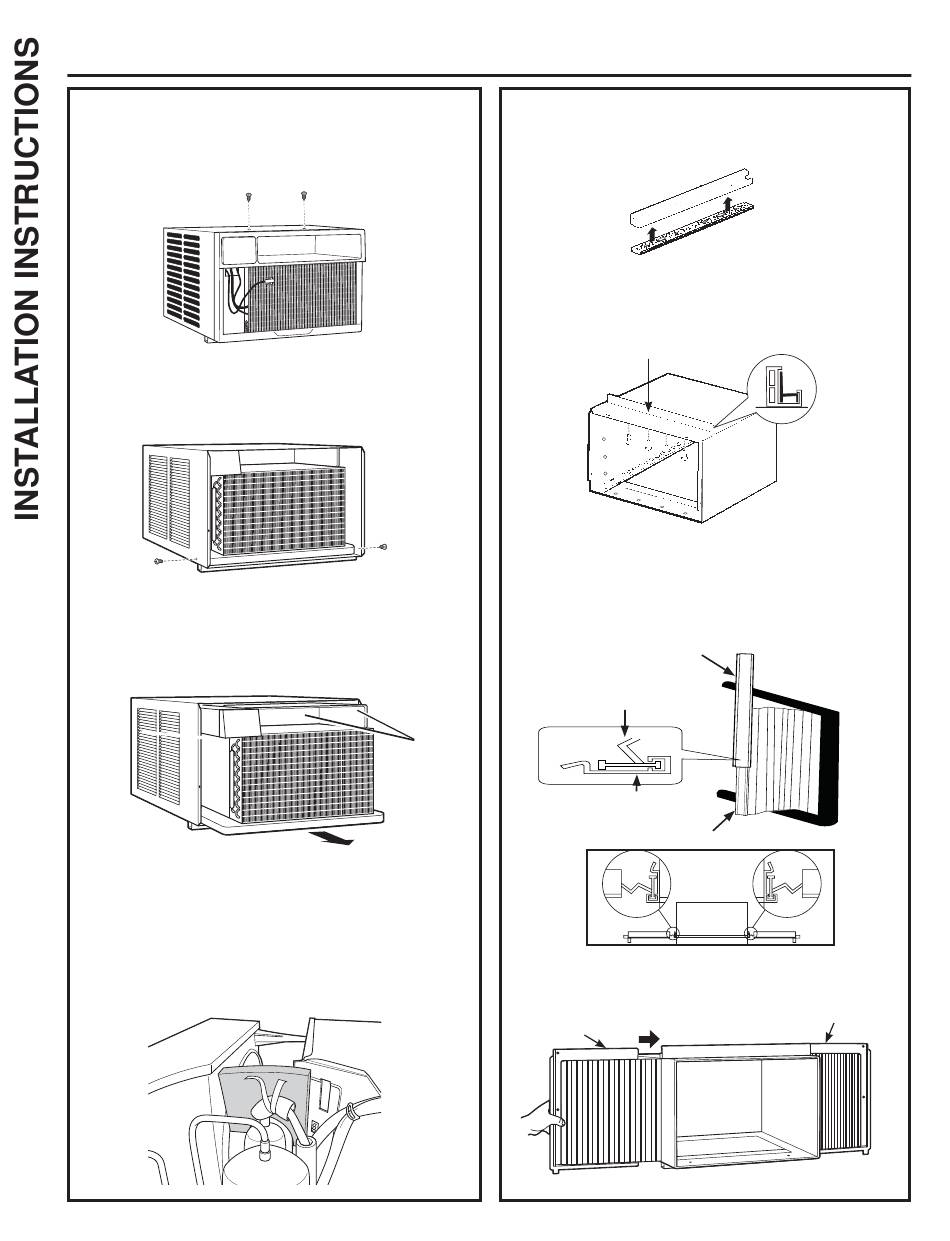

E. Remove the shipping screws located on the top
of the case.
F. Remove the ground screws from each side of the
case. Keep them in a safe location.
NOTE: Be sure to save the ground screws. You will
need them later in the installation.
G. Slide the air conditioner from the case by
gripping the base pan handle, lifting up on the air
conditioner, and pulling forward. Have a second
person brace the case. Do not pull or lift on the
styrofoam discharge area.
H. When the front grille is removed the control panel
will still be attached by a harness. Turn the grille
around so you can see the back side of the grille.
Remove the 2 screws to separate the control
panel housing from the grille.
NOTE: Be sure to save these screws. You will
need them later in the installation.
10
4. PREPARE THE CASE
A. Attach the top rail gasket to the bottom of the top
mounting rail.
B. Install the top mounting rail with 4 type A screws
from the inside of the case. Press firmly to drive
the screws into the gasket and through the top
mounting rail.
C. Slide each side rail onto the edge of each
according panel. The figure shows the
orientation of each accordion panel and side
retainer assembly relative to the case from a top
view of the unit.
Do not
pull or
lift in this
area—
damage
to the
unit may
result
FRONT
D. Slide the left and right accordion panels into the
top and bottom mounting rails.
Top mounting rail
Side Rail
Window Filler Panel
Side Rail
Window Filler Panel
Top left
Top right
49-5000551 Rev. 0
