INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE
Outlet box
Select a location to install the Wall Control System Transmitter and Wall
Plate.
Wall plate
Switch
REMEMBER also this should state that the control is not to be mounted
Screws
outdoors. You can safely use the transmitter outdoors but it should be
Screws
mounted indoors away from excess heat and away from contact with
water or humidity.
Install the wall plate using an existing wall switch outlet box. Make sure
the electrical power is TURNED OFF at the main panel before
continuing.
If your ceiling outlet box has a ground wire (green or bare copper)
connect it to the ground wire from the wall switch and/or the ceiling
mounting bracket and push back inside the outlet box.

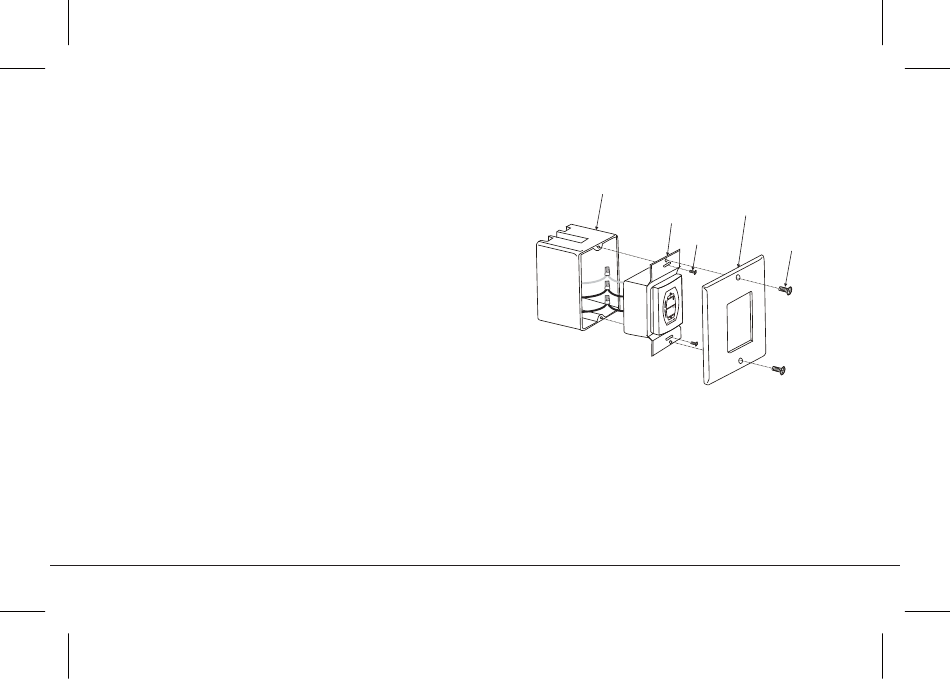

Fig. 21
Install the wall plate on the existing wall outlet box using the screws
provided. (Fig. 21)
After installing the wall anchors, attached the wall plate with the
mounting screws to finish the installation.
