• Icons on LCD Display
Voltage is over 30V (AC or DC)
Warming
flexible coils
traditional clamps
Relative
High Edge time

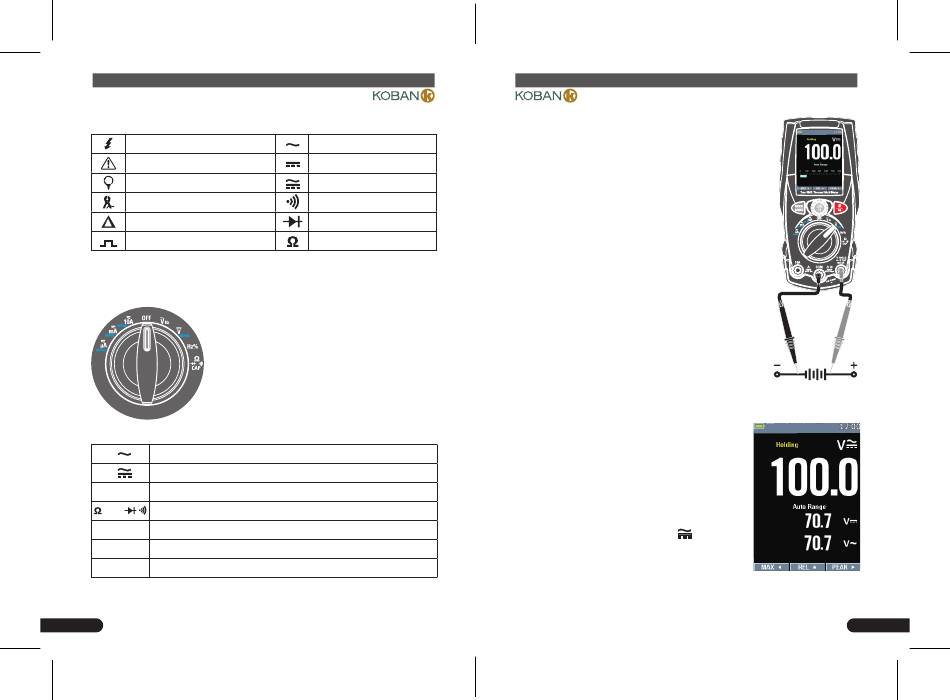

3.4. Understanding the Rotary Switch

Select a primary measurement function by positioning
the rotary switch to one of the icons around its
perimeter. For each function, the Meter presents a
standard display for that function (range, measurement
units, and modifiers). Button choices made in one
function do not carry over into another function.
V AC voltage measurements
V DC and AC+DC voltage measurements
Hz% Frequency and Duty measurements
CAP Resistance, Diode test, capacitance and CONTINUITY measurements
A AC, DC and AC+DC amps measurements
mA
AC, DC and AC+DC milliamps measurements
μA
AC, DC and AC+DC microampere measurements up to 4,000 μA
10
EN
AC Voltage or Current
DCVoltage or Current
AC+DC Voltage or Current
Continuity function
Diode function
Ohms
EN

4. DMM Measurement and Setup

4.1 DC Voltage Measurements

CAUTION: Do not measure DC voltages if a motor on the
circuit is being switched ON or OFF. Large voltage surges
may occur that can damage the meter.
• Set the function switch to the VDC position.
• Insert the black test lead banana plug into the negative
COM jack.
Insert the red test lead banana plug into the positive
V jack.
• Read the voltage in the display.

4.2. AC+DC Voltage Measurements

CAUTION: Do not measure DC voltages if a motor on the
circuit is being switched ON or OFF. Large voltage surges
may occur that can damage the meter.
Set the function switch to the VDC position.
• Insert the black test lead banana plug into the negative
COM jack. Insert the red test lead banana plug into the
positive V jack.
• Press the MODE key to switch the
Voltage functions.
• Read the AC+DC voltage in the display.
KMIR-01
V AC+DC
11
