9.16

Permitted mounting positions

Correction to section 3.1.3 of the operating instructions
Optional installation locations
The device can be mounted horizontally in control desks, switching cabinets and 19" rack
systems.
Audio interfaces
Remarque
Figures in sections 1.2 and 3.3.6.2 of the operating instructions
The devices are supplied with monochrome black audio jacks as of May 2017.
9.17

Markings and symbols

9.17.1

Overview

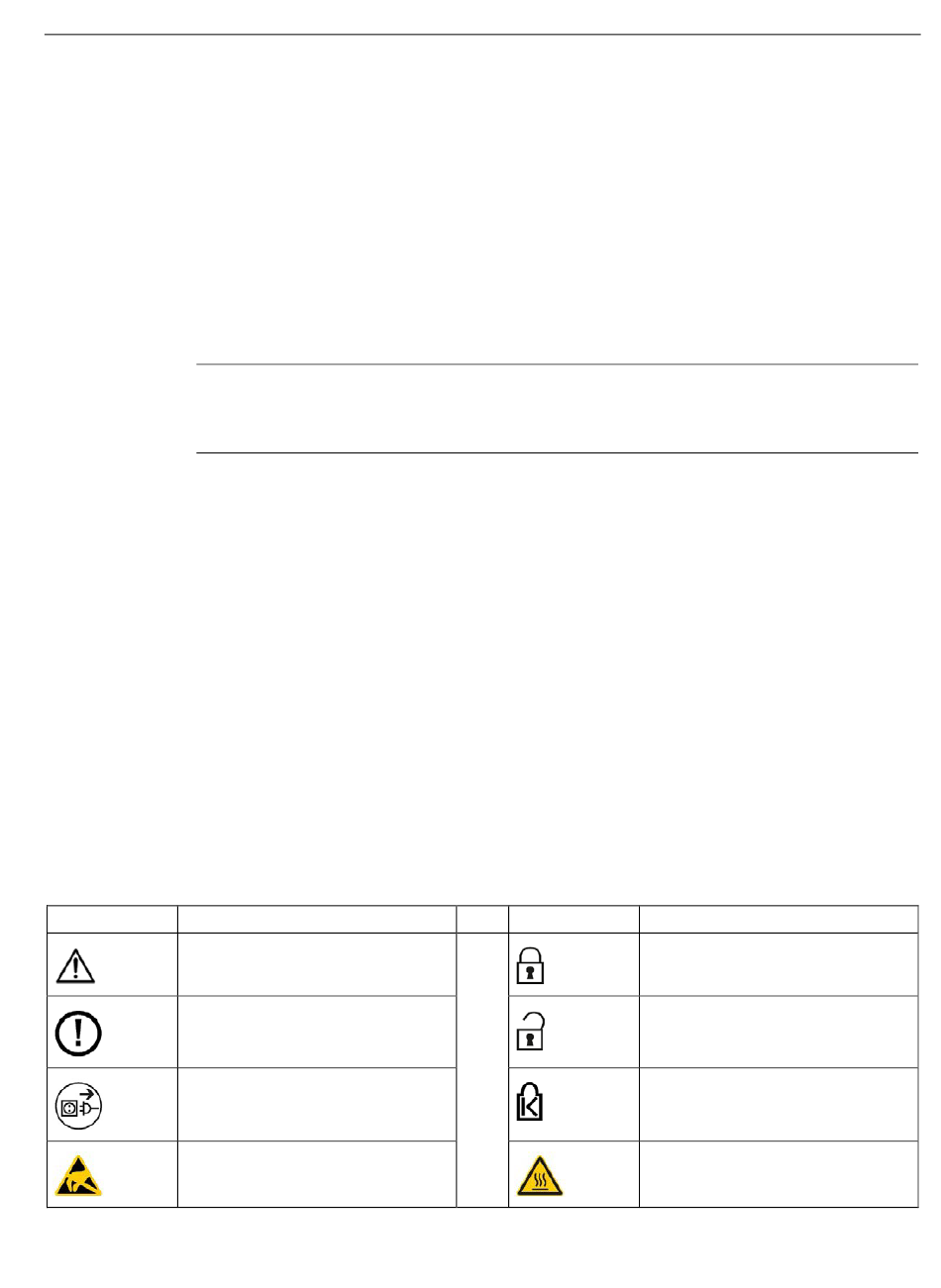

The following tables show all the symbols which may be found on your SIMATIC industrial
PC, SIMATIC industrial monitor or SIMATIC Field PG in addition to the symbols which are
explained in the operating instructions.
The symbols on your device may vary in some details from the symbols shown in the
following tables.
9.17.2

Safety

Symbol Meaning
Warning, observe the supplied docu-
mentation.
Attention, radio equipment
Disconnect the power plug before
opening
Attention ESD (Electrostatic sensitive
device)
SIMATIC IPC647D
Instructions de service, 03/2018, A5E32996307-AC
IMPORTANT: Updated information for IPC647D
9.16 Permitted mounting positions
Symbol Meaning
Lock is closed
Lock is open
Opening for Kensington lock
Warning of hot surface
