Multidis SFQ

Transport and storage

You can obtain spare parts and accessories
from specialist stores.
When selecting the cabinet, please note
that the overall depth and length of the
Multidis SFQ heating circuit distributor/
collector will increase if you use
accessories such as ball valves or heat
meters.
4.1

Ball valve

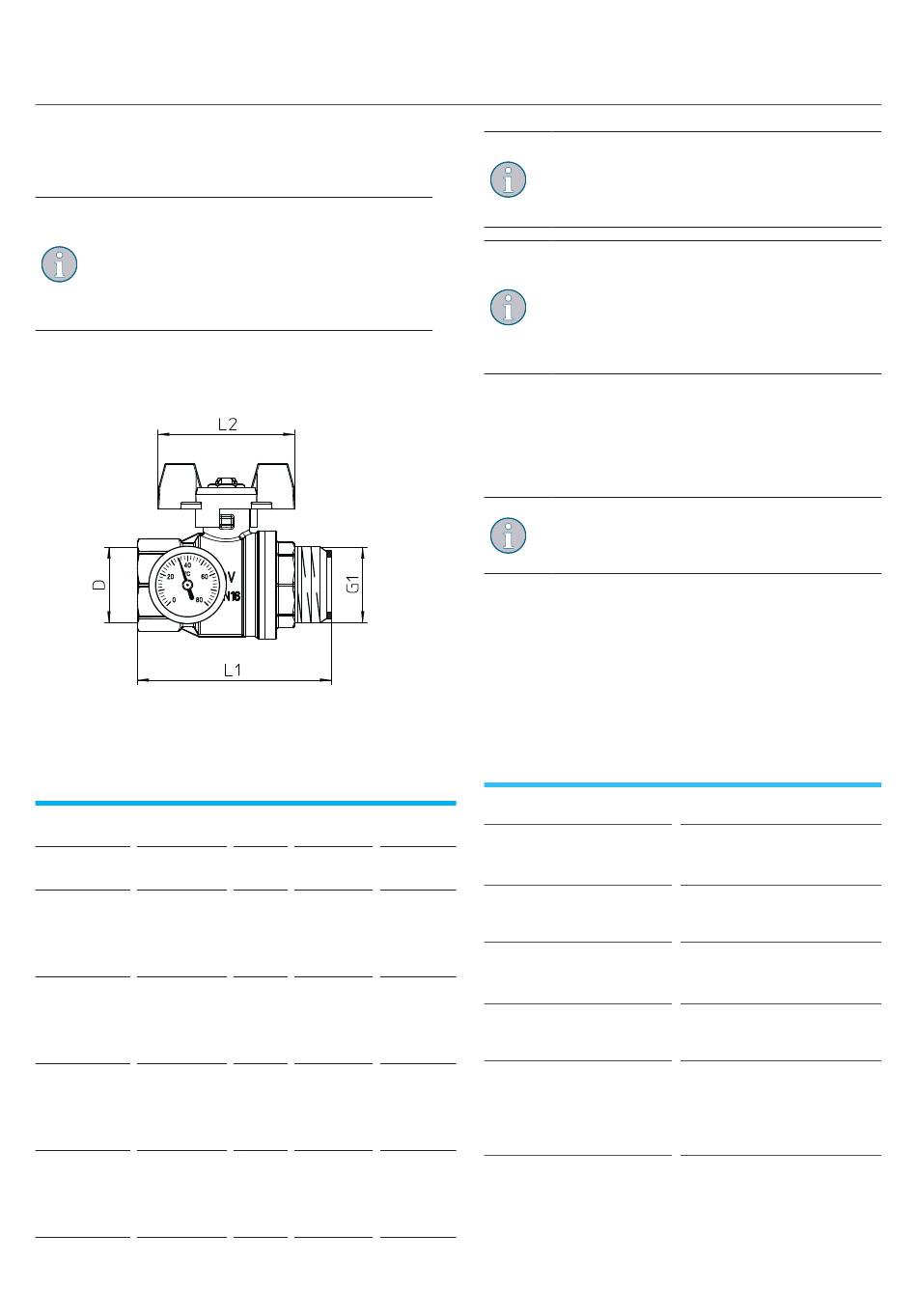

Fig. 7: Dimensions of the ball valve
Item no. Size
1406383 DN 20
1406384 DN 25
1406483 DN 20
(with
thermo-
meter)
1406583 DN 20
(with
thermo-
meter)
1406484 DN 25
(with
thermo-
meter)
1406584 DN 25
(with
thermo-
meter)
22
D L1 L2
G ¾ 55 mm 57 mm
G 1 80 mm 60 mm
G ¾ 73 mm 60 mm
G ¾ 73 mm 60 mm
G 1 85 mm 60 mm
G 1 85 mm 60 mm
To obtain the length with the ball valve
attached, add the length of the Multidis
SFQ heating circuit distributor/collector
(L) to the length of the ball valve (L1).
•
The ball valves item no. 1406483 and
1406484 have a red T-handle which
shall mark the supply pipe.
•
The ball valves item no. 1406583 and
1406584 have a blue T-handle which
shall mark the return pipe.
4.2

Heat meter

The installation of commercially available G 1
and G ¾ heat meters is possible.
The dimensions of the heat meter can
be obtained from the corresponding
operating instructions.
5. Transport and storage
Transport the product in its original packaging.
Store the product under the following
conditions:
Temperature range
Relative air
humidity
Particles
Mechanical
influences
Radiation
Chemical
influences
-20 °C to +60 °C
Max. 95 %
Store in a dry and dust-
protected place
Protected from
mechanical shoc
Protected from UV-rays
and direct sunlight
Do not store together
with solvents,
chemicals, acids, fuels
or similar substances
140495282-V01.09.2021
