PLANUX KIT SYSTEM EXPANDABILITY

In diagrams PXK/EN/100C and PXK/EN/101C on Page 66, 68 a
potential system configuration is illustrated which offers the option of
managing a maximum of 30 PLANUX KITS through an Art. 4660C
located, for example, at the entrance of a residential complex.
Using these system diagrams, it is possible to call one of the PLANUX
KITS from the main entrance equipped with Art. 4660C.
In this configuration it is necessary to program the buttons of Art.
4660C on Art. 4875KC or 4876KC as described in the following

Programming Art. 4660KC

Fig. 1
Fig. 1A
1 On the terminal block of module Art. 4660KC, connect the power
supply to ~ ~ and set the switch to its programming position (red)
(see figure 1A).
Connect the terminal block to module Art. 4660 assembled as
indicated above.
N.B.: For connection between the terminal block and module Art.
4660 during the programming stage it is possible to use the cable
Art. 3309, available as an optional accessory (figure 2).
2 Set the Dip switch located on the back of the audio-video module
with the same code assigned to the door-entry phone or monitor
according to the correspondence described in the programming
table on Page 31.
MT KIT 14 38
procedure, and the brackets 6114KC with the corresponding code
(see table on Page 31).
For further information on the integration of PLANUX KITS into
Simplebus systems and the programming of the main port (Art.
4660C), refer to the Simplebus Color catalogue (Catalogue no. 102),
the technical manual MT/SBC/01 and the technical sheet FT/SBC/04
or FT/SBC/01.

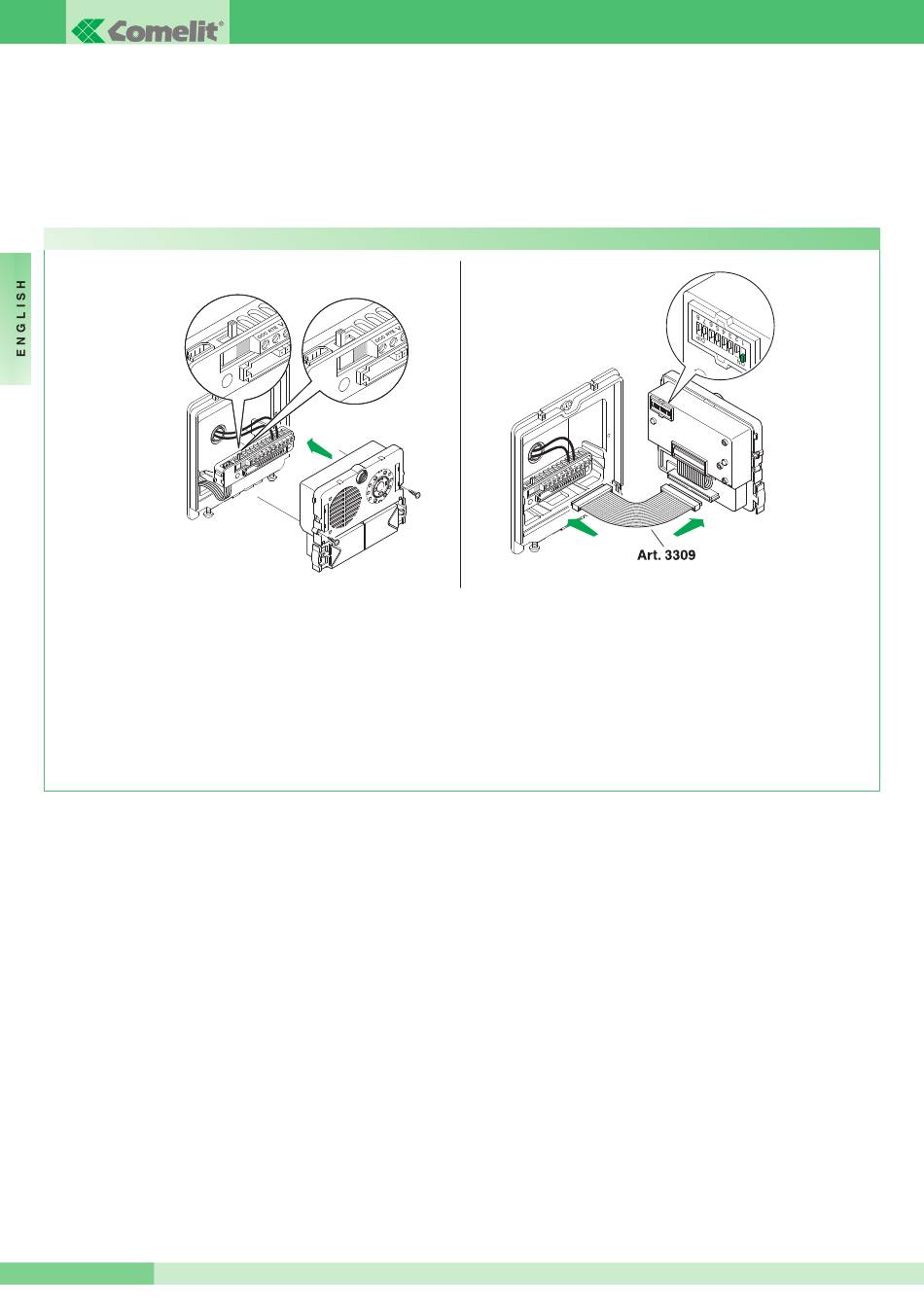

Fig. 2
Fig. 1B
3 Press the button to be associated with the door-entry phone call
or monitor. A tone signal confirms programming.
4 At the end of programming, set the switch to standby (white)
(figure 1B).
